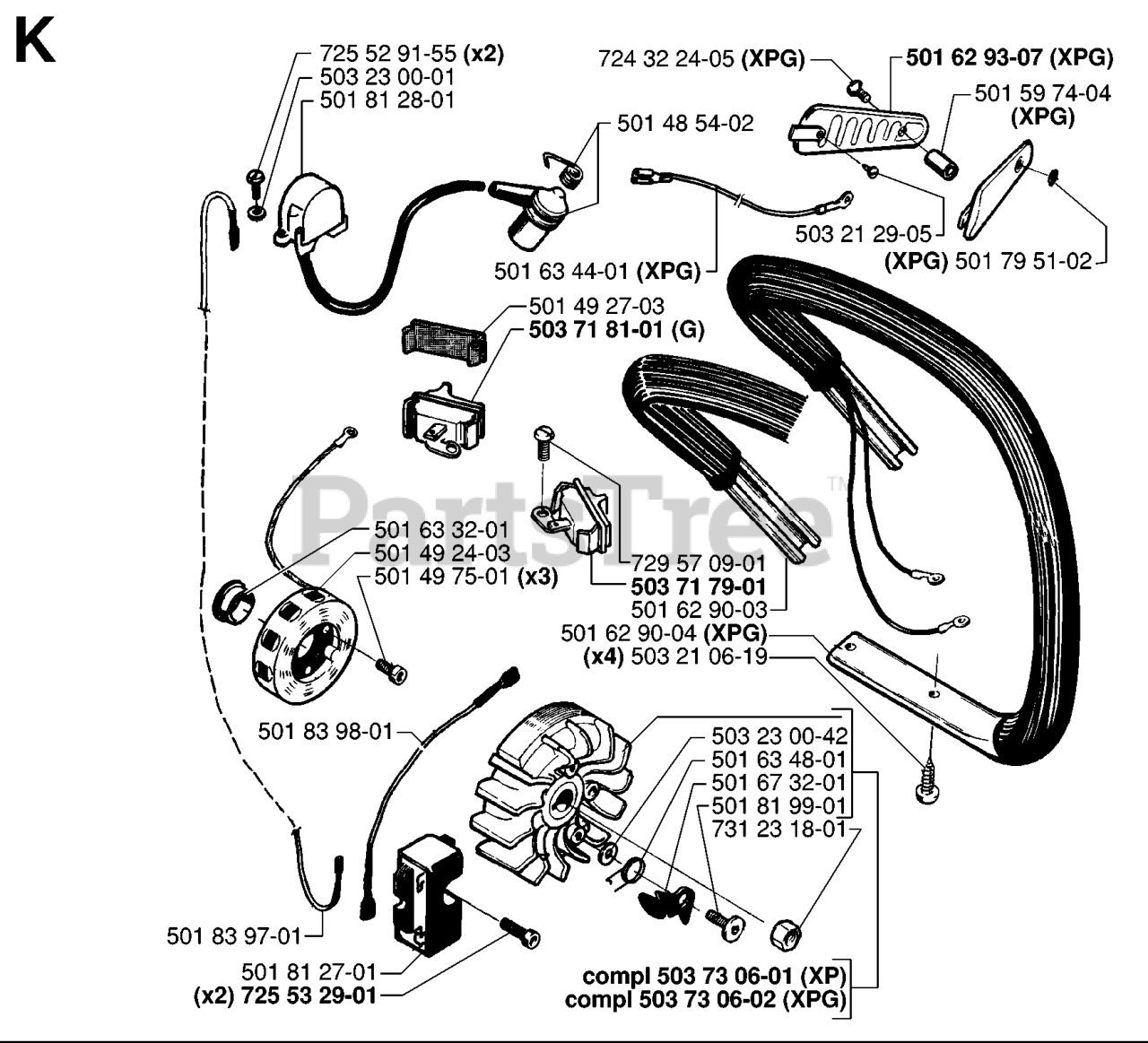

242 - Husqvarna Chainsaw (SN: 19981800001 - 20013500000) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title
501 62 93-07

Husqvarna 501629307

HANDLE INSERT ASSY

Note: XPG

$

$

Not available

501 81 27-01

Husqvarna 501812701

ELECTRONIC BOX

$

$

Not available

501 59 74-04

Husqvarna 501597404

SPACER

Note: XPG

$

$

Not available

501 49 27-03

$5.99

$

In Stock, Qty 6

0

501 63 32-01

Husqvarna 501633201

GUIDE SLEEVE

$

$

Not available

503 71 79-01

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, Qty 6

0

501 62 90-03

Husqvarna 501629003

FRONT HANDLE

$

$

Not available

503 73 06-01

Husqvarna 503730601

FLYWHEEL

Note: XP

$

$

Not available

501 81 28-01

Husqvarna 501812801

IGNITION COIL

$90.99

$

Usually ships in 3-10 days

0

501 49 75-01

$

$

Not available

501 63 48-01

$4.99

$

In Stock, Qty 14

0

503 71 81-01

Husqvarna 503718101

SWITCH

Note: G

$17.99

$

In Stock, only 1 left!

0

501 83 97-01

$

$

Not available

503 21 29-05

$

$

Not available

725 53 29-01

$3.49

$

Usually ships in 3-10 days

0

501 62 90-04

Husqvarna 501629004

FRONT HANDLE G

Note: XPG

$

$

Not available

501 63 44-01

Husqvarna 501634401

CABLE

Note: XPG

$

$

Not available

503 21 06-19

$

$

Not available

501 81 99-01

Husqvarna 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 6

0

501 49 24-03

$

$

Not available

501 79 51-02

Husqvarna 501795102

WASHER

Note: XPG

$3.49

$

In Stock, only 1 left!

0

501 67 32-01

$8.99

$

Usually ships in 3-10 days

0

503 23 00-01

Husqvarna 503230001

WASHER 4.2X9

$4.99

$

In Stock, only 2 left!

0

501 83 98-01

Husqvarna 501839801

SHORTING LEAD

$13.99

$

In Stock, only 1 left!

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 3 left!

0

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

725 52 91-55

Husqvarna 725529155

SCREW MC6S 4X12

$3.49

$

Usually ships in 3-10 days

0

503 73 06-02

Husqvarna 503730602

FLYWHEEL

Note: XPG

$

$

Not available

724 32 24-05

Husqvarna 724322405

SCREW 3X10

Note: XPG

$4.99

$

In Stock, Qty 5

0

503 23 00-42

$6.49

$

In Stock, only 2 left!

0

729 57 09-01

$

$

Not available
