242 - Husqvarna Chainsaw (SN: 19900100001 - 19941400000) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

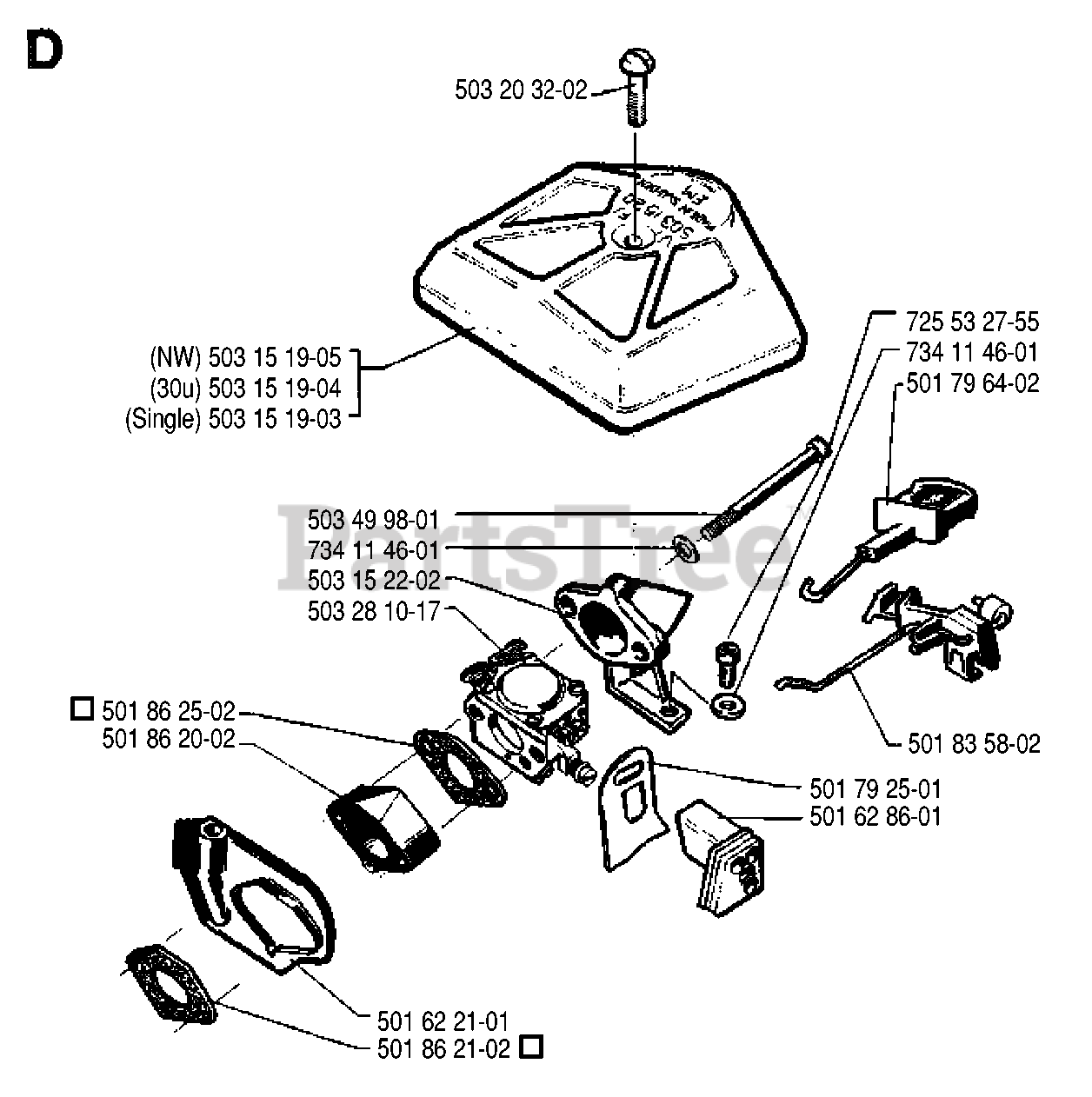

CARBURETOR & AIR FILTER Parts Diagram

  • Title
503 49 98-01

Husqvarna 503499801

SCREW
(Superseded to 503496903)

$

$

Not available

501 86 21-02

$

$

Not available

501 79 25-01

Husqvarna 501792501

HEAT GUARD

$

$

Not available

501 62 21-01

Husqvarna 501622101

SEAL COLLAR

$

$

Not available

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

501 79 64-02

Husqvarna 501796402

CHOKE CONTROL

$

$

Not available

503 28 10-17

Husqvarna 503281017

CARBURETOR CPL
(Superseded to 503281019)

$198.48

$

Usually ships in 3-10 days

0

501 86 25-02

$

$

Not available

501 62 86-01

$

$

Not available

503 20 32-02

Husqvarna 503203202

SCREW
(Superseded to 503203219)

$

$

Not available

503 15 19-04

Husqvarna 503151904

AIRFILTER CPL
(Superseded to 503151906)

Note: 30U

$

$

Not available

503 15 19-05

Husqvarna 503151905

AIR FILTER

Note: NW

$40.99

$

Usually ships in 3-10 days

0

503 15 22-02

Husqvarna 503152202

FILTER HOLDER

$

$

Not available

501 83 58-02

Husqvarna 501835802

THROTTLE ROD

$

$

Not available

501 86 20-02

$

$

Not available

725 53 27-55

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, only 3 left!

0

503 15 19-03

Husqvarna 503151903

AIR FILTER

Note: SINGLE

$

$

Not available
