242 - Husqvarna Chainsaw (1994-04) Chain Brake Assembly Parts Diagram

Chainsaw

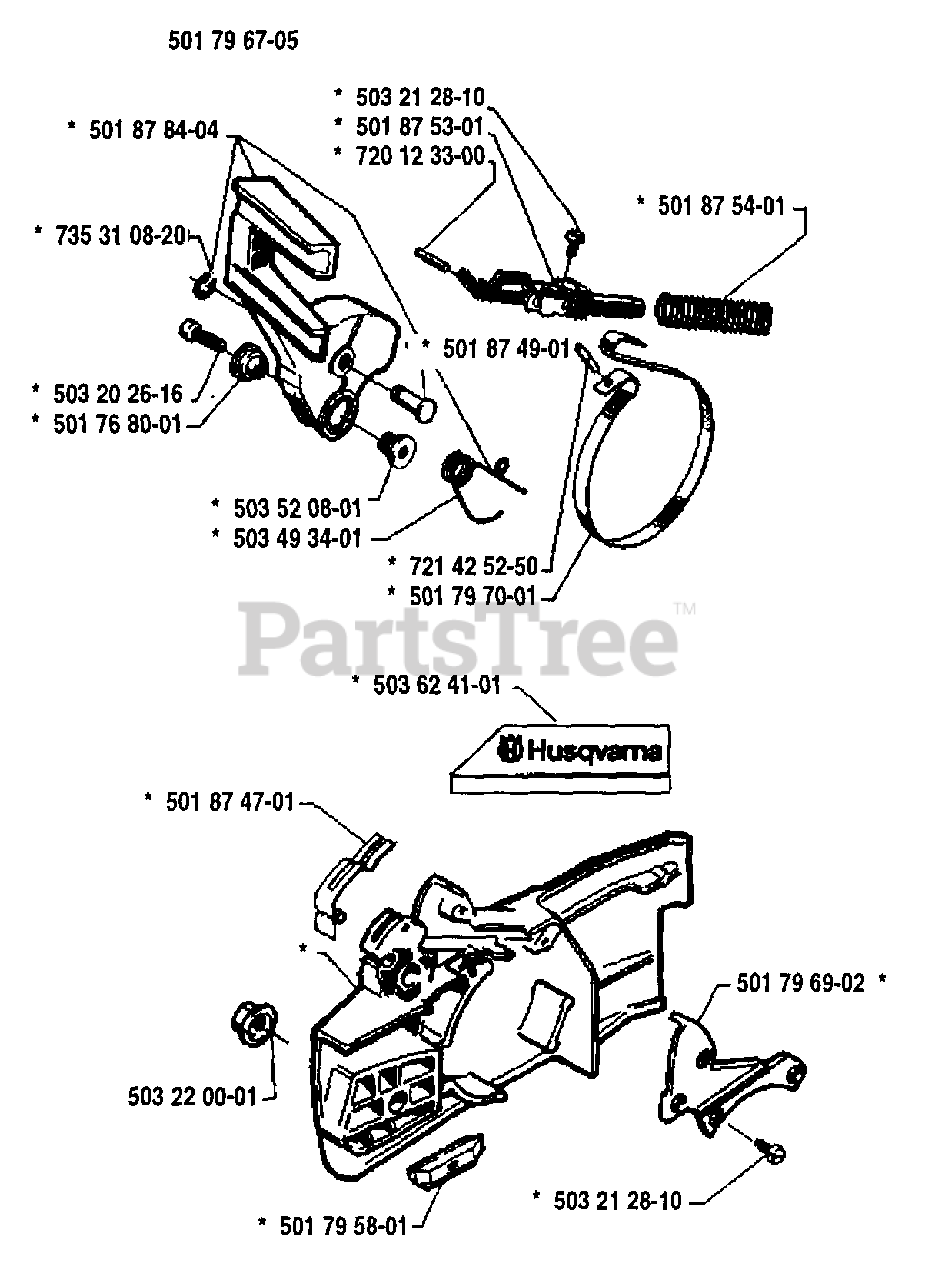

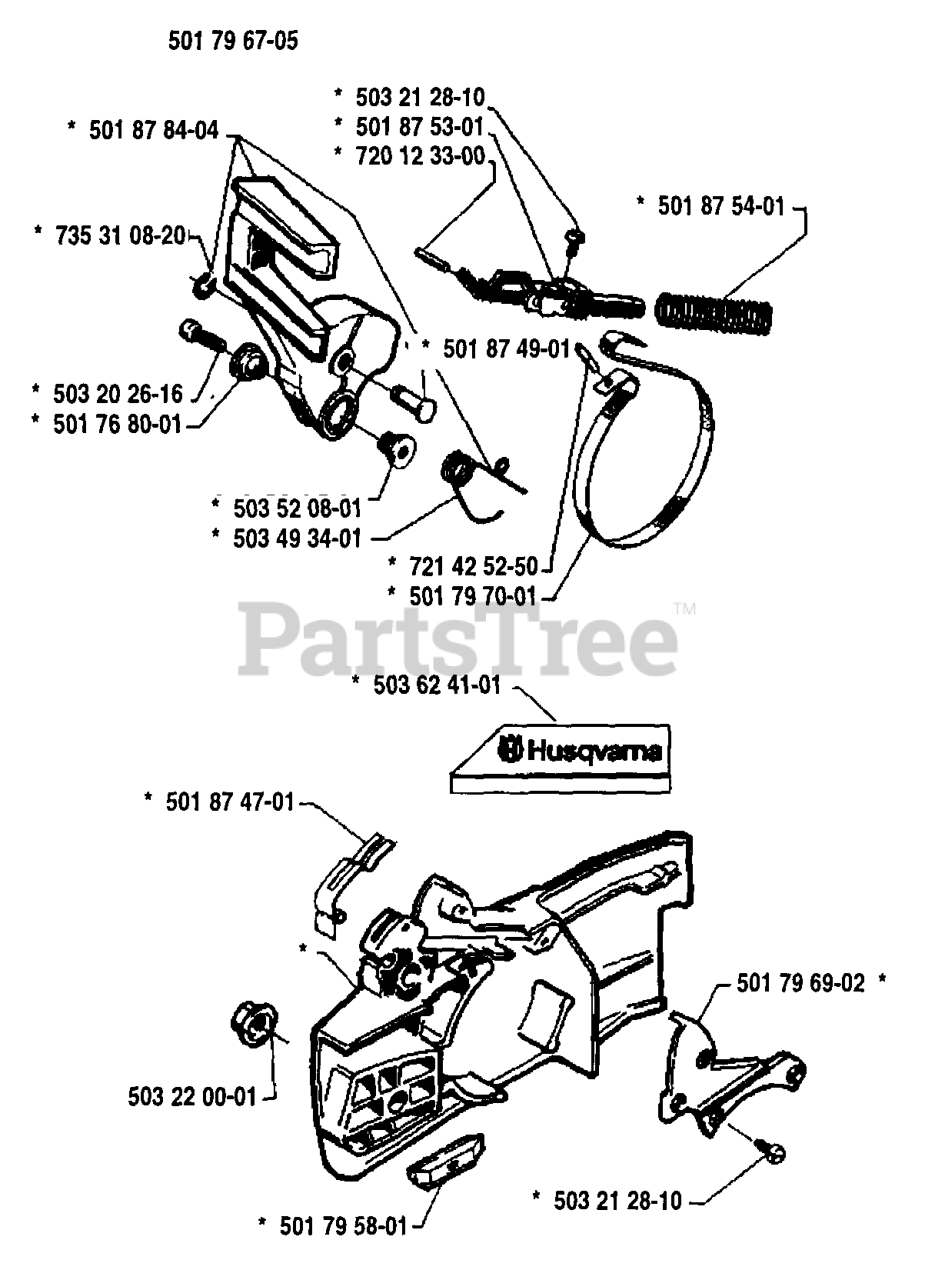

Chain Brake Assembly Parts Diagram

  • Title

501796705

Husqvarna 501796705

CHAINBRAKE
(Superseded to 501796708)

$

$

Not available

501878404

Husqvarna 501878404

HANDGUARD
(Superseded to 503892701)

$39.99

$

Usually ships in 3-10 days

0

735310820

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

503212810

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 12

0

501875301

Husqvarna 501875301

KNEE-JOINT

$26.99

$

In Stock, only 1 left!

0

720123300

Husqvarna 720123300

PIN 3X10

$3.49

$

In Stock, only 4 left!

0

503202616

Husqvarna 503202616

SCREW

$3.49

$

In Stock, only 2 left!

0

501768001

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 6

0

501874901

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

Usually ships in 3-10 days

0

503520801

Husqvarna 503520801

PIVOT SLEEVE L

$11.99

$

Usually ships in 3-10 days

0

503493401

Husqvarna 503493401

LOCK SPRING

$

$

Not available

721425250

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

501797001

Husqvarna 501797001

BRAKE BAND

$

$

Not available

503624101

Husqvarna 503624101

DECAL CLUTCH COVER
(Superseded to 503768101)

$4.99

$

In Stock, only 2 left!

0

501874701

Husqvarna 501874701

SPRING

$4.99

$

In Stock, only 3 left!

0

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

501795801

Husqvarna 501795801

GUIDE

$8.99

$

In Stock, only 1 left!

0

503212810

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 12

0

501796902

Husqvarna 501796902

COVER

$

$

Not available

501875401

Husqvarna 501875401

SPRING

$

$

Not available
