242 - Husqvarna Chainsaw (1990-01) Piston/Cylinder Parts Diagram

Chainsaw

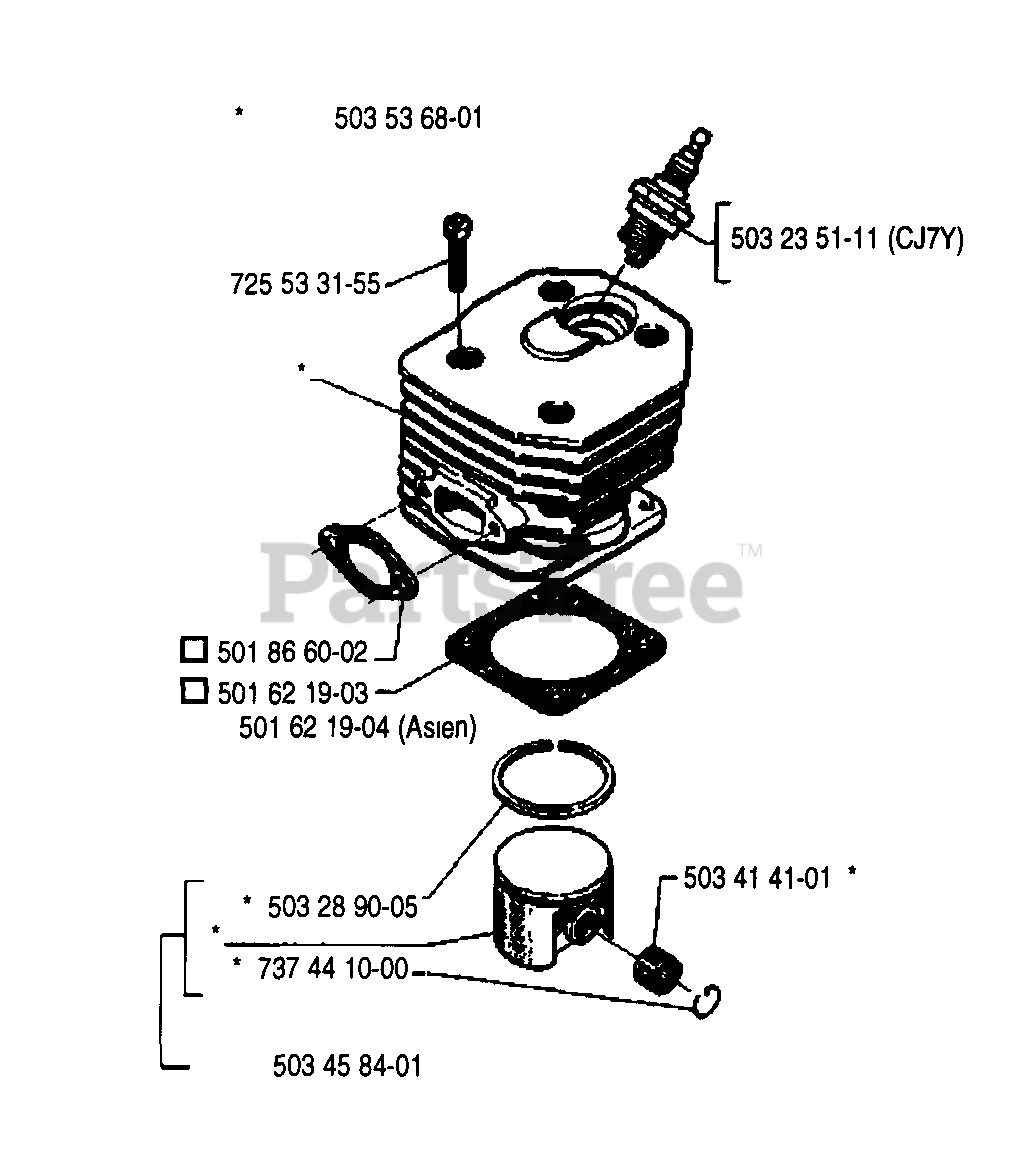

Piston/Cylinder Parts Diagram

  • Title
503536801

Husqvarna 503536801

CYLINDER
(Superseded to 503536802)

$

$

Not available

503235111

Husqvarna 503235111

BPMR7A NGK SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

725533155

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

501866002

Husqvarna 501866002

GASKET
(Superseded to 501866003)

$5.99

$

Usually ships in 3-10 days

0

501621903

Husqvarna 501621903

GASKET
(Superseded to 503729901)

$4.99

$

Usually ships in 3-10 days

0

501621904

Husqvarna 501621904

GASKET
(Superseded to 503729902)

$

$

Not available

503414101

Husqvarna 503414101

SUPPORT BUSHING

$24.99

$

Usually ships in 3-10 days

0

503289005

Husqvarna 503289005

PISTON RING

$31.99

$

In Stock, only 3 left!

0

737441000

Husqvarna 737441000

LOCKING RING

$6.49

$

In Stock, only 1 left!

0

503458401

Husqvarna 503458401

PISTON CPL
(Superseded to 503513201)

$

$

Not available
