242 - Husqvarna Chainsaw (1987-06) Starter Assembly Parts Diagram

Chainsaw

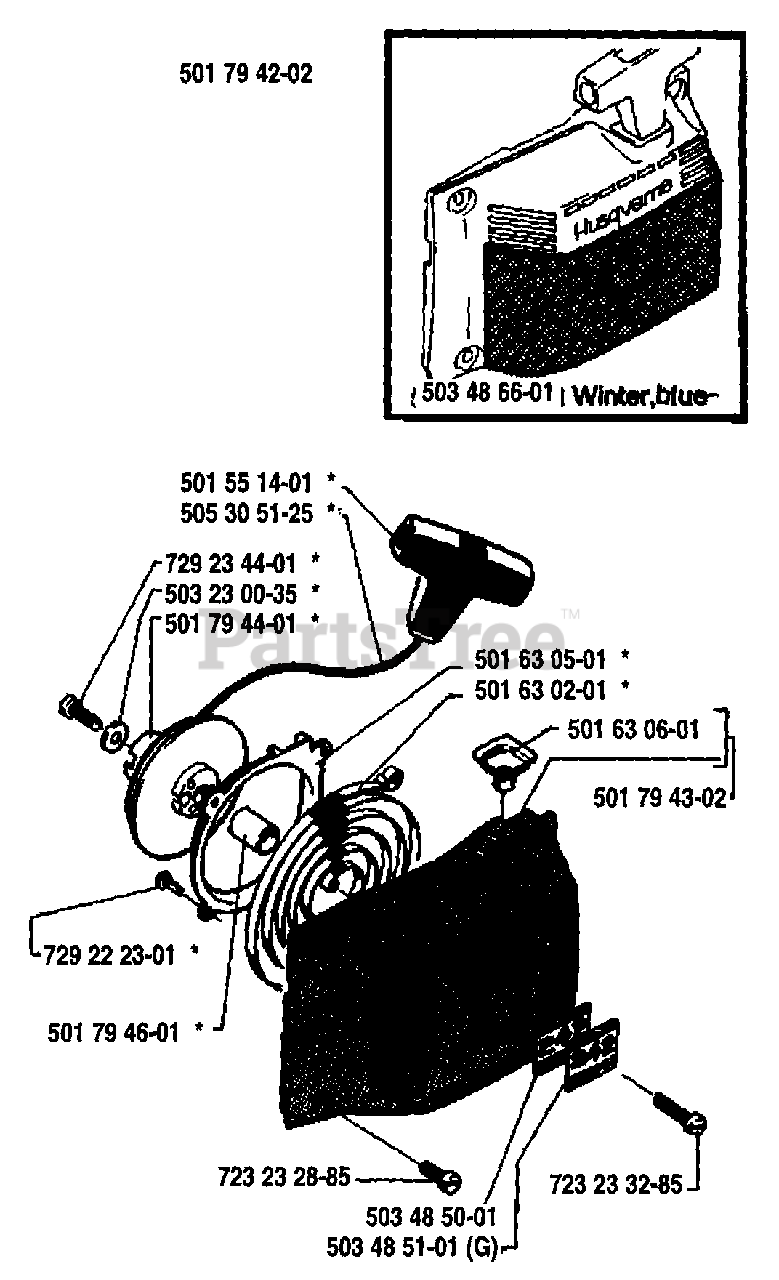

Starter Assembly Parts Diagram

  • Title
501794202

Husqvarna 501794202

STARTER ASSY
(Superseded to 501794203)

$

$

Not available

501551401

Husqvarna 501551401

STARTING HANDLE
(Superseded to 503543901)

$11.99

$

In Stock, only 4 left!

0

503486601

Husqvarna 503486601

COOLING AIR SCREEN
(Superseded to 503486602)

$

$

Not available

505305125

Husqvarna 505305125

STARTER ROPE

$9.49

$

In Stock, Qty 20+

0

729234401

Husqvarna 729234401

SCREW CSK B8X16
(Superseded to 503212716)

$6.49

$

In Stock, Qty 20+

0

503230035

Husqvarna 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 14

0

501794401

Husqvarna 501794401

STARTER PULLEY

$17.99

$

Usually ships in 3-10 days

0

501630501

Husqvarna 501630501

GUARD RING

$

$

Not available

501630201

Husqvarna 501630201

RECOIL SPRING

$31.99

$

In Stock, only 1 left!

0

501630601

$10.99

$

In Stock, only 2 left!

0

501794302

Husqvarna 501794302

STARTER HOUSING

$

$

Not available

729222301

Husqvarna 729222301

SCREW CSK B4X8

$

$

Not available

501794601

Husqvarna 501794601

BEARING SLEEVE NLA

$

$

Not available

723232885

Husqvarna 723232885

SCREW MSCS 5X14
(Superseded to 724132855)

$

$

Not available

723233285

Husqvarna 723233285

SCREW MSCS 5X22
(Superseded to 725533255)

$

$

Not available

503485001

Husqvarna 503485001

DECAL
(Superseded to 503667001)

$

$

Not available

$

$

Currently unavailable
