242-651-000 - MTD Chipper Shredder (1992) 8 H.P. Briggs & Stratton Engine Parts Diagram

Chipper Shredder

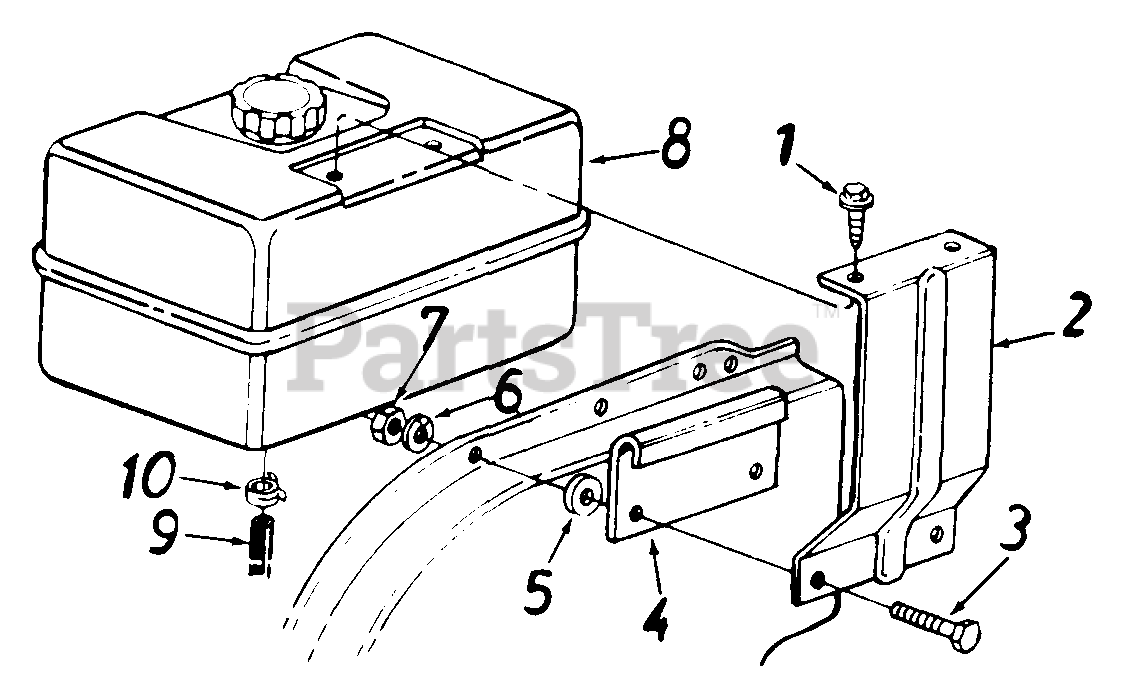

8 H.P. Briggs & Stratton Engine Parts Diagram

  • Title

1

MTD 710-0895

Hex Hd. Hi-Low Scr. 1/4 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

2

MTD 781-0497

Fuel Tank Mtg. Brkt.

Variations

MTD 781-0497-0483

BRACKET-TANK MTG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0497-0637

BRACKET-TANK MTG - POWDER BLACK (0637)

$

$

Not available

MTD 781-0497-0638

BRACKET-TANK MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

3

MTD 710-3038

Hex Bolt 5/16-18 x .88" Lg (Gr. 5)

$4.99

$

In Stock, only 3 left!

0

4

MTD 781-0498

Fuel Tank Support Brkt.
(Superseded to 781-0498-0638)

Variations

MTD 781-0498-0483

BRACKET-TANK SUPPO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0498-0637

BRACKET-TANK SUPPO - POWDER BLACK (0637)

$

$

Not available

MTD 781-0498-0638

BRACKET-TANK SUPPO - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

5

MTD 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

6

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

8

MTD 751-0570

Fuel Tank Ass'y.
(Superseded to BS-691993)

$166.99

$

In Stock, Qty 10

0

9

MTD 751-0535-15

Fuel Line - 15" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

10

MTD 726-0205

Hose Clamp 1/2" O.D.

$3.99

$

In Stock, Qty 18

0
