2410 (31AS62N2711) - Troy-Bilt Storm 24" Snow Thrower (2015) Standard Chute Parts Diagram

Storm 24" Snow Thrower

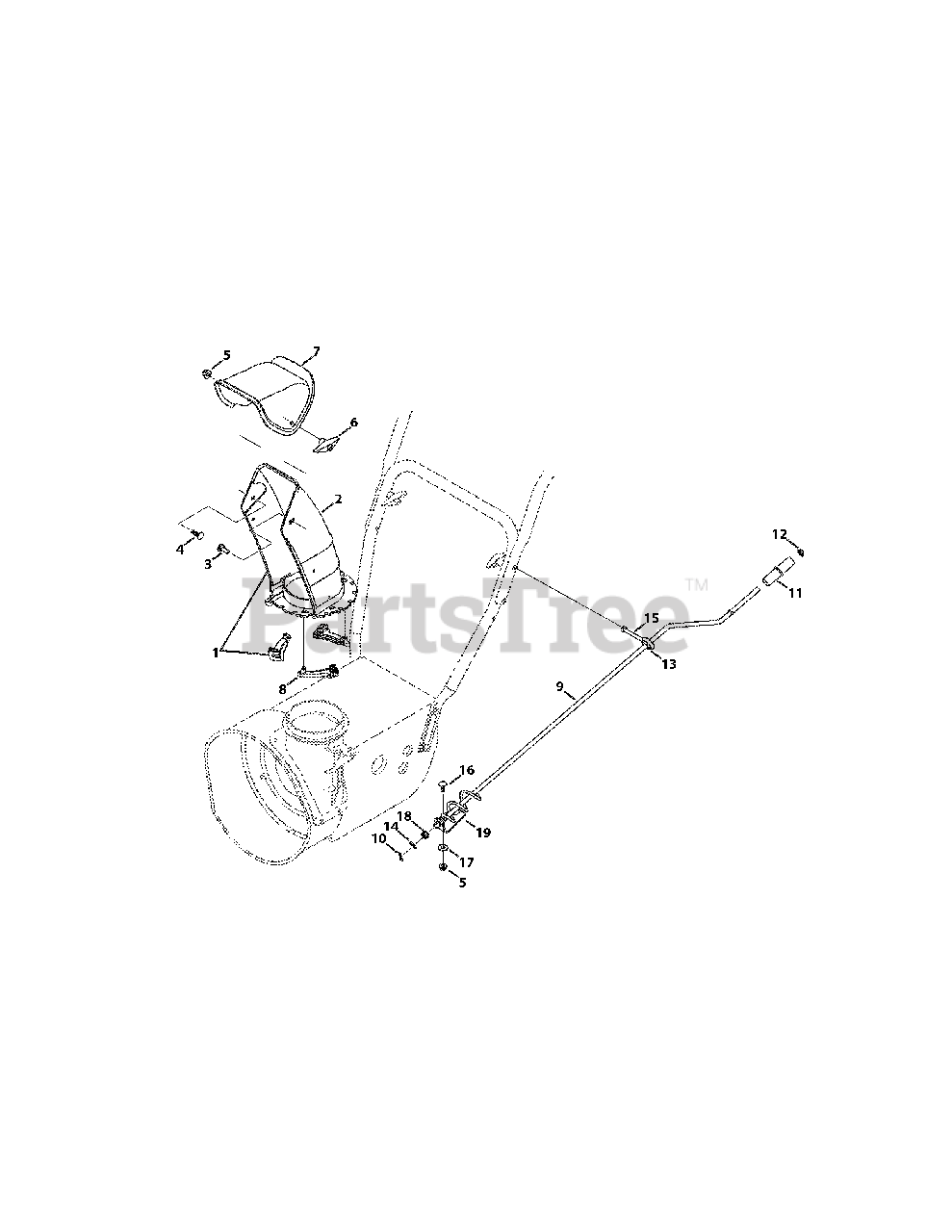

Standard Chute Parts Diagram

  • Title

1

Troy-Bilt 631-04131B

Lower Chute Assembly

$37.99

$

In Stock, Qty 14

0

2

Troy-Bilt 731-04912B

Lower Chute

$38.99

$

In Stock, Qty 11

0

3

Troy-Bilt 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 13

0

4

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 920-0284

Wing Knob
(Superseded to 720-0284)

$

$

Not available

7

Troy-Bilt 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

8

Troy-Bilt 731-04869A

Flange Keeper

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 684-04104-0637

Chute Crank

$62.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 720-0201A

Crank Knob

$10.99

$

In Stock, Qty 5

0

12

Troy-Bilt 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

13

Troy-Bilt 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 747-04263

Eye Bolt

$9.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

18

Troy-Bilt 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 784-5647-0637

Chute Crank Bracket

$14.99

$

In Stock, Qty 5

0
