241-685-190 - White Outdoor Walk-Behind Vacuum, 5hp (1991) Vacuum Assembly Parts Diagram

Walk-Behind Vacuum, 5hp

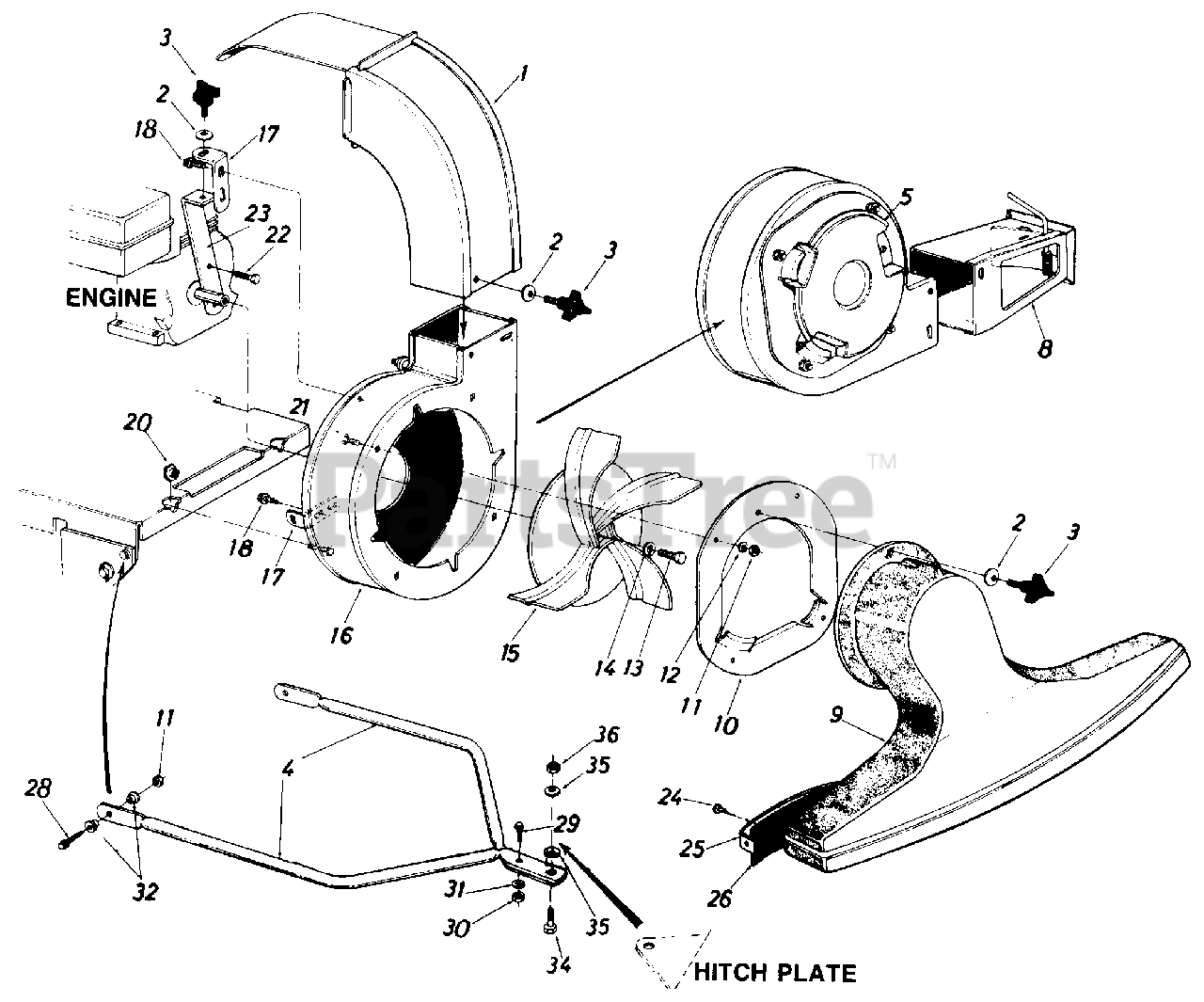

Vacuum Assembly Parts Diagram

  • Title

1

White Outdoor 14532

Air Duct Assembly

Variations

White Outdoor 14532-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 14532-0637

No Longer Available DUCT-AIR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14532-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 14532-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

2

White Outdoor 736-0242

Belleville Wash. .34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 720-0170

3-Arm Thumb Scr. 5/16-18 x .75" Lg.

$11.99

$

In Stock, only 2 left!

0

4

White Outdoor 749-0501

Tow Bar Half

Variations

White Outdoor 749-0501-0637

No Longer Available TOW BAR-HALF - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 731-0608

Impeller Guard

$

$

Not available

8

White Outdoor 14479

Directional Discharge Ass'y.

Variations

White Outdoor 14479-0483

DISCHARGE ASSY - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 14479-0498

DISCHARGE ASSY - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 14479-0637

DISCHARGE ASSEMBLY BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14479-0638

DIRECTIONAL DISCHARGE ASSY RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 14479-0665

DISCHARGE ASSEMBLY BLACK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 14479-0691

DIRECTIONAL DISCHARGE ASSY - BLACK JACK (0691)

$

$

Not available

White Outdoor 14479-0662

DISCHARGE ASSY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 14479-0709

DISCHARGE ASSY - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

9

White Outdoor 14562B

Nozzle Ass'y. (Black)

$

$

Not available

White Outdoor 731-1123

Nozzle Ass'y. (Beige)

$

$

Not available

10

White Outdoor 14563

Nozzle Plate Ass'y.
(Superseded to 14563A)

$

$

Not available

11

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

12

White Outdoor 736-0119

L-Wash. 5116" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

14

White Outdoor 736-0217

L-Wash. 318" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

15

White Outdoor 14536

Air Vane Plate Ass'y.

Note: (675 and 677)

$

$

Not available

White Outdoor 14557A

Air Vane Plate Ass'y. w/Pulley

Note: (685, 689 and 687)

Variations

White Outdoor 14557A-0637

PLATE ASSY-VANE - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 14496A

Blower Housing Complete
(Superseded to 14496B)

Variations

White Outdoor 14496A-0483

HOUSING ASSY-BLOWER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 14496A-0498

HOUSING ASSY-BLOWER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 14496A-0637

HOUSING ASSY-BLOWER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14496A-0638

HOUSING ASSY-BLOWER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 14496A-0662

HOUSING ASSY-BLOWER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 14496A-0665

HOUSING ASSY-BLOWER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 14496A-0691

HOUSING ASSY-BLOWER - BLACK JACK (0691)

$

$

Not available

White Outdoor 14496A-0709

HOUSING ASSY-BLOWER - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

17

White Outdoor 14541

Right Angle Bracket
(Superseded to 14541-0637)

Variations

White Outdoor 14541-0637

BRACKET-RIGHT ANGLE - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 710-0600

Hex Self-Tap Scr. 5/16-18 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

20

White Outdoor 711-0758

Hex Shoulder Nut .50 I.D.
(Superseded to 911-0758)

$11.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg. *
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0627

Hex Locking Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 14539

Housing-Engine Brace Ass'y.
(Superseded to 14539-0637)

Variations

White Outdoor 14539-0637

HOUSING-ENG BRACE - POWDER BLACK (0637)

$

$

Not available

$

$

24

White Outdoor 728-0173

Pop Rivet
(Superseded to 928-0173)

$4.49

$

In Stock, only 4 left!

0

25

White Outdoor 14569

Wiper Retaining Strip

Variations

White Outdoor 14569-0637

No Longer Available WIPER RETAIN STRIP - POWDER BLACK (0637)

$

$

Not available

$

$

26

White Outdoor 735-0214

Nozzle Wiper

$34.99

$

Usually ships in 3-6 days

0

28

White Outdoor 710-0602

Hex Bolt 5/16-18 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 X .75" Lg. *
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0329

L-Wash. 114" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

White Outdoor 748-0234

Shoulder Spacertt

$4.49

$

Usually ships in 3-6 days

0

34

White Outdoor 738-0143

Shld. Bolt .496 Dia.

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 736-0219

Belleville Wash. .39" I.D. x 1.12" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

36

White Outdoor 712-0181

Hex Jam L-Nut 3/8-26 Thd.

$4.49

$

In Stock, only 3 left!

0
