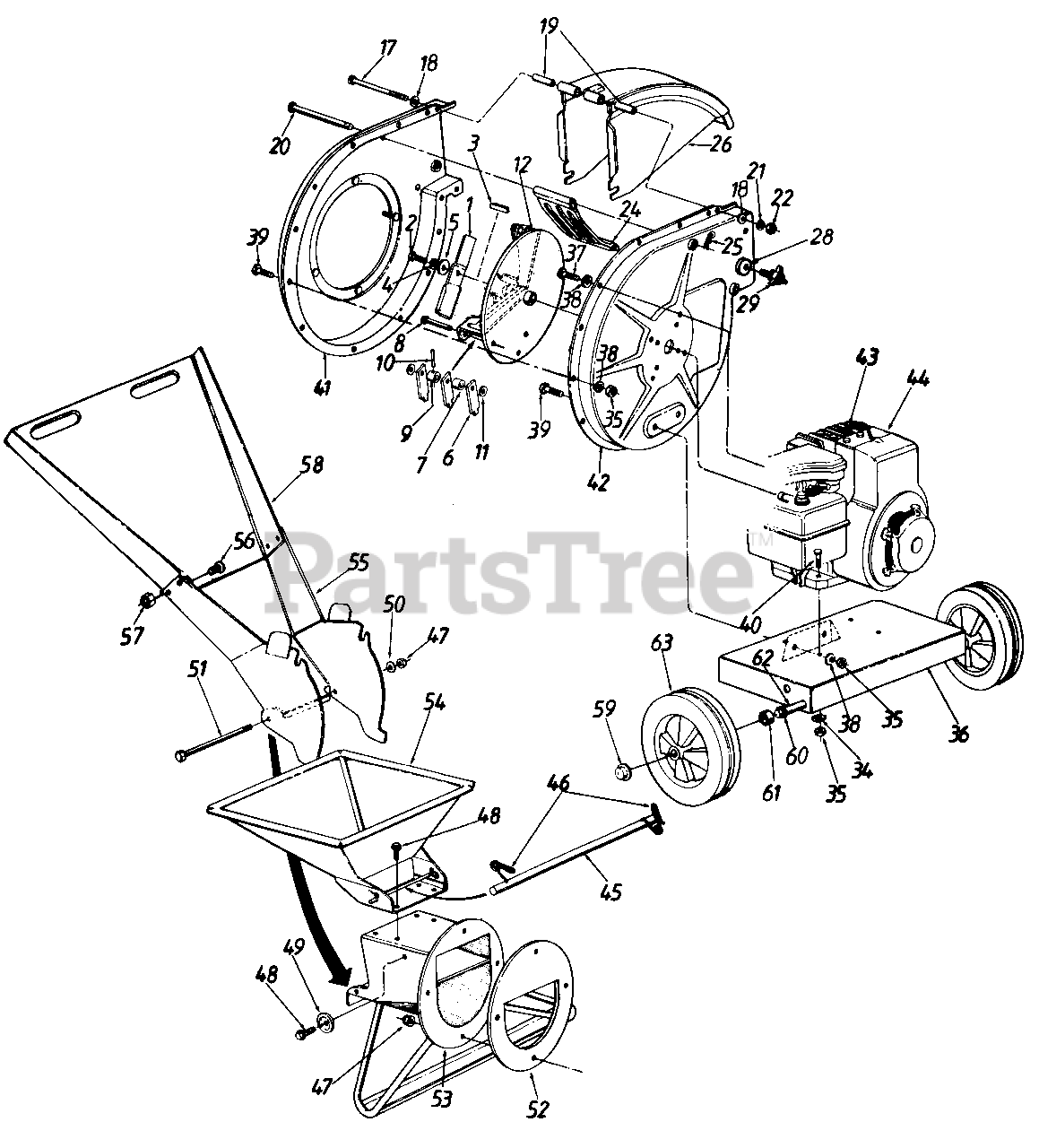

241-640-000 - MTD Chipper Shredder (1991) Parts Parts Diagram

Chipper Shredder

Parts Parts Diagram

  • Title

1

MTD 13431

Blade
(Superseded to 13431-0637)

Variations

MTD 13431-0637

Shredder Blade, Black - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0818

Hex Patch Bolt 3/8-24 x 2.0" Lg. (Grade 8)

$6.99

$

In Stock, only 1 left!

0

3

MTD 714-0114

Sq. Key 1/4 x 2.0" Lg.
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

4

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 6

0

5

MTD 736-0247

Fl-Wash. .406" I.D. x 1.25" O.D. Hdn.

$9.49

$

In Stock, Qty 12

0

6

MTD 11459B

Flail
(Superseded to 91459B)

$21.99

$

In Stock, Qty 20+

0

7

MTD 711-0564

Flail Spacer
(Superseded to 911-0564)

$16.99

$

In Stock, only 2 left!

0

8

MTD 711-0833A

Clevis Pin .496" Dia.
(Superseded to 911-0833B)

$12.99

$

In Stock, only 4 left!

0

9

MTD 711-0834

Flail Spacer w/.160" Dia. Hole
(Superseded to 911-0834A)

$

$

Not available

10

MTD 715-0249

Spring Roll Pin 1.12" Lg.
(Superseded to 915-0249)

$6.99

$

In Stock, Qty 20+

0

11

MTD 736-0192

Fl-Wash. .531" I.D. x .94" O.D.

$4.49

$

In Stock, Qty 16

0

12

MTD 781-0485

Impeller Ass'y.

$

$

Not available

17

MTD 710-1058

Hex Bolt 1/4-20 x 4.0" Lg.

$5.99

$

Usually ships in 3-6 days

0

18

MTD 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 750-0793

Chute Hinge Spacer 1.66" Lg.
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 12

0

20

MTD 711-0835

Clevis Pin .5" Dia. x 4.62" Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

21

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

22

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

24

MTD 781-0457

Shredder Screen
(Superseded to 781-0457-0637)

Variations

MTD 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 10

0

$41.99

$

In Stock, Qty 10

0

25

MTD 714-0145

Internal Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

26

MTD 781-0480

Chute Deflector Ass'y.
(Superseded to 681-0094A)

Variations

MTD 781-0480-0480

CHUTE-DISCHARGE - BRILLIANT GREEN (0480)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0662

CHUTE-DISCHARGE - OYSTER GRAY (0662)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0480-0686

No Longer Available DEFLECTOR - SIMPLICITY ORANGE (0686)

$

$

Not available

$135.99

$

Usually ships in 3-6 days

0

28

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

29

MTD 720-0170

Hand Knob

$11.99

$

In Stock, only 2 left!

0

34

MTD 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

35

MTD 712-3010

Hex Nut 5/16-18 Thd. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

36

MTD 781-0510

N/638 Shredder Frame
(Superseded to 681-0184C)

$102.99

$

Usually ships in 3-6 days

0

37

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.*
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

41

MTD 781-0473

Flail Housing Ass'y.-L.H.

Variations

MTD 781-0473-0648

No Longer Available HOUSING AS - TECH GRAY (0648)

$

$

Not available

MTD 781-0473-0483

No Longer Available HOUSING AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0473-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0473-0629

No Longer Available HOUSING AS - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0473-0638

No Longer Available HOUSING AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0473-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0473-0665

No Longer Available HOUSING AS - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

MTD 781-0472

Flail Housing Ass'y.-R.H.

$

$

Currently unavailable

43

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

44

Engine

$

$

Not available

45

MTD 747-0531A

Release Bar

$

$

Not available

46

MTD 732-0546

Torsion Spring 1.06" Lg.
(Superseded to 932-0546)

$4.99

$

Usually ships in 3-6 days

0

47

MTD 712-0429

Elastic Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

49

MTD 11480

Stop Washer

$

$

Not available

50

MTD 736-0264

Fl-Wash. 5/16" 1 .D.

$6.99

$

In Stock, only 2 left!

0

51

MTD 710-0542

Hex Bolt 5/16-18 x 8.38" Lg.

$

$

Not available

52

MTD 781-0487A

Back-Up Plate

$

$

Not available

53

MTD 16522A

Inlet Guide Ass'y.

$

$

Not available

54

MTD 11481B

HopperAss'y.

Variations

MTD 11481B-0483

No Longer Available HOPPER ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 11481B-0629

No Longer Available HOPPER ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 11481B-0638

No Longer Available HOPPER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 11481B-0662

No Longer Available HOPPER ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 11481B-0665

No Longer Available HOPPER ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

55

MTD 781-0509

Lower Leaf Ramp Section

Variations

MTD 781-0509-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0509-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0509-0637

No Longer Available RAMP ASM- - POWDER BLACK (0637)

$

$

Not available

MTD 781-0509-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0509-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 781-0509-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

56

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5"*

$4.49

$

Usually ships in 3-6 days

0

57

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

58

MTD 11461B

N/638 Upper Leaf Ramp Section

Variations

MTD 11461B-0483

No Longer Available RAMP SECTI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 11461B-0498

No Longer Available RAMP SECTI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 11461B-0629

No Longer Available RAMP SECTI - SILVER FLAKE (0629)

$

$

Not available

MTD 11461B-0638

No Longer Available RAMP SECTI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 11461B-0662

No Longer Available RAMP SECTI - OYSTER GRAY (0662)

$

$

Not available

$

$

59

MTD 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

In Stock, Qty 5

0

60

MTD 736-0187

Fl-Wash. .64" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

61

MTD 750-0786

Spacer .64" I.D. x .38" Lg.
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

62

MTD 738-0814

Shredder Axle

$44.99

$

In Stock, only 1 left!

0

63

MTD 734-1603

Wheel Ass'y. Comp.

$

$

Not available

MTD 764-0199A

Bag
(Superseded to 964-04022)

Note: (Not Shown)

$74.99

$

In Stock, only 1 left!

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
