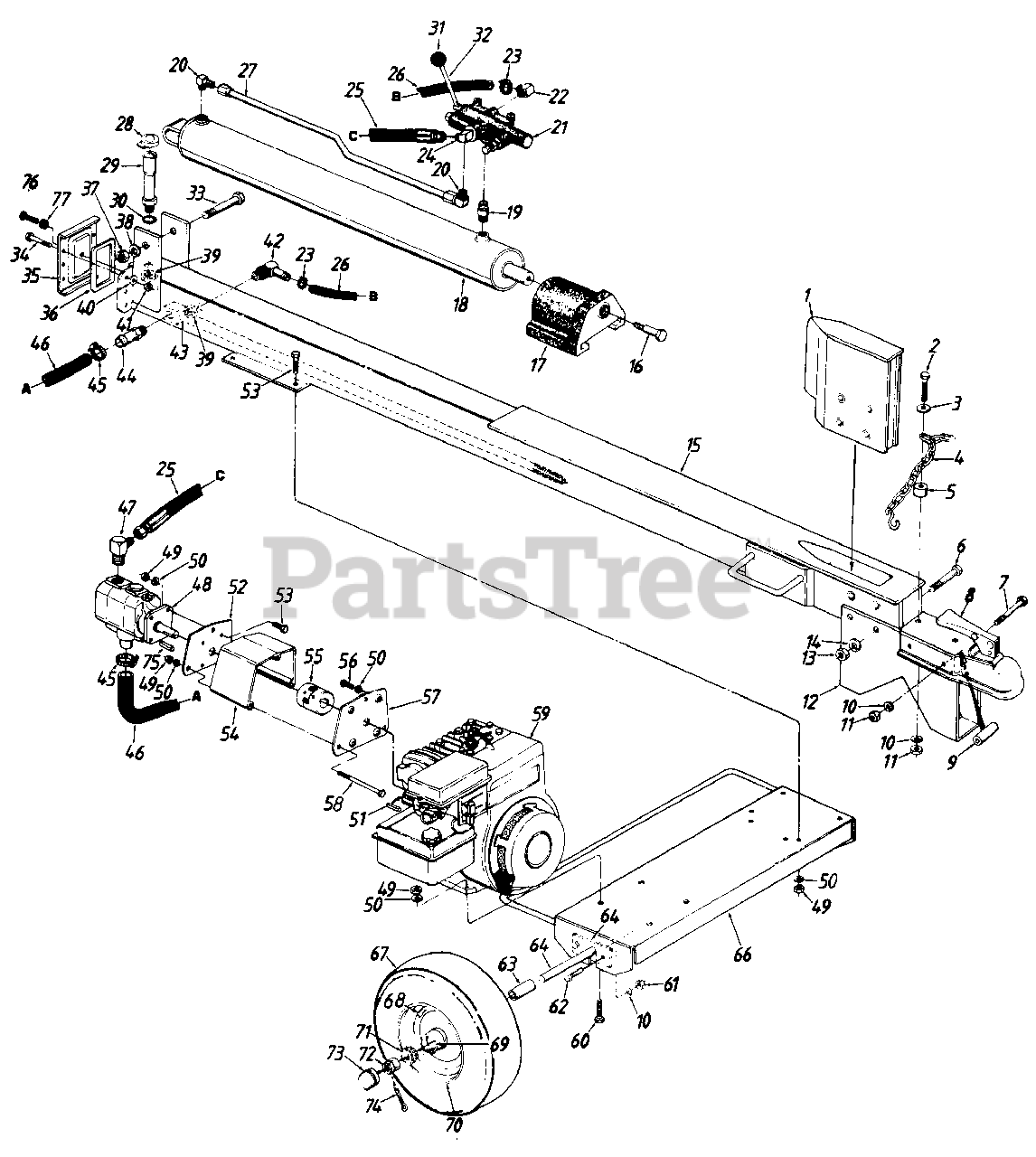

241-610 - MTD Log Splitter (1991) Log Parts Diagram

Log Splitter

Log Parts Diagram

  • Title

1

MTD 781-0038

Wedge Ass'y.

$

$

Not available

2

MTD 710-0520

Hex Bolt 3/8-16 x 1.5" Lg. (Grade 5)

$4.49

$

In Stock, Qty 5

0

3

MTD 736-0262

Fl-Wash. .375' I.D. x.87" O.D.

$3.99

$

In Stock, Qty 20+

0

4

MTD 713-0338

Chain Tow Hitch

$

$

Currently unavailable

5

MTD 750-0507

Spacer .38" I.D. x .625" O.D.
(Superseded to 750-04776)

$5.49

$

In Stock, only 3 left!

0

6

MTD 710-0298

Hex Bolt 5/8-18 x 3.5" Lg.

$9.99

$

In Stock, only 2 left!

0

7

MTD 710-3130

Hex Bolt 3/8-16 x 3.25" Lg. (Grade 8)

$10.99

$

In Stock, only 4 left!

0

8

MTD 727-0289

Tow Hitch Ass'y.

$

$

Not available

9

MTD 750-0261

Spacer 375" I.D. x .625" O.D.

$

$

Not available

10

MTD 736-0169

Wash 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-3017

Hex Nut 3/8-16 Thd. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

12

MTD 781-0311

Beam Stand

$

$

Currently unavailable

13

MTD 712-0337

Hex Nut 5/8-18 Thd.

$4.49

$

In Stock, only 4 left!

0

14

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

15

MTD 781-0343

Oil Tank Ass'y.

$

$

Not available

16

MTD 738-0601

Shld. Bolt .62" Dia. x 475"

$

$

Not available

17

MTD 719-0269B

Pusher Plate

$

$

Not available

18

MTD 717-1346

Hydraulic Cylinder

$

$

Not available

19

MTD 737-0238

Pipe Nipple 1/2" NPT x 2" Lg.

$25.99

$

In Stock, Qty 5

0

20

MTD 737-0192

90ø Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

21

MTD 717-1347

Control Valve

$

$

Not available

22

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

23

MTD 726-0146

Adjustable Hose Clamp

$

$

Not available

24

MTD 737-0171

90ø Solid Male Adapter

$

$

Not available

25

MTD 727-0430

High Pressure Hydraulic Hose 29.5" Lg.

$

$

Not available

26

MTD 727-0435

Return Hose 3/4" I.D. x 23-l/2" Lg.

$

$

Currently unavailable

27

MTD 727-0307

Metal Pressure Tube

$

$

Not available

28

MTD 745-0174

Cap

$

$

Not available

29

MTD 781-0036

Filler Tube Ass'y.

$

$

Currently unavailable

30

MTD 721-0204

"O"-Ring.92" I.D.

$

$

Not available

31

MTD 720-0231

Ball Knob

$

$

Not available

32

MTD 747-0709

Control Handle

$

$

Not available

33

MTD 710-1036

Hex Bolt 3/4-10 x 4.5" Lg.

$

$

Currently unavailable

34

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

35

MTD 781-0361

Beam End Plate

$

$

Not available

36

MTD 721-0203A

Gasket

$

$

Not available

37

MTD 712-0203

Hex Nut 3/410 Thd.
(Superseded to 712-0301)

$7.99

$

In Stock, only 1 left!

0

38

MTD 736-0364

L-Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

39

MTD 712-0338

Hex Nut 1-1/16-12 Thd.

$

$

Not available

40

MTD 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

41

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

42

MTD 737-0259

90ø Adapter 314" Hose

$

$

Currently unavailable

43

MTD 781-0021

Strainer Tube Ass'y.

$

$

Not available

44

MTD 737-0191

Adapter 1" x 1-1/16-12 Thd.

$

$

Not available

45

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

46

MTD 727-0429

Suction Hose 1" I.D.

$

$

Not available

47

MTD 737-0265

90ø Adapter

$

$

Not available

48

MTD 717-0936

Two Volume Pump
(Superseded to 753-05194)

Note: (Incl. Ref. 75)

$1509.99

$

In Stock, only 1 left!

0

49

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

50

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 714-0122

Sq. Key 3/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

52

MTD 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

MTD 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 2 left!

0

$69.99

$

In Stock, only 2 left!

0

53

MTD 710-0117

Hex Bolt 5/16-24 x 1.0" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

54

MTD 719-0278

Coupling Shield

$72.99

$

Usually ships in 3-6 days

0

55

MTD 717-0891

Flexible Coupling
(Superseded to 917-0891)

$159.99

$

Usually ships in 3-6 days

0

56

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

57

MTD 781-0098

Front Coupling Support Bracket
(Superseded to 781-0098A-0637)

Variations

MTD 781-0098-0637

Bracket, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

58

MTD 710-0363

Hex Bolt 5/16-24 x 4 on Lg.

$

$

Not available

59

Engine

$

$

Not available

60

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

61

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

62

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

63

MTD 750-0442

Spacer .75" I.D. x 1.12" O.D.

$

$

Not available

64

MTD 781-0018

Axle Assembly

$

$

Not available

66

MTD 781-0033B

Engine Frame Ass'y.

$

$

Currently unavailable

67

MTD 734-1016

Wheel Ass'y. Comp.
(Superseded to 634-0186)

Variations

MTD 734-1016-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$363.99

$

Usually ships in 3-6 days

0

MTD 734-1016-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$363.99

$

Usually ships in 3-6 days

0

MTD 734-1016-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

$363.99

$

Usually ships in 3-6 days

0

MTD 734-0872

Tire Only

$169.99

$

Usually ships in 3-6 days

0

68

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

69

MTD 721-0168

Bearing Seal
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 17

0

70

MTD 734-1017

Rim Only
(Superseded to 634-0188)

Variations

MTD 734-1017-0662

Rim Assembly, Gray 3.75 X 8.0 - OYSTER GRAY (0662)

$175.99

$

Usually ships in 3-6 days

0

MTD 734-1017-0674

Rim Assembly, Gray 3.75 X 8.0 - YARDMAN YELLOW (0674)

$175.99

$

Usually ships in 3-6 days

0

MTD 734-1017-0499

RIM ASM-3.75 X 8.0 - CUB BEIGE (0499)

$

$

Not available

$175.99

$

Usually ships in 3-6 days

0

71

MTD 741-0107

Roller Bearing w/Race
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

72

MTD 712-0299

Hex Slotted Nut 3/4-16 Thd.

$

$

Currently unavailable

73

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

74

MTD 714-0162

Cotter Pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

75

MTD 714-3024

Hi-Pro Key 1/8" x 1/2" Lg.

$

$

Not available

76

MTD 710-0604

Hex TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

77

MTD 721-0205

Gasket Washer 5/16" I.D. x 3/4" 0 D

$

$

Not available
