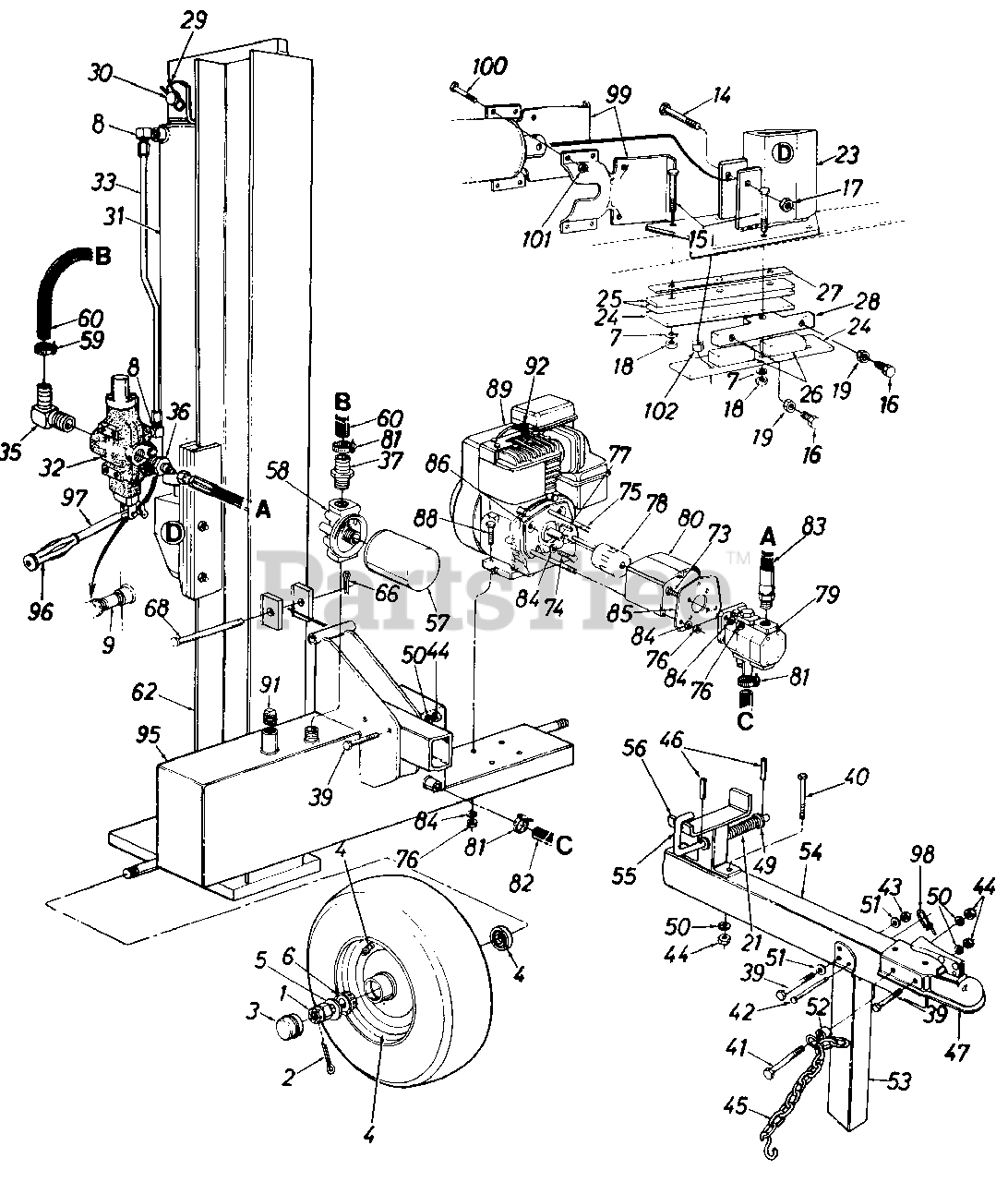

241-521-000 - MTD Log Splitter (1991) Parts Parts Diagram

Log Splitter

Parts Parts Diagram

  • Title

1

MTD 712-0359

Slotted Nut 3/4-16 Thd.

$11.99

$

Usually ships in 3-6 days

0

2

MTD 714-0162

Cotter pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

3

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

4

MTD 734-1016

Wheel Ass'y. Comp.
(Superseded to 634-0186)

Variations

MTD 734-1016-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$363.99

$

Usually ships in 3-6 days

0

MTD 734-1016-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$363.99

$

Usually ships in 3-6 days

0

MTD 734-1016-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

$363.99

$

Usually ships in 3-6 days

0

MTD 734-0872

Tire Only

$169.99

$

Usually ships in 3-6 days

0

MTD 734-1017

Rim Only
(Superseded to 634-0188)

Variations

MTD 734-1017-0662

Rim Assembly, Gray 3.75 X 8.0 - OYSTER GRAY (0662)

$175.99

$

Usually ships in 3-6 days

0

MTD 734-1017-0674

Rim Assembly, Gray 3.75 X 8.0 - YARDMAN YELLOW (0674)

$175.99

$

Usually ships in 3-6 days

0

MTD 734-1017-0499

RIM ASM-3.75 X 8.0 - CUB BEIGE (0499)

$

$

Not available

$175.99

$

Usually ships in 3-6 days

0

MTD 721-0168

Bearing Seal Only
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 17

0

MTD 734-0255

Air Valve Only
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

5

MTD 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

6

MTD 741-0107

Roller Bearing
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

7

MTD 736-0921

L-Wash 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

8

MTD 737-0192

90ø Solid Male Adaptor

$41.99

$

Usually ships in 3-6 days

0

9

MTD 737-0238

Pipe Nipple 1/2 NPT

$25.99

$

In Stock, Qty 6

0

14

MTD 710-1010

Hex Bolt 1/2-20 x 3" Lg. (Grade 8)

$

$

Not available

15

MTD 710-1018

Hex Bolt 1/2-20 x 2.75" Lg. (Grade 8)

$11.99

$

In Stock, Qty 19

0

16

MTD 710-1032

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

17

MTD 712-0239

Hex L-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

18

MTD 712-0333

Hex Nut 1/2-20 Thd.
(Superseded to 912-0333)

$

$

Not available

19

MTD 712-3001

Hex Jam Nut 3/8-24 Thd. (Grade 5)
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

21

MTD 732-0583

Comp. Spring 4" Lg.

$12.99

$

In Stock, Qty 19

0

23

MTD 781-0323B

Wedge Ass'y.
(Superseded to 753-04120)

Variations

MTD 781-0323B-0483

Wedge Assembly Replacement Kit - CHARCOAL GRAY (0483)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0629

Wedge Assembly Replacement Kit - SILVER FLAKE (0629)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0637

Wedge Assembly Replacement Kit - POWDER BLACK (0637)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0638

Wedge Assembly Replacement Kit - MTD/TROY-BILT RED (0638)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0648

Wedge Assembly Replacement Kit - TECH GRAY (0648)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0662

Wedge Assembly Replacement Kit - OYSTER GRAY (0662)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0716

Wedge Assembly Replacement Kit - CUB YELLOW-99 (0716)

$342.99

$

Usually ships in 3-6 days

0

$342.99

$

Usually ships in 3-6 days

0

24

MTD 781-0345A

Pusher Back Plate
(Superseded to 781-0537-0637)

Variations

MTD 781-0345A-0637

Pusher Back Plate, Powder Black - POWDER BLACK (0637)

$44.99

$

In Stock, Qty 7

0

$44.99

$

In Stock, Qty 7

0

25

MTD 781-0350A

Fixed Side Gib

Variations

MTD 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0498

Fixed Side Gib - OLD CUB YELLOW (0498)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0637

Fixed Side Gib - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0638

Fixed Side Gib - MTD/TROY-BILT RED (0638)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0662

Fixed Side Gib - OYSTER GRAY (0662)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0665

Fixed Side Gib - YARDMAN GREEN (0665)

$30.99

$

In Stock, Qty 8

0

$28.99

$

Usually ships in 3-6 days

0

26

MTD 781-0351

Adjustable Gib

Variations

MTD 781-0351-0483

Log Splitter Adjustable Gib, 2" - CHARCOAL GRAY (0483)

$18.99

$

In Stock, Qty 18

0

MTD 781-0351-0637

Log Splitter Adjustable Gib, 2" - POWDER BLACK (0637)

$18.99

$

In Stock, Qty 18

0

$18.99

$

In Stock, Qty 18

0

27

MTD 781-0352A

Adjustable Gib Shim
(Superseded to 781-0352A-0637)

Variations

MTD 781-0352A-0483

Adjustable Gib Shim - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0352A-0498

Adjustable Gib Shim - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0352A-0637

Adjustable Gib Shim - POWDER BLACK (0637)

$

$

Not available

MTD 781-0352A-0638

Adjustable Gib Shim - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0352A-0662

Adjustable Gib Shim - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0352A-0692

Adjustable Gib Shim - AGWAY BLUE (0692)

$

$

Not available

MTD 781-0352A-0716

Adjustable Gib Shim - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

MTD 781-0356

Floating Gib Plate

Variations

MTD 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0498

Floating Gib Plate - OLD CUB YELLOW (0498)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$131.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

29

MTD 714-0203

External Cotter Pin

$9.49

$

Usually ships in 3-6 days

0

30

MTD 715-0206

Cylinder Mounting Pin

$

$

Not available

31

MTD 717-0885B

Hydraulic Cylinder
(Superseded to 918-0307-0637)

$

$

Not available

32

MTD 717-0899

Control Valve
(Superseded to 918-0481A)

Variations

MTD 717-0899-0483

Logsplitter Valve - CHARCOAL GRAY (0483)

$383.99

$

In Stock, only 2 left!

0

MTD 717-0899-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 2 left!

0

MTD 717-0899-0638

Logsplitter Valve - MTD/TROY-BILT RED (0638)

$383.99

$

In Stock, only 2 left!

0

MTD 717-0899-0648

Logsplitter Valve - TECH GRAY (0648)

$383.99

$

In Stock, only 2 left!

0

MTD 717-0899-0662

Logsplitter Valve - OYSTER GRAY (0662)

$383.99

$

In Stock, only 2 left!

0

MTD 717-0899-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

$383.99

$

In Stock, only 2 left!

0

33

MTD 727-0323

Metal Pressure Tube

$

$

Currently unavailable

35

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

36

MTD 737-0279

Adapter

$

$

Not available

37

MTD 737-0235

3/4 Hose Barb.

$23.99

$

In Stock, only 2 left!

0

39

MTD 710-0521

Hex Bolt 3/8-16 x 3" Lg. (Grade 8)

$5.49

$

In Stock, Qty 11

0

40

MTD 710-0411

Hex Bolt 3/8-16 x 4" Lg.

$8.49

$

In Stock, Qty 17

0

41

MTD 710-3130

Hex Bolt 3/8-16 x 3.25" Lg. (Grade 8)

$10.99

$

In Stock, only 1 left!

0

42

MTD 711-0813

Clevis Pin 5/16 x 2.5n Lg.
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

43

MTD 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

44

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

45

MTD 713-0338

Chain-Tow Hitch

$

$

Currently unavailable

46

MTD 715-0116

Roll Pin

$

$

Not available

47

MTD 727-0311

Hitch Coupler

$

$

Not available

49

MTD 736-0116

Fl-Wash. .635" I.D. x .93" O.D.
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

50

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

51

MTD 736-0185

Fl-Wash. .406" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

52

MTD 750-0507

Spacer.27" Lg.
(Superseded to 750-04776)

$5.49

$

In Stock, only 3 left!

0

53

MTD 781-0162

Jack Stand

Variations

MTD 781-0162-0483

STAND-JACK - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0162-0637

STAND-JACK - POWDER BLACK (0637)

$

$

Not available

MTD 781-0162-0638

STAND-JACK - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0162-0648

STAND-JACK - TECH GRAY (0648)

$

$

Not available

MTD 781-0162-0674

STAND-JACK - YARDMAN YELLOW (0674)

$

$

Not available

MTD 781-0162-0716

STAND-JACK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

54

MTD 781-0399

Tongue Tube
(Superseded to 781-0680B)

Variations

MTD 781-0399-0483

TUBE-TONGUE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0399-0629

TUBE-TONGUE - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0399-0637

TUBE-TONGUE - POWDER BLACK (0637)

$

$

Not available

MTD 781-0399-0638

TUBE-TONGUE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0399-0665

TUBE-TONGUE - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0399-0498

No Longer Available TUBE-TONGU - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0399-0648

No Longer Available TUBE-TONGU - TECH GRAY (0648)

$

$

Not available

$192.99

$

Usually ships in 3-6 days

0

55

MTD 781-0370

Locking Rod

$

$

Not available

56

MTD 781-0398

Beam Support Ass'y.

Variations

MTD 781-0398-0638

SUPPORT ASSY-BEAM - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, only 1 left!

0

MTD 781-0398-0637

SUPPORT ASSY-BEAM - POWDER BLACK (0637)

$118.99

$

Usually ships in 3-6 days

0

MTD 781-0398-0483

SUPPORT ASSY-BEAM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0398-0498

No Longer Available SUPPORT ASSY-BEAM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0398-0648

SUPPORT ASSY-BEAM - TECH GRAY (0648)

$

$

Not available

MTD 781-0398-0665

SUPPORT ASSY-BEAM - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0398-0716

SUPPORT ASM-BEAM - CUB YELLOW-99 (0716)

$

$

Not available

$103.99

$

Usually ships in 3-6 days

0

57

MTD 723-0405

Filter Element
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

58

MTD 723-0406

Filter Head
(Superseded to 681-0179)

$

$

Not available

59

MTD 726-0146

Adj. Hose Clamp

$

$

Not available

60

MTD 727-0443

Return Hose 3/4" I.D. x 44" Lg.

$118.99

$

In Stock, only 2 left!

0

62

MTD 781-0404

Vertical Beam Ass'y.

$

$

Not available

66

MTD 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

68

MTD 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

73

MTD 710-0117

Hex Bolt 5/16-24 x 1 " Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

74

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

75

MTD 710-0968

Hex Bolt 5/16-24 x 5" Lg.

$

$

Not available

76

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

77

MTD 714-0122

Sq.-Key 3/16" x .75"

$3.99

$

In Stock, Qty 20+

0

78

MTD 717-0891

Flexible Coupling
(Superseded to 917-0891)

$159.99

$

Usually ships in 3-6 days

0

79

MTD 717-0887A

Two Volume Pump

$

$

Currently unavailable

80

MTD 719-0281

Coupling Shield

$44.99

$

Usually ships in 3-6 days

0

81

MTD 726-0132

Hose Clamp 5/8n

$15.99

$

Usually ships in 3-6 days

0

82

MTD 727-0448

Suction Hose 3/4" I.D. x 17" Lg.

$

$

Not available

83

MTD 727-0324

High Pressure Hydraulic Hose 62"

$

$

Not available

84

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

85

MTD 781-0097

Rear Coupling Support Brkt.
(Superseded to 781-0097-0637)

Variations

MTD 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

86

MTD 781-0098

Front Coupling Support Brkt.
(Superseded to 781-0098A-0637)

Variations

MTD 781-0098-0637

Bracket, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

88

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

89

Engine

$

$

Not available

91

MTD 737-0236

L-Vent Pipe Plug
(Superseded to 737-0348A)

$23.99

$

In Stock, only 1 left!

0

92

MTD 735-0639

Spark Plug Boot

$

$

Not available

95

MTD 781-0501

638/N Tank Ass'y.

$

$

Not available

96

MTD 720-0235

Grip
(Superseded to 720-04088)

$10.99

$

Usually ships in 3-6 days

0

97

MTD 747-0583

Control Handle
(Superseded to 947-0583)

$129.99

$

In Stock, only 3 left!

0

98

MTD 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

99

MTD 781-0168A

Stripper Plate

Variations

MTD 781-0168A-0483

Stripper Half - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0168A-0638

Stripper Half - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0168A-0498

No Longer Available STRIPPER H - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0168A-0637

STRIPPER HALF - POWDER BLACK (0637)

$

$

Not available

MTD 781-0168A-0662

STRIPPER HALF - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0168A-0716

No Longer Available STRIPPER H - CUB YELLOW-99 (0716)

$

$

Not available

$102.99

$

Usually ships in 3-6 days

0

100

MTD 710-3144

Hex Bolt 3/8-16 x 2.0" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

101

MTD 712-0430

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

102

MTD 750-0743

Spacer 1/2" I.D. x .68" Lg.

$

$

Not available
