2409 G (1692489) - Massey Ferguson Rear-Engine Riding Mower, 9hp Peerless Transaxle Model 915-016B-Controls Parts Diagram

Rear-Engine Riding Mower, 9hp

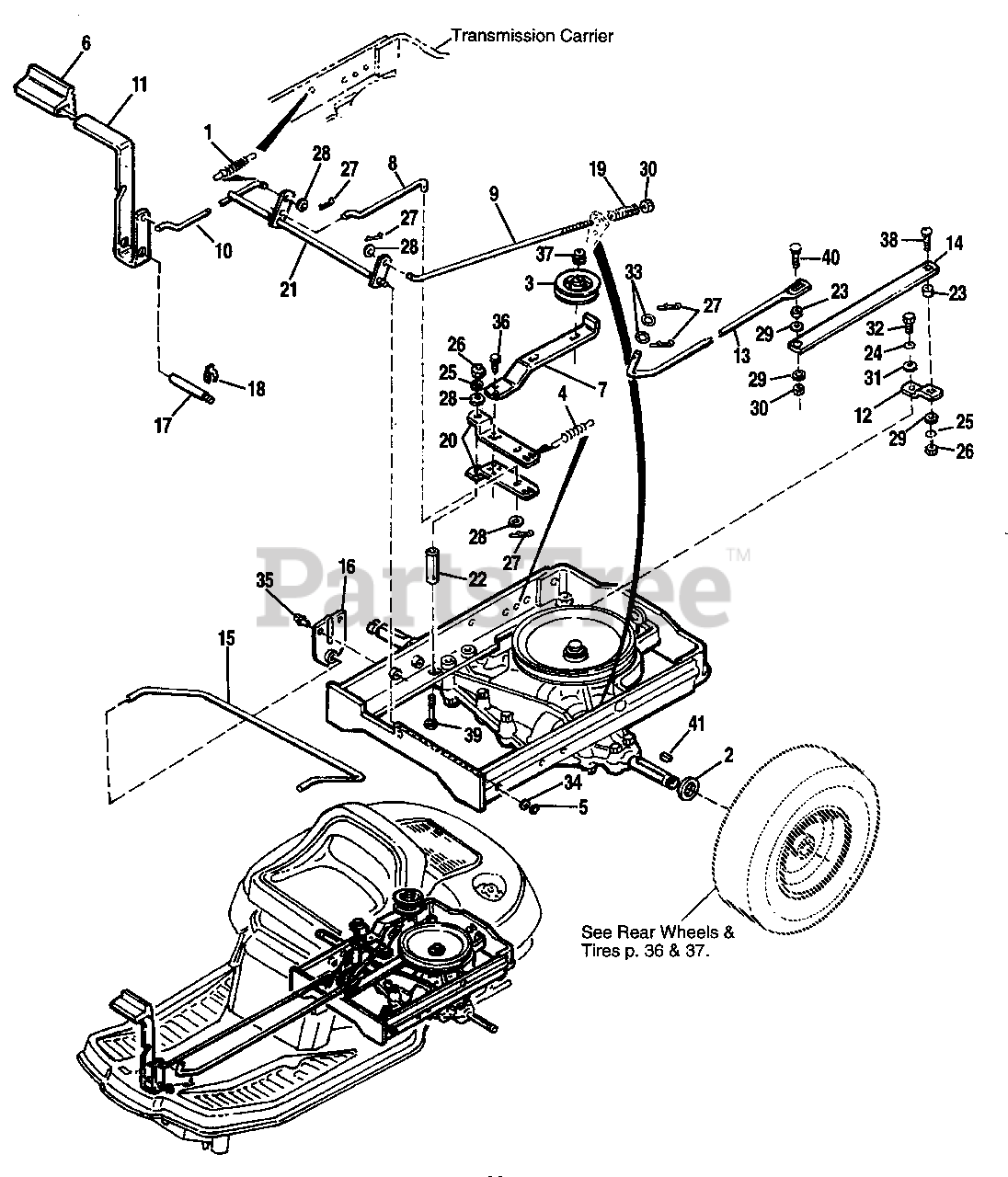

Peerless Transaxle Model 915-016B-Controls Parts Diagram

  • Title

1

Simplicity 2159106SM

SPRING, Return
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

2

Simplicity 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1668827SM

PULLEY, Idler

$22.99

$

Usually ships in 2-12 days

0

4

Simplicity 1669837SM

SPRING, Idler

$

$

Not available

5

Simplicity 1703805SM

KLIPRING, 1/2

$3.49

$

In Stock, Qty 12

0

6

Snapper 1704849SM

PAD, Pedal

$

$

Not available

7

Simplicity 1706252SM

LEVER, Idler, Pulley

$9.49

$

Usually ships in 2-12 days

0

8

Simplicity 1706255SM

ROD, Clutch, Rear

$12.99

$

Usually ships in 2-12 days

0

9

Simplicity 1706256SM

ROD, Brake

$13.99

$

In Stock, only 1 left!

0

10

Simplicity 1706260SM

ROD, Clutch, Front

$16.99

$

Usually ships in 2-12 days

0

11

Simplicity 1723348

LEVER, Clutch
(Superseded to 1723348ASM)

$17.99

$

Usually ships in 2-12 days

0

12

Simplicity 1706388SM

BRACKET, Shift

$8.99

$

Usually ships in 2-12 days

0

13

Simplicity 1707209SM

ROD, Shift, Front

$62.99

$

Usually ships in 2-12 days

0

14

Simplicity 1707210SM

BAR, Shift, Rear
(Superseded to 1707210ASM)

$8.49

$

Usually ships in 2-12 days

0

15

Simplicity 1708366SM

TORSION BAR

$29.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708367SM

BRACKET, Torsion Bar

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1708409SM

PIVOT, Brake

$12.99

$

In Stock, only 1 left!

0

18

Simplicity 1708554SM

KLIP RING, 3/8

$2.99

$

In Stock, only 1 left!

0

19

Simplicity 1709097SM

SPRING, Compression

$92.99

$

Usually ships in 2-12 days

0

20

Simplicity 1709221SM

CLEVIS, Idler, Bracket

$9.99

$

Usually ships in 2-12 days

0

21

Simplicity 1709231SM

PIVOT SHAFT ASSY.

$38.99

$

In Stock, only 1 left!

0

22

Simplicity 1709345SM

SPACER, Pivot

$20.99

$

Usually ships in 2-12 days

0

23

Simplicity 1710437SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

24

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

25

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 6

0

29

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1919438SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1921319SM

WASHER, Plain, 17/64 x 5/8 x 3/64
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1922234SM

SCREW, Hex Hd., 1/4-28 x 5/8

$2.49

$

Usually ships in 2-12 days

0

33

Simplicity 1924359SM

WASHER

$2.49

$

Usually ships in 2-12 days

0

34

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

35

Simplicity 1924856SM

SCREW, Hex Hd., Flange, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

36

Simplicity 1927429SM

SCREW, Hex Hd., Flange, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

37

Simplicity 1930645SM

NUT, Hex, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

39

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

40

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

41

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0
