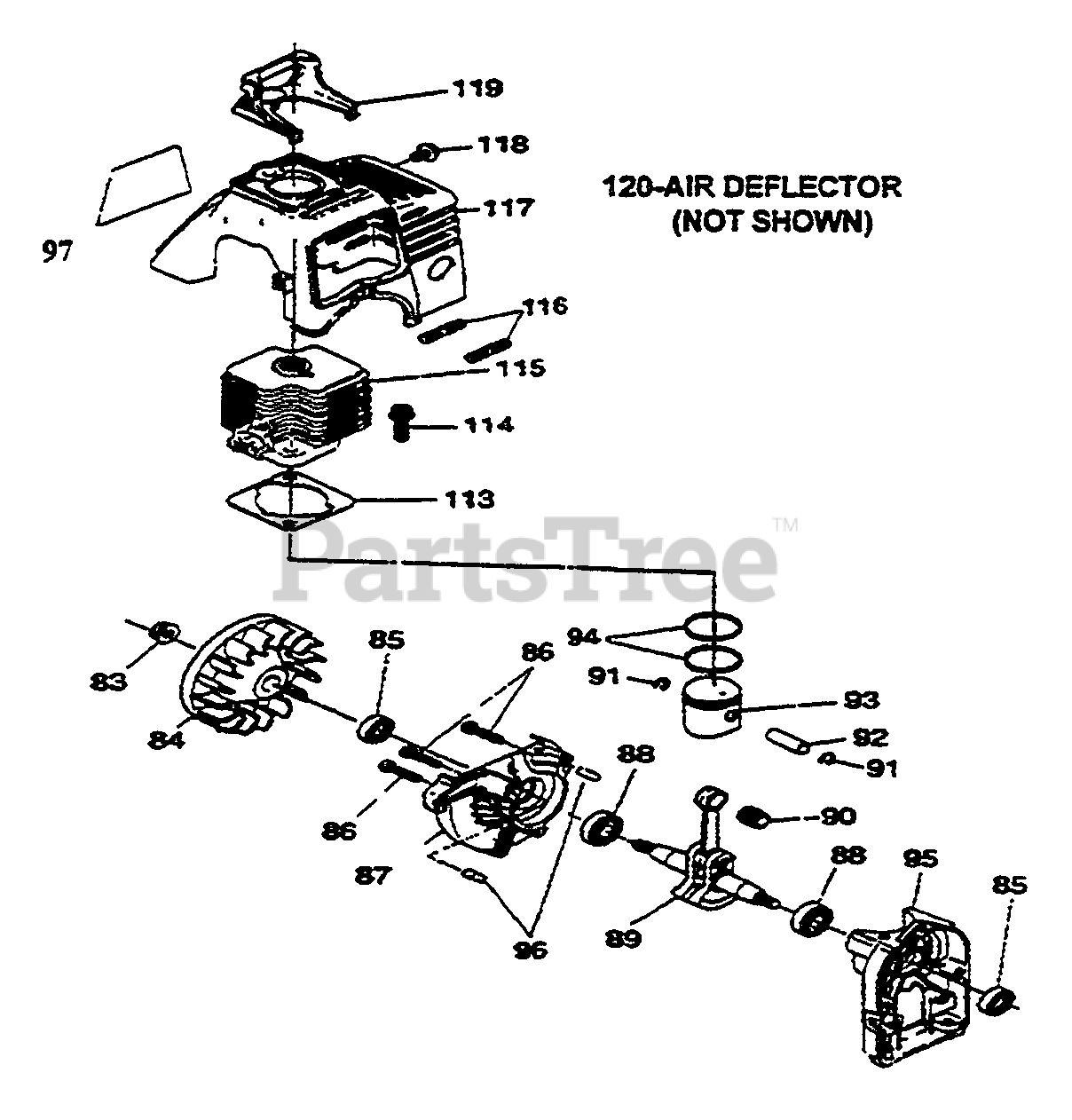

2400 M-3 - Green Machine Hedge Trimmer Engine Internal For 2400M-3 Parts Diagram

Hedge Trimmer

Engine Internal For 2400M-3 Parts Diagram

  • Title
83

Homelite GM052801

NUT, CONICAL SPG.

$2.49

$

Usually ships in 3-7 days

0

$86.99

$

Usually ships in 3-7 days

0

85

Homelite GM081502

OIL SEAL
(Superseded to 07708)

$

$

Not available

$

$

Not available

87

Homelite GM286702

CASE, DRIVE

$

$

Currently unavailable

88

Homelite GM071009

BEARING, BALL

$

$

Not available

89

Homelite GM286703

CRANKSHAFT ASSY

$

$

Not available

90

Homelite GM071410

BEARING, NEEDLE

$

$

Not available

91

Homelite GM062803

CLIP, PISTON PIN

$

$

Not available

92

Homelite GM286105

PIN, PISTON

$11.99

$

Usually ships in 3-7 days

0

93

$

$

Currently unavailable

94

Homelite GM062804

RING, TOP

$

$

Currently unavailable

95

Homelite GM287301

CASE, STARTER

$

$

Currently unavailable

96

Homelite GM288204

DOWEL PIN

$

$

Currently unavailable

97

Homelite GM249504

DECAL

Note: OBSOLETE

$

$

Currently unavailable

113

Homelite GM287403

GASKET, CYLINDER

$

$

Not available

114

Homelite GM032805

BOLT, FLANGE

$

$

Not available

115

$381.99

$

Usually ships in 3-7 days

0

116

Homelite GM032804

BOLT, STUD

$

$

Not available

117

Homelite GM286704

COVER, TOP

$

$

Currently unavailable

118

Homelite GM002808

SCREW & WASHER

$

$

Not available

119

Homelite GM286104

GUARD, SPARK PLUG

$

$

Currently unavailable

120

Homelite GM246912

AIR DEFLECTOR

Note: Not Shown

$

$

Currently unavailable
