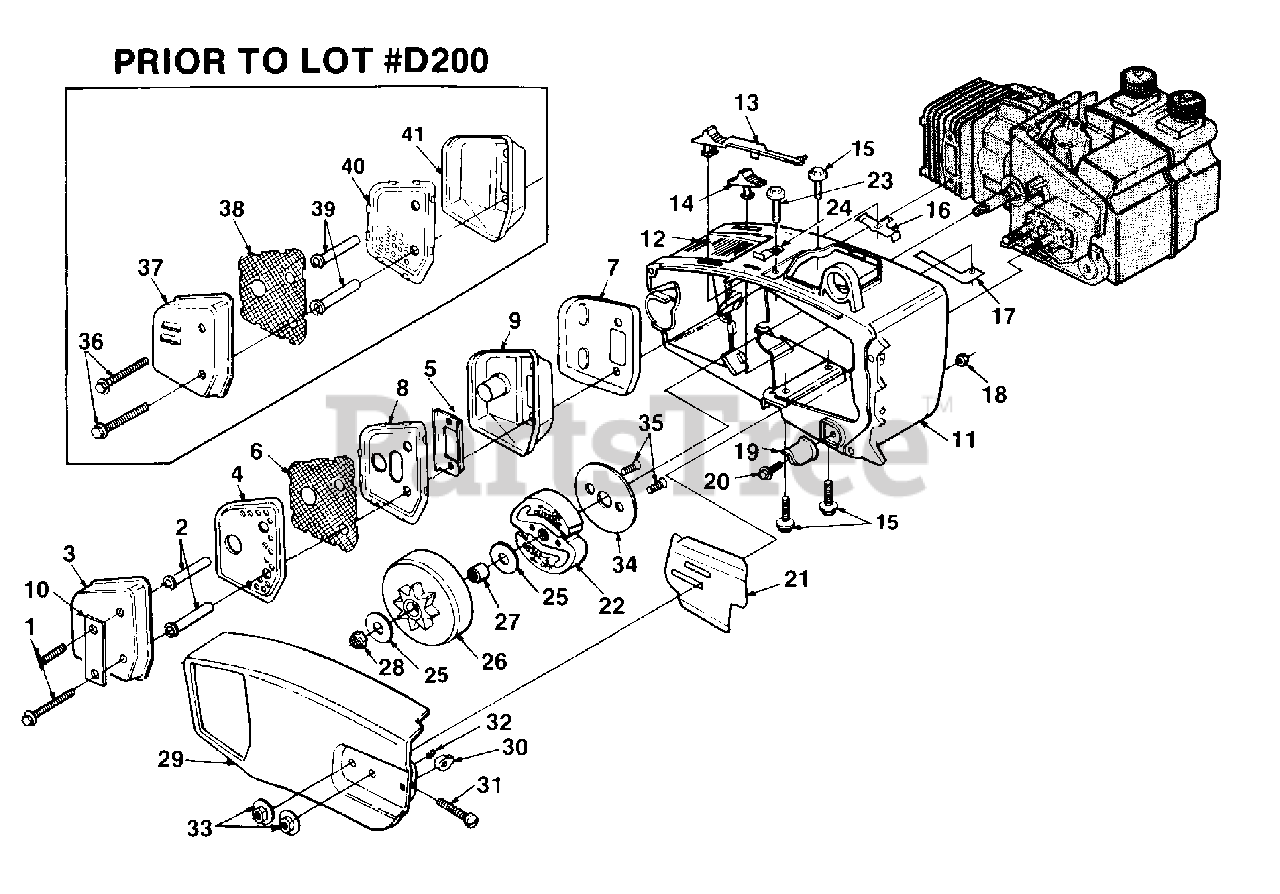

240 (UT-10626) - Homelite Chainsaw Engine Housing, Clutch & Muffler Parts Diagram

Chainsaw

Engine Housing, Clutch & Muffler Parts Diagram

  • Title

Homelite A96931

MUFFLER- Complete (units after Lot #D200)

$

$

Currently unavailable

1

Homelite 95005

SCREW

$

$

Not available

2

Homelite 9398308

SPACER- Muffler

$

$

Not available

3

Homelite 948871

CAP- Muffler

$

$

Not available

4

Homelite 948881

BAFFLE- Muffler

$

$

Not available

5

Homelite 94889

PLATE- Muffler

$

$

Not available

6

Homelite 956371

SCREEN- Spark arrestor

$

$

Not available

7

Homelite 96925

DEFLECTOR- Exhaust

$

$

Not available

8

Homelite 96928

BAFFLE- Muffler

$

$

Not available

9

Homelite A96930

BODY- Muffler

$

$

Not available

10

Homelite 97751

BRACKET- Muffler

$

$

Not available

11

Homelite A96754

HOUSING- Engine

$

$

Currently unavailable

12

Homelite 95633

DECAL- Warning

$

$

Currently unavailable

13

Homelite 95050

BUTTON- Choke
(Superseded to UP03370)

$

$

Not available

14

Homelite 95086A

BUTTON- Stop switch

$

$

Currently unavailable

15

Homelite 88063

SCREW- Hex sems 10-24 x 5/8

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 95087

SPRING- Stop switch

$

$

Not available

17

Homelite 95091

CONTACT- Stop switch

$

$

Not available

18

Homelite 81256

NUT- Lock 10-24

$

$

Not available

19

Homelite 95212

STOP- Chain

$

$

Not available

20

Homelite 82298

SCREW- Mach hex 10-24 x 5/8
(Superseded to 82593)

$4.99

$

Usually ships in 3-7 days

0

21

Homelite 95390

PLATE- Guide bar

$

$

Not available

22

Homelite 683626

CLUTCH- S

$

$

Currently unavailable

23

Homelite 88051

SCREW- Sems hex (10-24 x 3/4)

$

$

Not available

24

Homelite 97993

BRACE- Choke

$

$

Not available

25

Homelite 95299

WASHER- Thrust

$

$

Not available

26

Homelite A97172

SPROCKET & DRUM (37/375 chain only) 6T

$

$

Currently unavailable

Homelite A97056

SPROCKET & DRUM (325P 8T)

$

$

Not available

27

Homelite 68512

BEARING- Needle
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0

28

Homelite 81112

NUT- Lock 5/16-24

$

$

Not available

29

Homelite A93591

COVER- Drivecase

$

$

Currently unavailable

30

Homelite 692541A

PIN- Guide bar adjusting

$

$

Currently unavailable

31

Homelite 93575

SCREW- Guide bar adjusting
(Superseded to A00440)

$

$

Not available

32

Homelite 93574

"E" RING
(Superseded to A00440)

$

$

Not available

33

Homelite 81258

NUT- Flange 1/4-20
(Superseded to UP06989)

$

$

Not available

34

Homelite 699151

COVER- Clutch

$

$

Currently unavailable

35

Homelite 97605

SCREW- Flat hd. 10-32 x 1/2

$

$

Not available

36

Homelite 88057

SCREW- Hex sems 10-24 x 2 (prior to Lot #D200)
(Superseded to UP05817)

$3.99

$

Usually ships in 3-7 days

0

37

Homelite 94887

CAP- Muffler (prior to Lot PD200)

$

$

Not available

38

Homelite 95637

SCREEN- Spark arrestor (prior to Lot #D200)

$

$

Currently unavailable

39

Homelite 9398307

SPACER- Muffler (prior to Lot #D200)

$

$

Currently unavailable

40

Homelite 94888

BAFFLE- Muffler (prior to Lot #D200)

$

$

Currently unavailable

41

Homelite 94886

BODY- Muffler (prior to Lot PD200)

$

$

Currently unavailable
