240 SS (86237) - Snapper String Trimmer 240SS Crankshaft Assembly Parts Diagram

String Trimmer

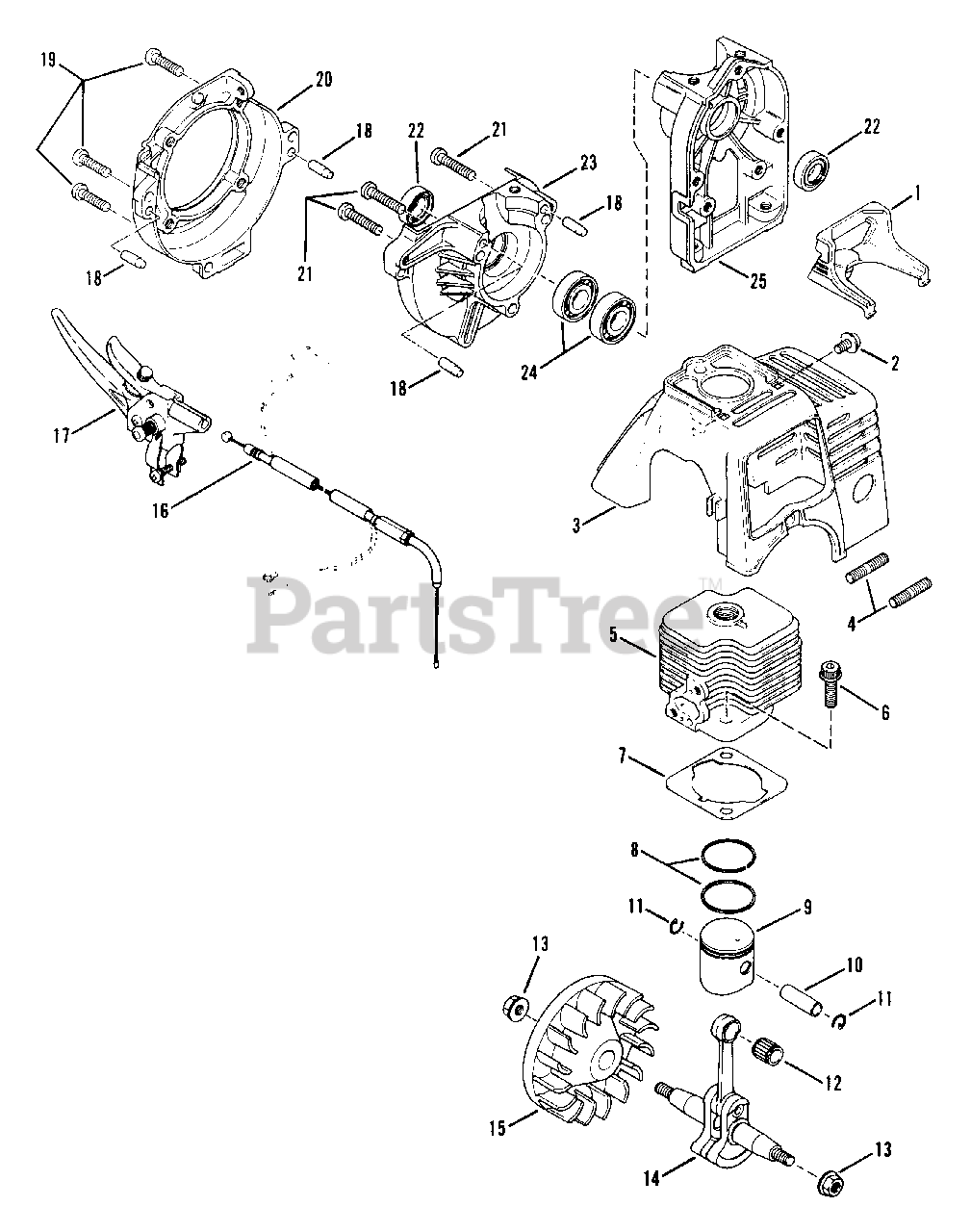

240SS Crankshaft Assembly Parts Diagram

  • Title
1

Snapper 7044312

GUARD, Spark Plug
(Superseded to 7044312YP)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 7044095

SCREW, M5 x 12mm

$

$

Currently unavailable

3

Snapper 7044313

COVER, Cylinder
(Superseded to 7044313YP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7044314

BOLT, Stud, M6 x 16mm

$

$

Currently unavailable

5

Snapper 7044315

CYLINDER

$

$

Currently unavailable

6

Snapper 7044316

BOLT, Flange

$

$

Currently unavailable

7

Snapper 7044317

GASKET, Cylinder
(Superseded to 7044317YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7044318

RING, Piston
(Superseded to 7044318YP)

$9.49

$

Usually ships in 2-12 days

0

9

Snapper 7044320

PISTON
(Superseded to 7044320YP)

$49.99

$

Usually ships in 2-12 days

0

10

Snapper 7044321

PIN, Piston

$

$

Not available

11

Snapper 7044319

CLIP, Piston Pin

$

$

Not available

12

Snapper 7044322

BEARING, Needle

$

$

Currently unavailable

13

Snapper 7044359

NUT, Conical

$

$

Currently unavailable

14

Snapper 7044324

CRANKSHAFT ASSEMBLY

$

$

Currently unavailable

15

Snapper 7044323

FLYWHEEL

$

$

Currently unavailable

16

Snapper 7044396

CABLE, Throttle

$

$

Not available

17

Snapper 7044079

LEVER, Throttle

$

$

Not available

18

Snapper 7044307

PIN, Dowel

$

$

Currently unavailable

19

Snapper 7044306

BOLT/WASHER

$

$

Currently unavailable

20

Snapper 7044311

CASE, Fan

$

$

Currently unavailable

21

Snapper 7044308

SCREW, M5 x 25mm

$

$

Currently unavailable

22

Snapper 7044013

SEAL, Oil
(Superseded to 7044013YP)

$10.99

$

Usually ships in 2-12 days

0

23

Snapper 7044385

CASE, Drive

$

$

Currently unavailable

24

Snapper 7044309

BEARING, Ball

$

$

Currently unavailable

25

Snapper 7044310

CASE, Starter

$

$

Currently unavailable
