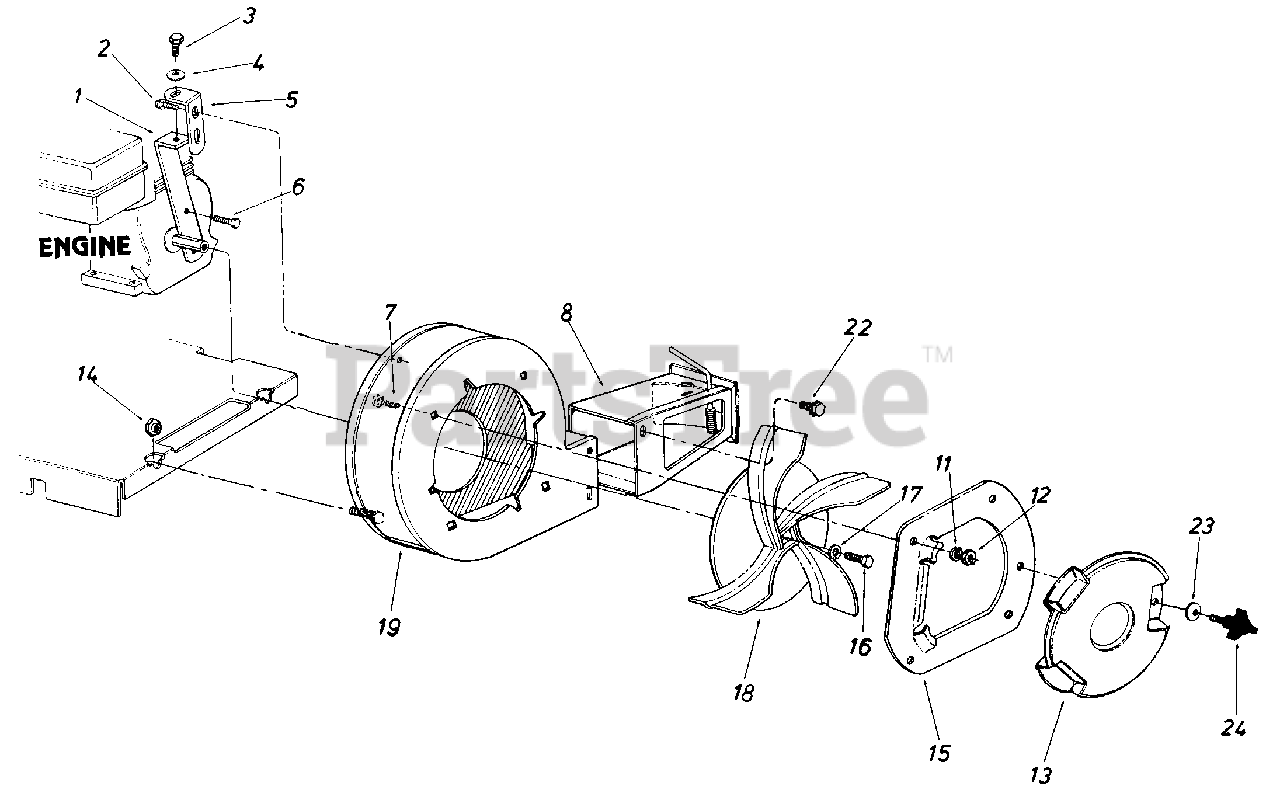

240-692-190 - White Outdoor Walk-Behind Leaf Blower (1990) Blower Assembly Parts Diagram

Walk-Behind Leaf Blower

Blower Assembly Parts Diagram

  • Title
1

White Outdoor 14539

Engine Housing Brace Ass'y.
(Superseded to 14539-0637)

Variations

White Outdoor 14539-0637

HOUSING-ENG BRACE - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 710-0600

Hex Self Tap Scr. 5/16" x .50' Lg.

$3.49

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 14541

Right Angle Bracket
(Superseded to 14541-0637)

Variations

White Outdoor 14541-0637

BRACKET-RIGHT ANGLE - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 710-0627

Hex Locking Bolt 5/16-24 x .75"

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 14479

Directional Discharge Ass'y.

Variations

White Outdoor 14479-0483

DISCHARGE ASSY - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 14479-0498

DISCHARGE ASSY - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 14479-0637

DISCHARGE ASSEMBLY BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14479-0638

DIRECTIONAL DISCHARGE ASSY RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 14479-0665

DISCHARGE ASSEMBLY BLACK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 14479-0691

DIRECTIONAL DISCHARGE ASSY - BLACK JACK (0691)

$

$

Not available

White Outdoor 14479-0662

DISCHARGE ASSY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 14479-0709

DISCHARGE ASSY - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

11

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 731-0608

Blower Guard

$

$

Not available

14

White Outdoor 711-0758

Hex Shoulder Nut .50" I.D.
(Superseded to 911-0758)

$11.99

$

Usually ships in 3-6 days

0

15

White Outdoor 14563A

Nozzle Plate Ass'y.

Variations

White Outdoor 14563A-0483

PLATE ASSY-NOZZLE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 14563A-0498

PLATE ASSY-NOZZLE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 14563A-0637

PLATE ASSY-NOZZLE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14563A-0638

PLATE ASSY-NOZZLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 14563A-0691

PLATE ASSY-NOZZLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 14563A-0709

PLATE ASSY-NOZZLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

16

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

17

White Outdoor 736-0217

L.-Wash. 3/8" I.D. HD.

$4.49

$

In Stock, Qty 6

0

18

White Outdoor 14535

Air Vane Plate Ass'y.

$

$

Not available

19

White Outdoor 14496A

Blower Housing Ass'y.-Comp.
(Superseded to 14496B)

Variations

White Outdoor 14496A-0483

HOUSING ASSY-BLOWER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 14496A-0498

HOUSING ASSY-BLOWER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 14496A-0637

HOUSING ASSY-BLOWER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14496A-0638

HOUSING ASSY-BLOWER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 14496A-0662

HOUSING ASSY-BLOWER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 14496A-0665

HOUSING ASSY-BLOWER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 14496A-0691

HOUSING ASSY-BLOWER - BLACK JACK (0691)

$

$

Not available

White Outdoor 14496A-0709

HOUSING ASSY-BLOWER - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

22

White Outdoor 710-0259

Hex Sems Bolt 5/16-18 x .62" Lg.

$

$

Not available

23

White Outdoor 736-0242

Belleville Wash. .34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 720-0170

3-Arm Thumb Scr. 5/16-18 x .75" Lg.

$11.99

$

In Stock, only 2 left!

0
