240-687 - MTD Walk-Behind Blower Vacuum (1990) Parts Parts Diagram

Walk-Behind Blower Vacuum

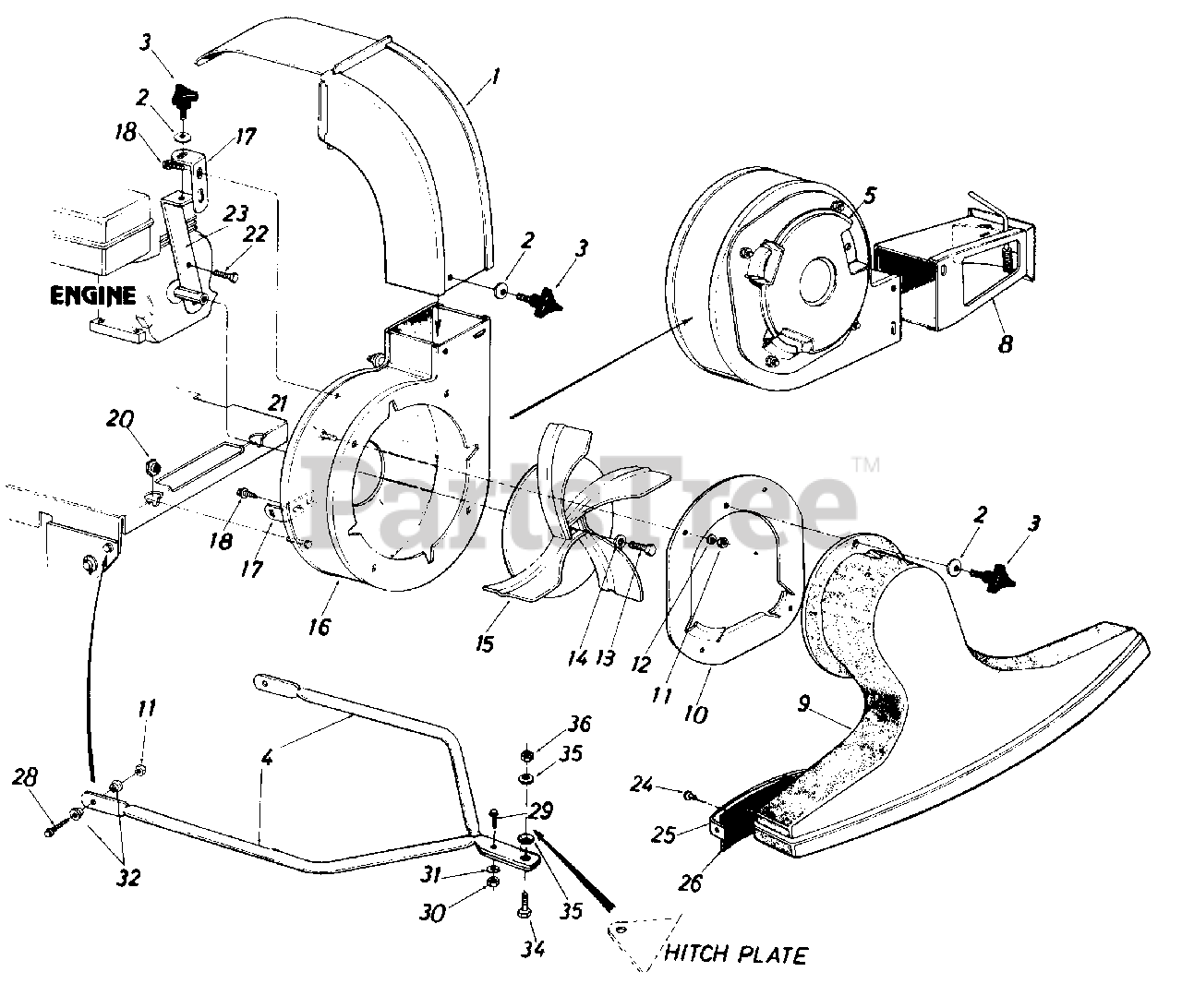

Parts Parts Diagram

  • Title

1

MTD 14532

Air Duct Assembly

Variations

MTD 14532-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14532-0637

No Longer Available DUCT-AIR - POWDER BLACK (0637)

$

$

Not available

MTD 14532-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14532-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

2

MTD 736-0242

Belleville Wash. 34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

3

MTD 720-0170

3-Arm Thumb Scr. 5/16-18 x .75" Lg.

$11.99

$

In Stock, only 2 left!

0

4

MTD 749-0501

Tow Bar Half

Variations

MTD 749-0501-0637

No Longer Available TOW BAR-HA - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 731-0608

Impeller Guard

$

$

Not available

8

MTD 14479

Directional Discharge Ass'y.

Variations

MTD 14479-0483

No Longer Available DISCHARGEASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14479-0498

No Longer Available DISCHARGEASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14479-0637

No Longer Available DISCHARGEASM - POWDER BLACK (0637)

$

$

Not available

MTD 14479-0638

No Longer Available DISCHARGEASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14479-0665

No Longer Available DISCHARGEASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 14479-0691

No Longer Available DISCHARGE ASM - BLACK JACK (0691)

$

$

Not available

MTD 14479-0662

No Longer Available DISCHARGE - OYSTER GRAY (0662)

$

$

Not available

MTD 14479-0709

No Longer Available DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

9

MTD 14562B

Nozzle Ass'y.

$

$

Not available

10

MTD 14563

Nozzle Plate Ass' y .
(Superseded to 14563A)

$

$

Not available

11

MTD 712-0267

Hex Nut5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0119

L. Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

14

MTD 736-0217

L.-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

15

MTD 14536

Air Vane Plate Ass y.

Note: (24677)

$

$

Not available

MTD 14557

Air Vane Plate Ass y. w/pulley
(Superseded to 14557A-0637)

Note: (24687)

$

$

Not available

16

MTD 14496

Blower Housing Complete
(Superseded to 14496B)

$

$

Not available

17

MTD 14541

Right Angle Bracket
(Superseded to 14541-0637)

Variations

MTD 14541-0637

BRACKET-RIGHT ANGL - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0600

Hex Self-Tap Scr. 5/16-18 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

20

MTD 711-0758

Hex Shoulder Nut .50 I.D.
(Superseded to 911-0758)

$11.99

$

Usually ships in 3-6 days

0

21

MTD 710-0260

Carriage Bolt 5/16-18 x .62 " Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0627

Hex Locking Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

23

MTD 14539

Housing - Engine Brace Ass'y.
(Superseded to 14539-0637)

Variations

MTD 14539-0637

HOUSING-ENG BRACE - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 728-0173

Pop Rivet
(Superseded to 928-0173)

$4.49

$

In Stock, only 4 left!

0

25

MTD 14569

Wiper Retaining Strip

Variations

MTD 14569-0637

No Longer Available WIPER RETA - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 735-0214

Nozzle Wiper

$34.99

$

Usually ships in 3-6 days

0

28

MTD 710-0602

Hex Bolt 5/16-18 x 1.00" Lg.*

Note: (Optional parts)

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-0924)

Note: (Optional parts)

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

Note: (Optional parts)

$4.99

$

Usually ships in 3-6 days

0

31

MTD 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

Note: (Optional parts)

$4.49

$

In Stock, Qty 11

0

32

MTD 748-0234

Shoulder Spacer

Note: (Optional parts)

$4.49

$

Usually ships in 3-6 days

0

34

MTD 738-0143

Shld. Bolt .496 Dia.

Note: (Optional parts)

$4.49

$

In Stock, Qty 20+

0

35

MTD 736-0219

Belleville Wash. .39 I.D. x 1.12 O.D.
(Superseded to 936-0219)

Note: (Optional parts)

$4.49

$

Usually ships in 3-6 days

0

36

MTD 712-0181

Hex Jam L-Nut 3/8-16 Thd.

Note: (Optional parts)

$4.49

$

In Stock, only 3 left!

0
