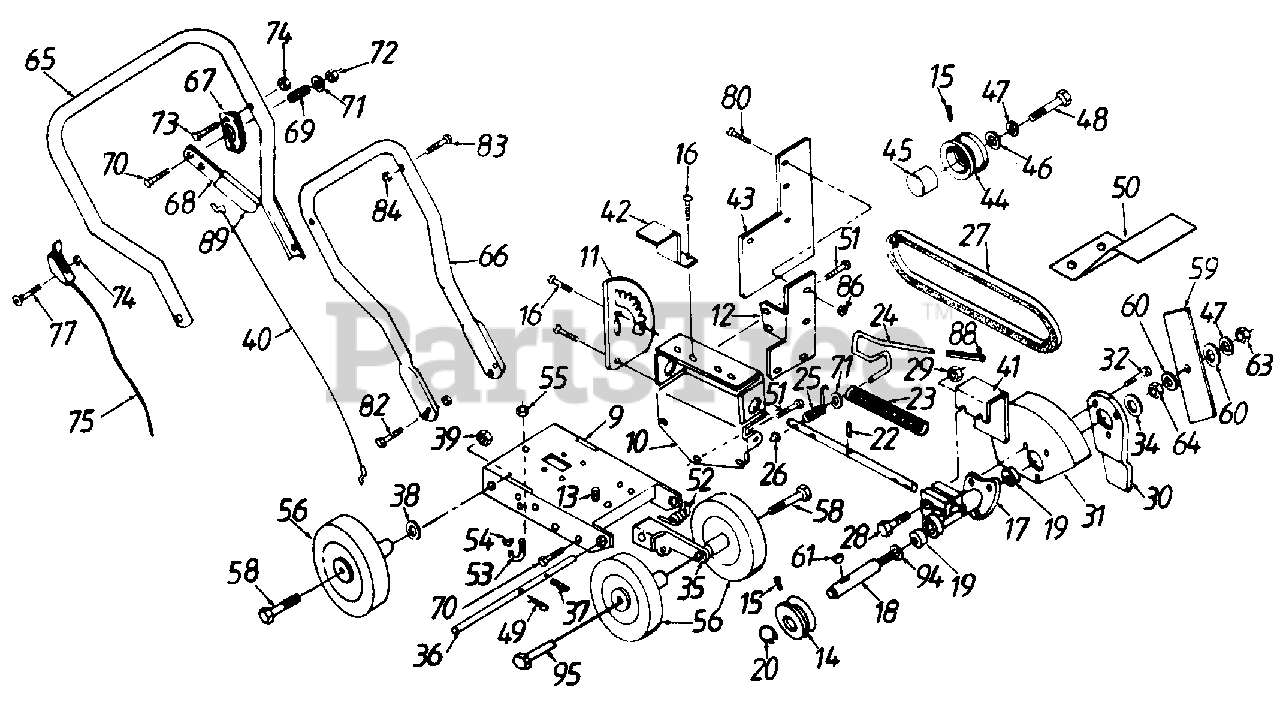

240-554-000 - MTD Edger (1990) Parts Parts Diagram

Edger

Parts Parts Diagram

  • Title

9

MTD 706-14406-00-19

Base Edger Frame

$

$

Currently unavailable

10

MTD 706-18724-00-19

Side Plate

$

$

Currently unavailable

11

MTD 706-18795-00-05

Index Plate

$

$

Currently unavailable

12

MTD 706-16591-00-19

Deflector Bracket

$

$

Not available

13

MTD 706-11573-24

Bolt Engine Mtg.

Note: (Special)

$

$

Currently unavailable

14

MTD 706-18870-02-05

Pulley Cutterhead

$

$

Not available

15

MTD 706-16117

Set Screw
(Superseded to 710-3006)

$4.49

$

In Stock, only 1 left!

0

16

706-1060408

Screw #10-32 x 1/2"

$

$

Not available

17

MTD 706-18721-01

Casting Cutterhead

$

$

Not available

18

MTD 706-18797-02

Shaft-Cutterhead
(Superseded to 911-0855)

$43.99

$

Usually ships in 3-6 days

0

19

MTD 706-18796

Bushing-Bronze
(Superseded to 741-0576)

Note: (Cutterhead)

$

$

Not available

20

MTD 706-18798

Retaining Ring
(Superseded to 916-0182)

$

$

Not available

MTD 706-13756-00-05

Rod-Cutterhead

$

$

Not available

22

MTD 706-10640

Roll Pin

$

$

Not available

23

MTD 706-16330

Spring Cutterhead

$

$

Not available

24

MTD 706-18800

Index Lever

$

$

Not available

25

MTD 706-18801

Spring Index Lever

$

$

Not available

26

MTD 706-10120

Push Nut Retainer 5/16"
(Superseded to 726-0135)

$6.99

$

In Stock, only 1 left!

0

27

MTD 706-16301

V-Belt
(Superseded to 954-0935)

$21.99

$

Usually ships in 3-6 days

0

28

MTD 710-0442

Hex Bolt 5/16-18 x 1l/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-0429

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

30

MTD 706-1872991

Edge Guide

$

$

Currently unavailable

31

MTD 706-14203-00-90

Guard-Blade
(Superseded to 731-1193)

$

$

Not available

32

MTD 706-11606-12

Screw #124 x 3/4"

$

$

Not available

MTD 712-0161

Hex L-Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

34

MTD 706-11231

Flat Washer
(Superseded to 936-0117)

Note: (Special)

$7.49

$

Usually ships in 3-6 days

0

35

MTD 706-15813-00-05

Wheel Arm-Front

$

$

Currently unavailable

36

MTD 706-18802-01-05

Wheel Axle-Front

$

$

Currently unavailable

37

MTD 706-16048

Roll Pin

$

$

Currently unavailable

38

MTD 706-15829

Fl-Wash. 3/8 I.D.
(Superseded to 936-0101)

Note: (Special)

$4.99

$

Usually ships in 3-6 days

0

39

MTD 706-10639

Hex Flange Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

40

MTD 706-15818-02

Cable Depth Control

$

$

Not available

41

MTD 706-1872391

Belt Guardutterhead

$

$

Currently unavailable

42

MTD 706-1872291

Belt Guard-Engine

$

$

Currently unavailable

43

MTD 706-1630290

Debris Deflector

$

$

Currently unavailable

44

MTD 706-18871

Pulley Half Engine

$

$

Not available

45

MTD 706-18875

Spacer-Engine Pulley

$

$

Currently unavailable

46

MTD 706-11232-00-05

Fl-Wash. 3/8" I.D.
(Superseded to 936-3004)

$

$

Not available

47

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

48

MTD 710-0152

Hex Bolt 3/8-24 x 1n Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

49

MTD 706-16331

Hairpin Cotter
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

50

MTD 706-15608-00-19

Shield

$

$

Currently unavailable

51

MTD 706-10610-10

Tapping Screw 1/4-20 x 5/8"

$

$

Currently unavailable

52

MTD 706-13750

Spring Front Wheel

$

$

Not available

53

MTD 706-10616-01

J-Bolt

$

$

Not available

54

MTD 706-10786

Cable Guide Half

$

$

Not available

55

MTD 706-10003-01

Hex Keps Nut 1/4-20
(Superseded to 712-0271)

$4.49

$

In Stock, Qty 20+

0

56

MTD 706-10226

Wheel 7" Marlex

$

$

Currently unavailable

58

MTD 706-10118-01

Bolt Wheel Axle

Note: (Ext. Thread)

$

$

Not available

59

MTD 706-16746-00-90

9" Replacement Blade

$

$

Currently unavailable

60

MTD 706-15829

Fl-Wash. 3/8" I.D.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

61

MTD 706-15635

Woodruff Key
(Superseded to 914-0112)

$

$

Not available

63

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

64

MTD 706-18848

Hex Jam Nut 3/8-24 Thd.
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

65

MTD 706-1877090

Upper Handle

$

$

Currently unavailable

66

MTD 706-18771-02-90

Lower Handle

$

$

Currently unavailable

67

MTD 706-13746-00-19

Plate Depth Adjust

$

$

Currently unavailable

68

MTD 706-13747-00-05

Handle Depth Adjust

$

$

Not available

69

MTD 706-16332-00-05

Spring Adjust Handle

$

$

Not available

70

MTD 710-0442

Hex Bolt 5/16-18 x 11/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

71

MTD 706-11229-01-05

Fl-Wash. 5/16" I.D.

$

$

Currently unavailable

72

MTD 706-13285

Hex Flange L-Nut 5/16-18 I.D.

$

$

Not available

73

MTD 710-0106

Hex Bolt 1/4-20 x 1l/4"

$3.99

$

In Stock, Qty 12

0

74

MTD 706-11909

Hex Flange L-Nut 1/4-20

$

$

Not available

75

MTD 746-0768

Throme Control-2 HP B&S

$

$

Not available

77

MTD 706-10155-03

Eye Bolt

$

$

Currently unavailable

80

MTD 706-14271-01

Tap Scr. #10-32 x .5" Lg.

$

$

Not available

82

MTD 706-10058-10

Hex Bolt 5/16-18 x 5/8"
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

83

MTD 710-0528

Hex Bolt 5/16-18 x 1-1/4

$4.49

$

In Stock, Qty 20+

0

84

MTD 706-10003-02

Hex Sems Nut 5/16-18

$

$

Not available

86

MTD 706-10003-04

Hex Sems Nut #10-32
(Superseded to 712-3071A)

$3.49

$

Usually ships in 3-6 days

0

88

MTD 706-10207

Vinyl Grip Round

$

$

Not available

89

MTD 706-16289

Vinyl Grip Flat
(Superseded to 720-0142)

$3.99

$

Usually ships in 3-6 days

0

94

MTD 706-15829

Fl-Wash.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

95

MTD 706-15814

Bolt Wheel Axle

Note: (Int. Thread)

$

$

Not available
