24 H - Husqvarna Hedge Trimmer (SN: 19900500001 - 19921400000) HANDLE & CONTROLS Parts Diagram

Hedge Trimmer

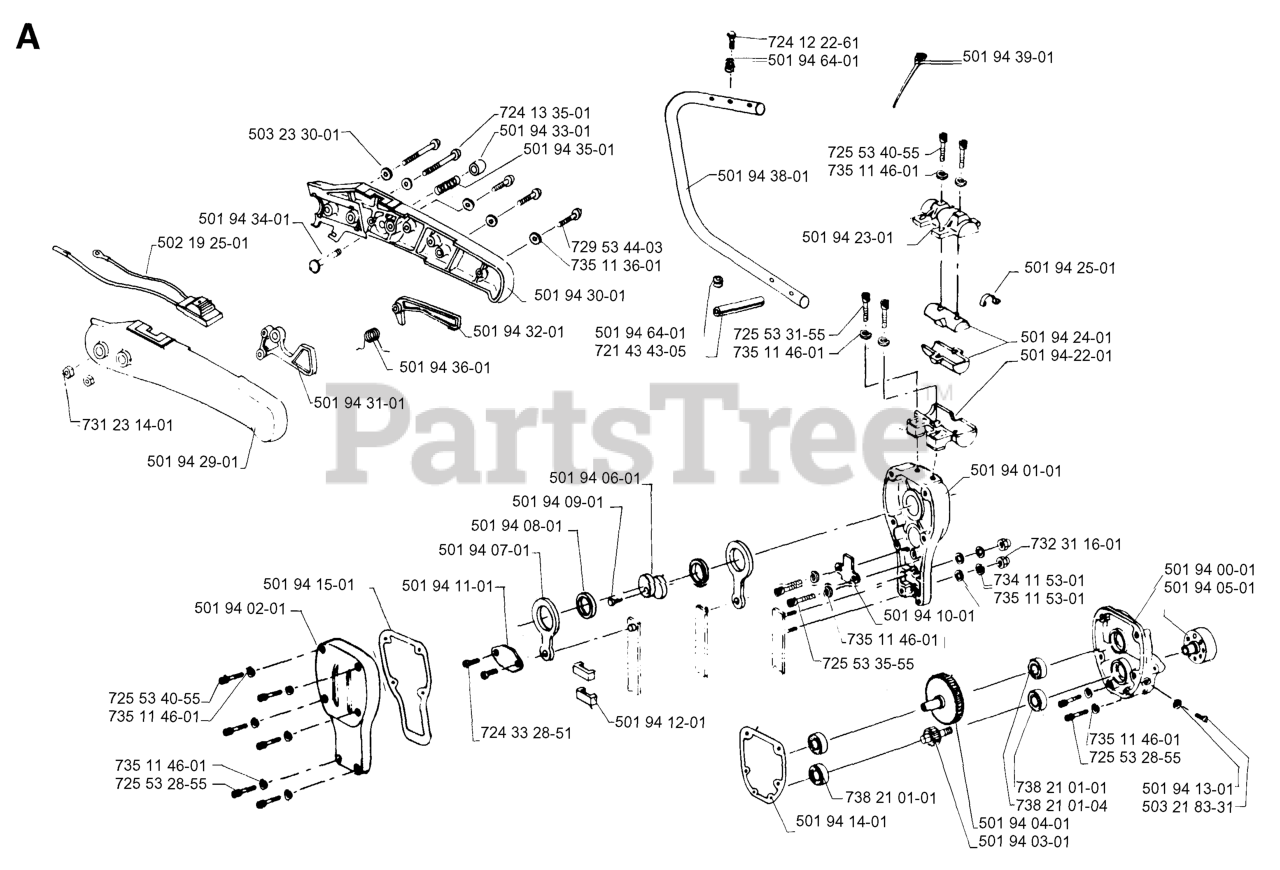

HANDLE & CONTROLS Parts Diagram

  • Title

501 94 34-01

Husqvarna 501943401

PIN
(Superseded to 531003096)

$

$

Not available

725 53 28-55

Husqvarna 725532855

SCREW MC6S 5X14

$

$

Not available

725 53 40-55

Husqvarna 725534055

SCREW MC6S 5X45

$4.99

$

Usually ships in 3-10 days

0

501 94 02-01

Husqvarna 501940201

CAMCASE LOVER

$

$

Not available

501 94 13-01

Husqvarna 501941301

Plain Washer (M6)

$

$

Not available

501 94 38-01

Husqvarna 501943801

HANDLE L NLA

$

$

Not available

501 94 30-01

Husqvarna 501943001

HANDLE R

$

$

Not available

735 11 46-01

Husqvarna 735114601

SPRING WASHER
(Superseded to 819070816)

$6.99

$

Usually ships in 3-10 days

0

501 94 15-01

Husqvarna 501941501

PACKING

$

$

Not available

501 94 11-01

Husqvarna 501941101

FIXING PLATE

$

$

Not available

721 43 43-05

Husqvarna 721434305

$

$

Currently unavailable

734 11 53-01

Husqvarna 734115301

Washer

$2.99

$

Usually ships in 3-10 days

0

503 21 83-31

Husqvarna 503218331

Screw 6x10

$

$

Not available

501 94 36-01

Husqvarna 501943601

SPRING

$

$

Not available

738 21 01-01

Husqvarna 738210101

BEARING BALL 6001
(Superseded to 530032125)

$18.99

$

Usually ships in 3-10 days

0

501 94 08-01

Husqvarna 501940801

CAM ROLLER

$

$

Not available

501 94 01-01

Husqvarna 501940101

CAM HOUSING

$

$

Not available

501 94 14-01

Husqvarna 501941401

PACKING

$

$

Not available

503 23 30-01

Husqvarna 503233001

$

$

Currently unavailable

501 94 32-01

Husqvarna 501943201

LOCK LEVER

$

$

Not available

501 94 04-01

Husqvarna 501940401

GEAR

$

$

Not available

501 94 35-01

Husqvarna 501943501

SPRING

$

$

Not available

725 53 31-55

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

735 11 36-01

Husqvarna 735113601

SPRING WASHER 4.1X7.1

$0.99

$

Usually ships in 3-10 days

0

501 94 06-01

Husqvarna 501940601

CAM

$

$

Not available

729 53 44-03

Husqvarna 729534403

TAPPING SCREW
(Superseded to 729534401)

$

$

Not available

501 94 22-01

Husqvarna 501942201

HANDLE BRACKET

$

$

Not available

724 33 28-51

Husqvarna 724332851

FLAT SCREW

$

$

Not available

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, only 1 left!

0

501 94 00-01

Husqvarna 501940001

GEARHOUSING NLA

$

$

Not available

502 19 25-01

Husqvarna 502192501

STOP SWITCH

$

$

Not available

501 94 39-01

Husqvarna 501943901

THROTTLE WIRE

$

$

Not available

735 11 53-01

Husqvarna 735115301

SPRING WASHER

$6.99

$

In Stock, only 1 left!

0

501 94 12-01

Husqvarna 501941201

FELT PACKING

$

$

Not available

501 94 05-01

Husqvarna 501940501

CLUTCH

$

$

Not available

501 94 33-01

Husqvarna 501943301

CATCH

$

$

Not available

724 12 22-61

Husqvarna 724122261

TAPPING SCREW NLA

$

$

Not available

732 31 16-01

Husqvarna 732311601

HEXAGON CAP NUT NLA

$

$

Not available

501 94 07-01

Husqvarna 501940701

CAM ROD

$

$

Not available

501 94 09-01

Husqvarna 501940901

CAM PUSH SCREW

$

$

Not available

501 94 03-01

Husqvarna 501940301

PINION

$

$

Not available

501 94 24-01

Husqvarna 501942401

ABSORBER

$

$

Not available

501 94 29-01

Husqvarna 501942901

HANDLE L

$

$

Not available

501 94 64-01

Husqvarna 501946401

RUBBER BUSHING

$

$

Not available

501 94 25-01

Husqvarna 501942501

EARTH PLATE

$

$

Not available

501 94 23-01

Husqvarna 501942301

HANDLE BRACKET

$

$

Not available

501 94 31-01

Husqvarna 501943101

THROTTLE LEVER
(Superseded to 531003094)

$

$

Not available

738 21 01-04

Husqvarna 738210104

BALL BEARING

$24.99

$

Usually ships in 3-10 days

0

501 94 10-01

Husqvarna 501941001

SLIDE PLATE

$

$

Not available

724 13 35-01

Husqvarna 724133501

Screw

$

$

Not available

725 53 35-55

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0
