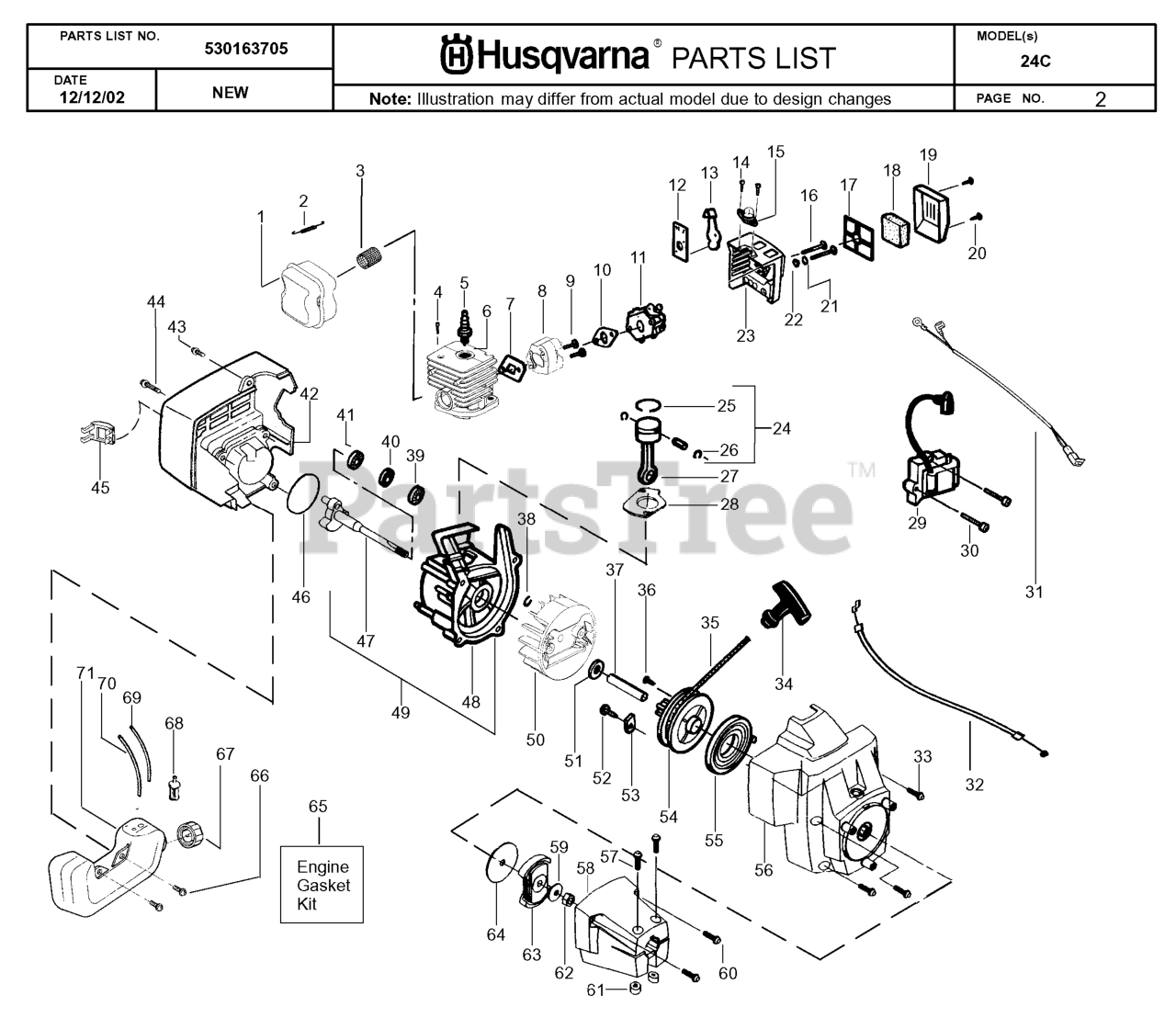

24 C - Husqvarna String Trimmer (SN: 20030100001 - 20040100000) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title
38

Husqvarna 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530037413

FILTER PLATE

$

$

Not available

7

Husqvarna 530071363

GASKET KIT

$

$

Not available

61

Husqvarna 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

39

Husqvarna 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

31

Husqvarna 530047278

LEAD WIRE ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

34

Husqvarna 530036520

STARTER HANDLE
(Superseded to 530027569)

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 530071363

GASKET KIT

$

$

Not available

33

Husqvarna 530015810

SCREW - SHROUD
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

53

$7.49

$

In Stock, only 2 left!

0

1

Husqvarna 530071396

KIT-MUFFLER

$

$

Not available

$

$

Not available

66

$4.99

$

Usually ships in 3-10 days

0

64

Husqvarna 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, only 2 left!

0

65

Husqvarna 530071363

GASKET KIT

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

58

Husqvarna 530057426

ASSY CLUTCH HSG HUSKY
(Superseded to 530071697)

$

$

Not available

27

Husqvarna 530069945

KIT-CONN ROD ASSY
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna CHAMPION

NEEDS DESCRIPTION

$

$

Currently unavailable

41

$18.99

$

Usually ships in 3-10 days

0

21

Husqvarna 530015852

CHOKE SPACER

$3.49

$

In Stock, only 1 left!

0

69

Husqvarna 530069216

KIT.LINE TANK/PURGE

$11.99

$

In Stock, Qty 20+

0

52

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 530071545

KIT CYLINDER

$

$

Not available

63

Husqvarna 530069491

CLUTCH ASSEMBLY KIT

$

$

Not available

13

Husqvarna 530038102

CHOKE SHUTTER

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530056404

ASSY CARB ADAPTOR PHENOLRE
(Superseded to 545030403)

$

$

Not available

49

Husqvarna 530071625

KIT ASSY C'CASE/C'SHAFT

$

$

Not available

$3.99

$

In Stock, only 2 left!

0

45

$

$

Not available

25

Husqvarna 530055120

PISTON RING
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 530037331

AIR FILTER FOAM

$3.99

$

In Stock, only 1 left!

0

$0.99

$

Usually ships in 3-10 days

0

$

$

Not available

47

Husqvarna 530052344

ASSY-CRANKSHAFT
(Superseded to 530071625)

$

$

Not available

44

Husqvarna 530015810

SCREW - SHROUD
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

29

Husqvarna 530039163

IGNITION MODULE

$53.99

$

In Stock, only 1 left!

0

56

$21.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530071363

GASKET KIT

$

$

Not available

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 530016349

SCREW FILTER PLATE

$6.49

$

In Stock, only 1 left!

0

60

Husqvarna 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, only 3 left!

0

14

Husqvarna 530015780

SCREW 6-19X5/8 PLAS.PAN

$6.49

$

In Stock, only 2 left!

0

68

Husqvarna 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 530071639

CARBURETOR

$

$

Not available

35

$7.49

$

In Stock, Qty 20+

0

12

Husqvarna 530037326

CHOKE PLATE

$

$

Not available

2

Husqvarna 530042088

SPRING-MUFFLER (NEW STYLE)

$3.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 1 left!

0

57

Husqvarna 530015767

SCREW-10-24 X 1-3/8 (UN

$3.99

$

In Stock, only 2 left!

0

55

Husqvarna 530042085

STARTER SPRING
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

40

Husqvarna 530071615

KIT-CRANKCASE SEAL

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 530071363

GASKET KIT

$

$

Not available

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530071357

PISTON
(Superseded to 530071833)

$37.99

$

Usually ships in 3-10 days

0

70

Husqvarna 530069247

HOSE. FUEL

$7.99

$

In Stock, Qty 20+

0

$4.99

$

In Stock, only 3 left!

0

42

Husqvarna 530057389

SHROUD HUSQ ORANGE

$18.99

$

Usually ships in 3-10 days

0

32

Husqvarna 530056241

THROTTLE WIRE

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

$7.99

$

Usually ships in 3-10 days

0

59

Husqvarna 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 7

0

48

Husqvarna 530071627

KIT ASSY CRANKCASE

$

$

Not available

15

Husqvarna 530038874

AIR PURGE BUBBLE

$

$

Not available

19

Husqvarna 530037292

AIR FILTER COVER

$

$

Not available

50

Husqvarna 530069886

FLYWHEEL
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

54

Husqvarna 530069400

STARTER PULLEY KIT
(Superseded to 530071786)

$11.99

$

In Stock, Qty 7

0

23

Husqvarna 530037970

FILTER HOLDER

$3.99

$

Usually ships in 3-10 days

0
