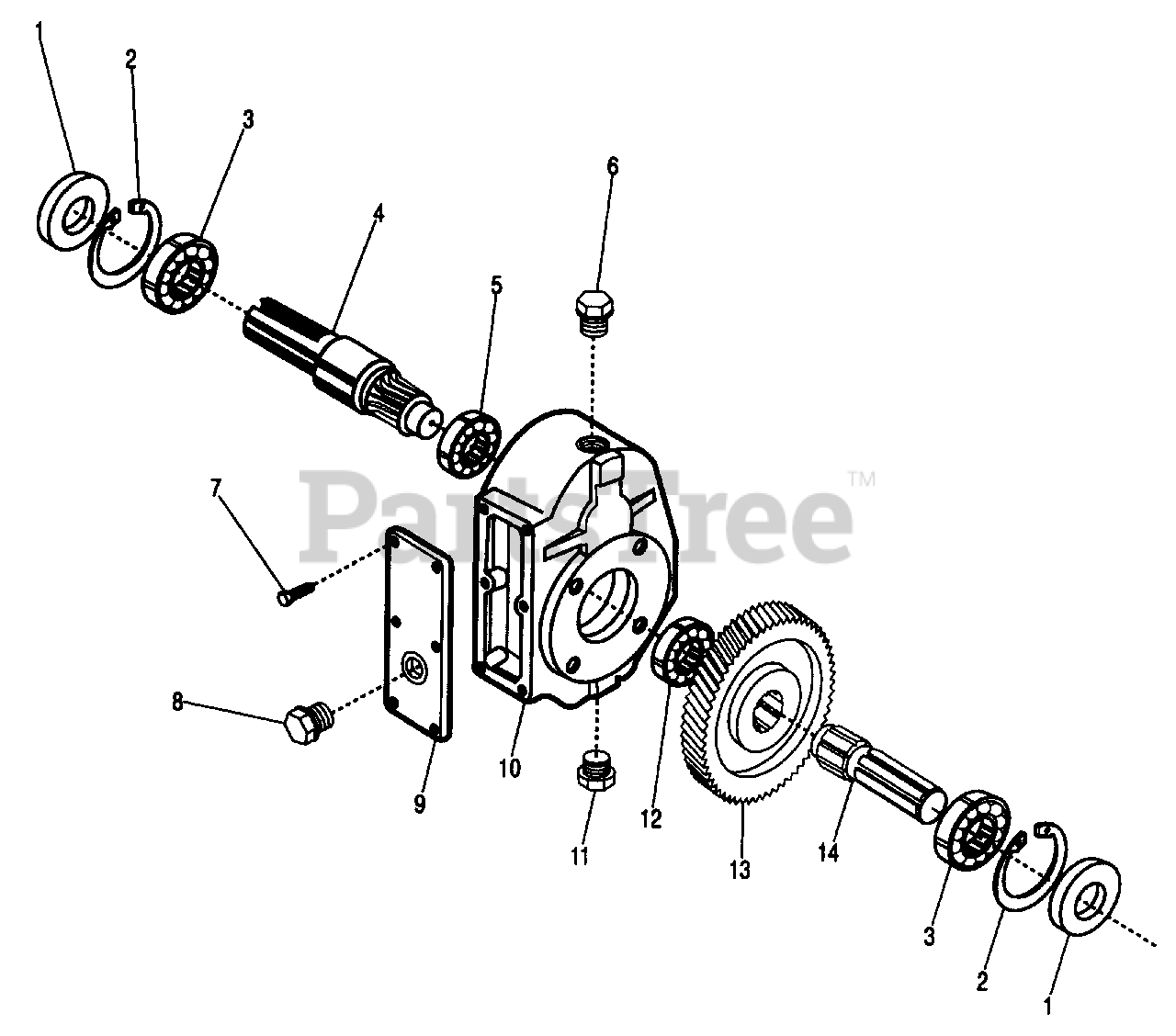

24 (9026200) - Simplicity Chipper Shredder, PTO Drive PTO Gearbox-Service Parts - Commercial Models 20 PTO & 24 PTO Parts Diagram

Chipper Shredder, PTO Drive

PTO Gearbox-Service Parts - Commercial Models 20 PTO & 24 PTO Parts Diagram

  • Title

1

Simplicity 1713809SM

OIL SEAL

$22.99

$

Usually ships in 2-12 days

0

2

Simplicity 1703810SM

RETAINING RING

$22.99

$

Usually ships in 2-12 days

0

3

Simplicity 1703811

BEARING

$

$

Not available

4

Simplicity 1703812

SHAFT

$

$

Not available

5

Simplicity 1716117SM

BEARING
(Superseded to 1716117ASM)

$

$

Not available

6

Simplicity 1703814

OIL PLUG

$

$

Not available

7

Simplicity 1703815

SCREW

$

$

Not available

8

Simplicity 1703816SM

OIL PLUG

$555.99

$

Usually ships in 2-12 days

0

9

Simplicity 1703817

COVER

$

$

Not available

10

Simplicity 1703818

HOUSING

$

$

Not available

11

Simplicity 1703819

OIL Plug

$

$

Not available

12

Simplicity 1703820

BEARING

$

$

Not available

13

Simplicity 1703821SM

GEAR

$26.99

$

Usually ships in 2-12 days

0

14

Simplicity 1727129ASM

SHAFT

$185.99

$

Usually ships in 2-12 days

0
