23AAFAAX711 - Troy-Bilt FLEX Chipper Shredder Attachment (2017) Impeller Housing Parts Diagram

FLEX Chipper Shredder Attachment

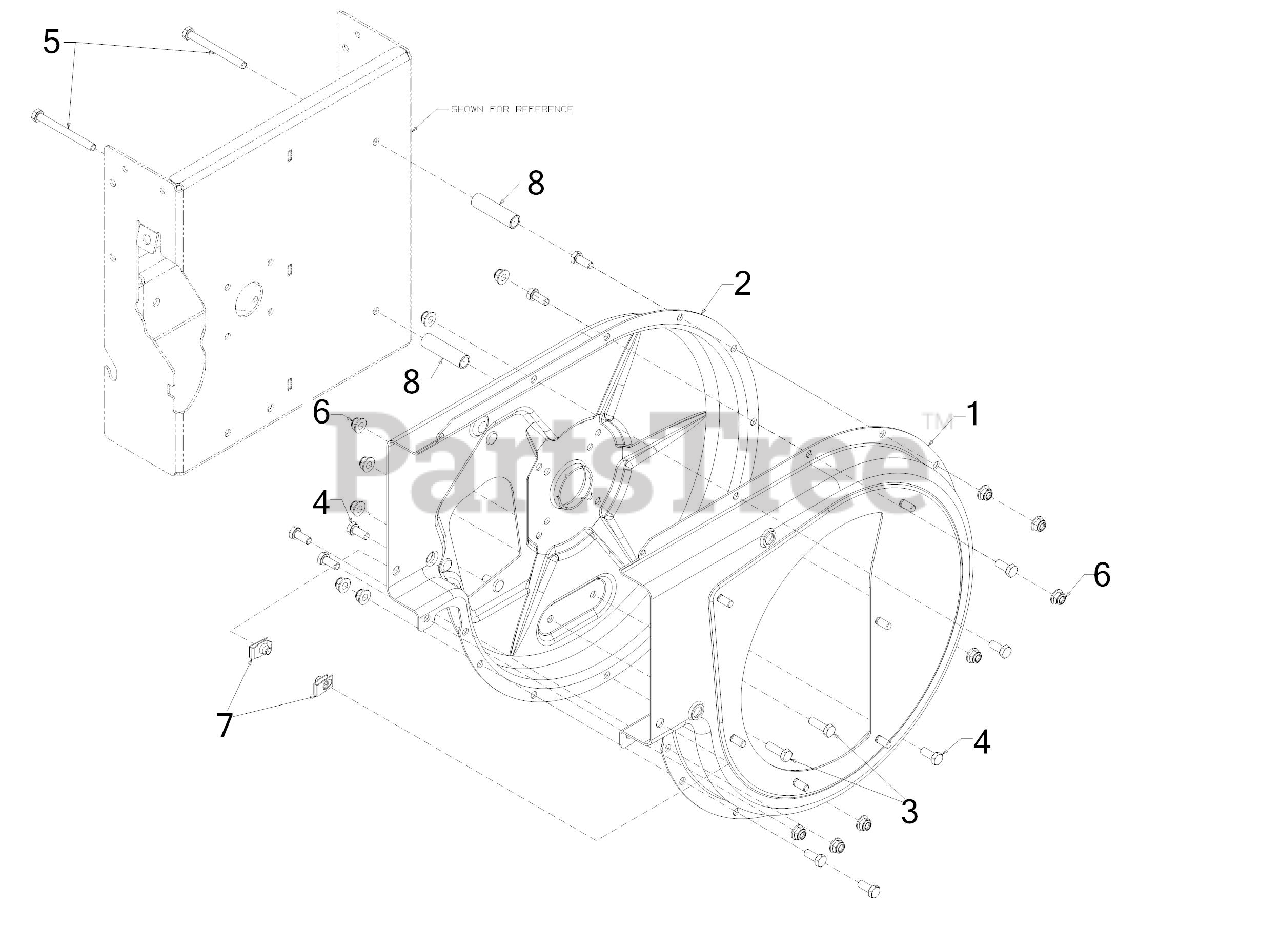

Impeller Housing Parts Diagram

  • Title
1

Troy-Bilt 681-04002-0638

FLAIL HOUSING ASSEMBLY (OUTER)
(Superseded to 681-04002)

$141.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 710-1307

CLINCH STUD 5/16-18 x .75

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-05063-0638

INNER FLAIL HOUSING

$162.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-1307

CLINCH STUD 5/16-18 x .75

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

4

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3056

SCREW 5/16-18 x 3.25 GR5

$10.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 926-0211

U-NUT
(Superseded to 726-0211)

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 750-06610

SPACER .459 X .625 X 2.31

$7.99

$

Usually ships in 3-6 days

0
