23AADAAA711 - Troy-Bilt FLEX Pressure Washer Attachment (2016) General Assembly Parts Diagram

FLEX Pressure Washer Attachment

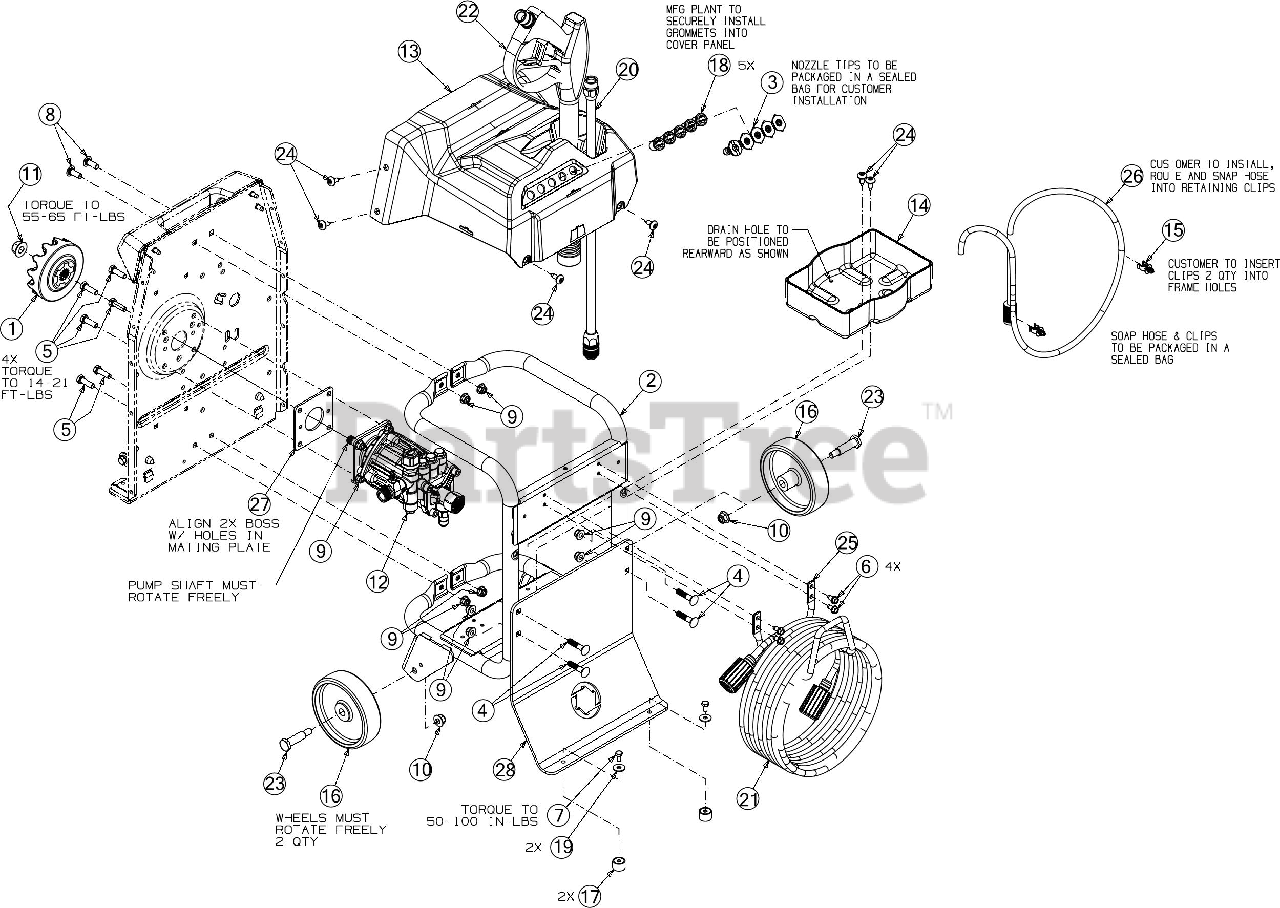

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 735-05109

DOG CLUTCH BUMPER

$2.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-05304

DOG CLUTCH

$83.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-05304

DOG CLUTCH ASSEMBLY

$83.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 687-05107A-0638

FRAME ASSEMBLY

$145.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 687-05118

NOZZLE FITTING ASSEMBLY

$

$

Not available

4

Troy-Bilt 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

5

Troy-Bilt 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

6

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-1691

SCREW M6-1 x 12

$3.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-3105

BOLT 5/16-18X .875 GR1

$6.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 16

0

11

Troy-Bilt 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 718-05394

PRESSURE WASHER PUMP
(Superseded to 718P05394)

$402.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 731-10738

POWER WASH COVER

$34.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 731-10765A

SOAP TRAY

$21.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 731-11232

WIRE CLIP

$10.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 734-0973

PLASTIC WHEEL 5X1.38

$12.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 735-04121

BUMPER

$3.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 735-05097A

GROMMET

$6.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 737-05045

EXTENSION TUBE

$63.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 737-05046

ATTACHMENT HOSE .25 x 40FT

$105.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 737-05054

CONTROL HANDLE

$68.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 938-0373

SHOULDER SCREW

$9.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 738-04549A

TORX SHOULDER SCREW 1/4-20

$7.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 747-06453-0637

HOSE HANGER ROD

$20.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 750-06338

INLET SOAP TUBE

$9.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 787-03282

PUMP PLATE

$14.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 787-03410A-0638

SUPPORT PLATE

$62.99

$

Usually ships in 3-6 days

0
