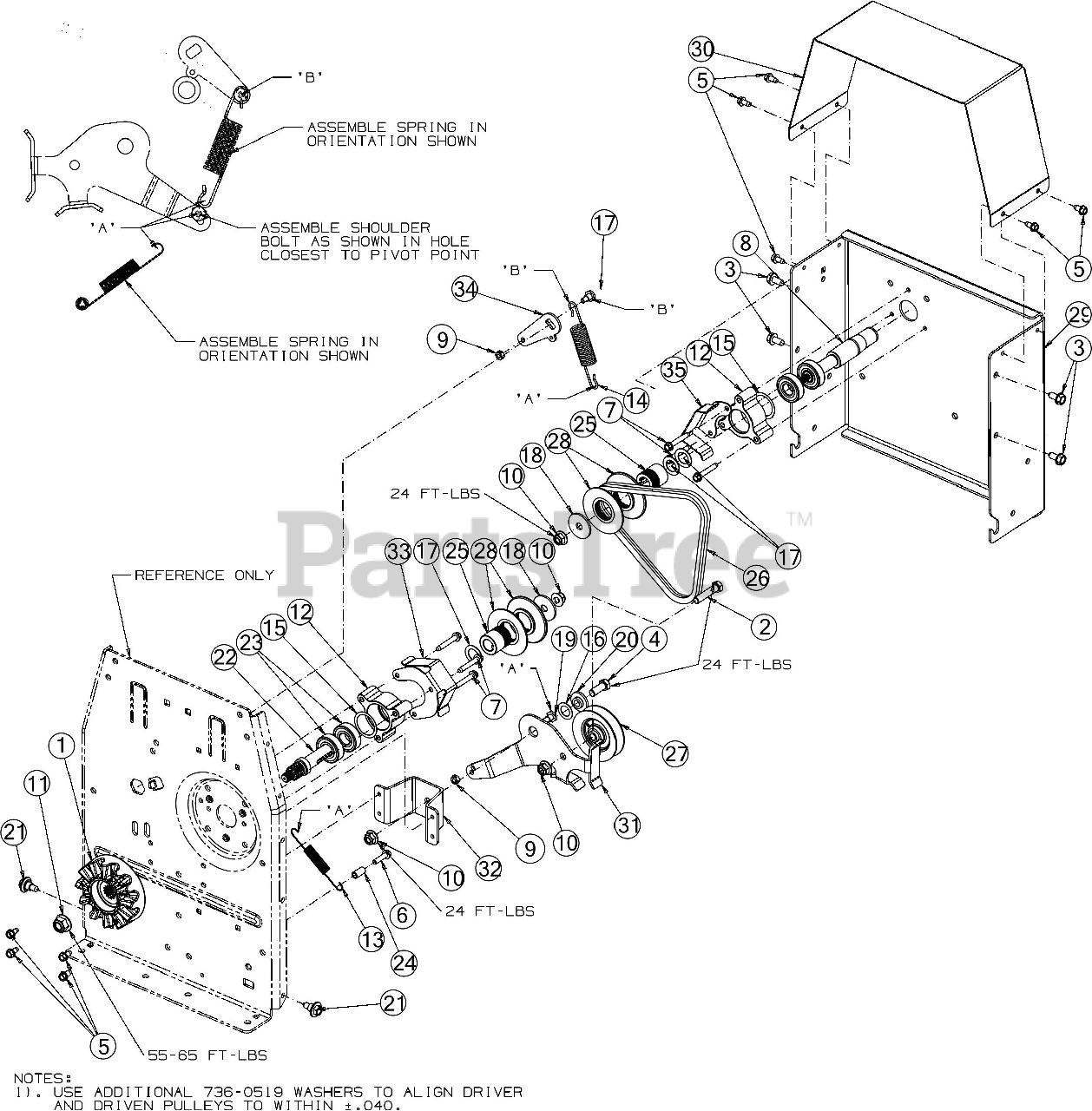

23AACAAX711 - Troy-Bilt FLEX Leaf Blower Attachment (2016) Drive Assembly Parts Diagram

FLEX Leaf Blower Attachment

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 735-05109

DOG CLUTCH BUMPER

$2.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-05304

DOG CLUTCH

$83.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-05304

DOG CLUTCH ASSEMBLY

$83.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0788

SCREW 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-1325

SCREW 1/4-20 X1.625

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 711-06384A

SPINDLE SHAFT

$66.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 912-0291

HEX NUT
(Superseded to 712-0291)

$

$

Not available

10

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 718-04261

BEARING CUP

$20.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 732-05322

EXTENSION SPRING

$6.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 732-05361

EXTENSION SPRING.85 ODX 5.026

$5.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 736-04516

SHIM WASHER

$6.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 936-0495

THRUST WASHER
(Superseded to 736-0495)

$4.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 936-0519

THRUST WASHER
(Superseded to 736-0519)

$

$

Not available

18

Troy-Bilt 936-3039

FLAT WASHER .406X1.500X.105
(Superseded to 736-3039)

$

$

Not available

19

Troy-Bilt 938-0137A

SHOULDER SCREW .340
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

20

Troy-Bilt 938-0347

SHOULDER SPACER

$10.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-05104A

DRIVE SPINDLE

$39.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 941-0600

BALL BEARING

$25.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 750-05369

SPACER .260 x .375 x .75

$5.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 750-06280

SPACER-.670ID x 1.185

$9.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 954-05105A

V-BELT 4L:24.82 ARAMID

$31.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 756-04325

V-IDLER PULLEY A x 3.06 OD

$24.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 756-05187

HALF PULLEY

$10.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 781-05060-0637

BLOWER FRAME

$94.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 781-05061-0637

TOP COVER BRACKET

$33.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 781-05062B

IDLER BRACKET

$39.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 781-05063A-0637

IDLER BRACKET MOUNT

$17.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 781-05072-0637

KEEPER BRACKET

$22.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 781-05096A

ENGAGEMENT CABLE BRACKET

$17.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 781-05100-0637

KEEPER BRACKET

$22.99

$

Usually ships in 3-6 days

0
