23AACAAX711 - Troy-Bilt FLEX Leaf Blower Attachment (2016) Caster Wheel Bracket Parts Diagram

FLEX Leaf Blower Attachment

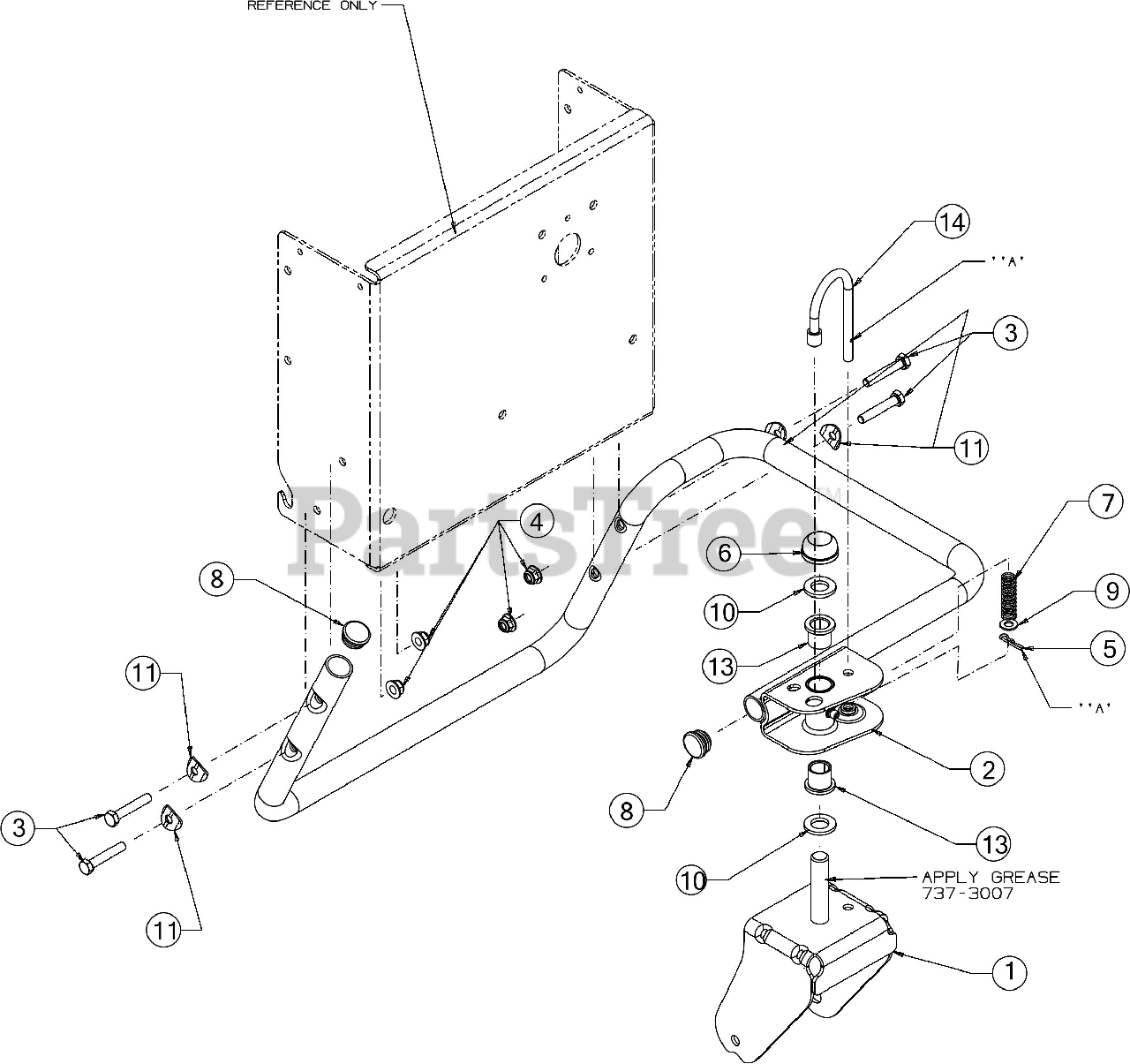

Caster Wheel Bracket Parts Diagram

  • Title

1

Troy-Bilt 681-04085-0638

WHEEL BRACKET ASSEMBLY
(Superseded to 681-04085-4021)

$66.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-05031-0638

LOWER FRAME ASSEMBLY

$87.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 736-04426

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 937-3000

GREASE FITTING

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-3180

SCREW 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 726-0214

PUSH CAP

$10.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 932-0306A

COMPRESSION SPRING

$8.49

$

In Stock, only 4 left!

0

8

Troy-Bilt 735-0246A

END PLUG

$5.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 736-0366

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

12

N/A

GREASE-#251 EP (NOT SERVICEABLE)

$

$

Not available

13

Troy-Bilt 741-0685

BEARING:FLANGE .631 ID

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 747-0924

LOCK PIN

$20.99

$

In Stock, only 1 left!

0
