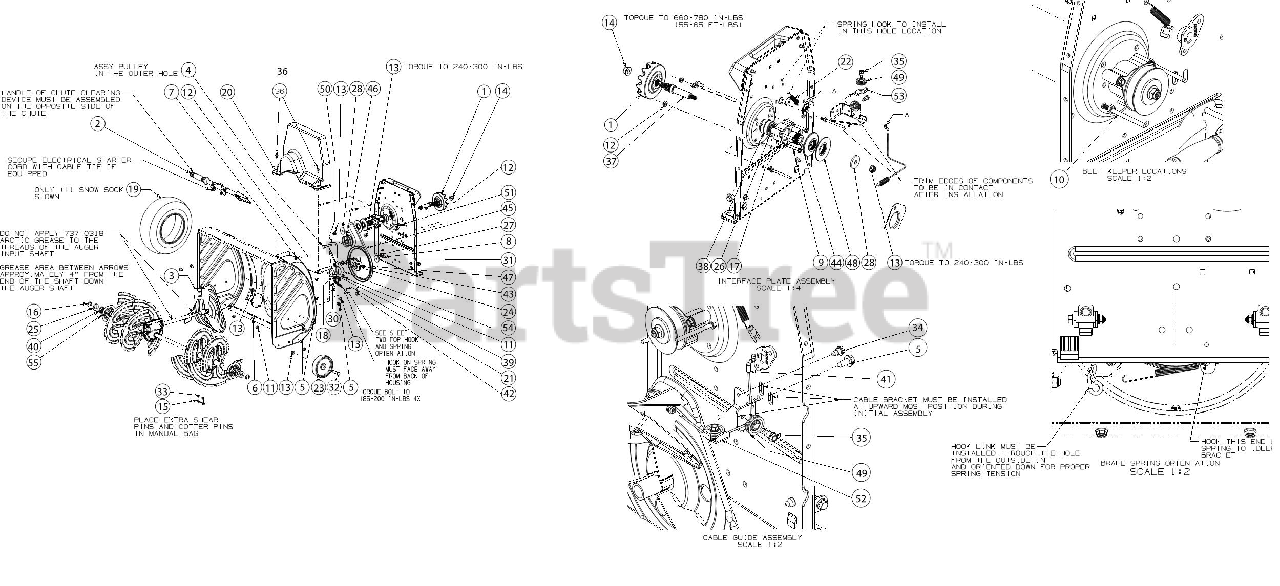

23AABA6X711 - Troy-Bilt FLEX Snow Thrower Attachment (2017) Housing Hardware Parts Diagram

FLEX Snow Thrower Attachment

Housing Hardware Parts Diagram

  • Title
1

Troy-Bilt 931-05304

DOG CLUTCH ASSEMBLY

$83.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 931-05304

DOG CLUTCH

$83.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 735-05109

DOG CLUTCH BUMPER

$2.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 731-11421

CLEANOUT TOOL MOUNTING CLIP

$11.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 931-2643

CLEANOUT TOOL

$19.99

$

In Stock, Qty 16

0

3

Troy-Bilt 684-04057C-0637

IMPELLER ASSEMBLY-12"

$73.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-1325

SCREW 1/4-20 X1.625

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 711-06425

BELT KEEPER .25X2.64

$8.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

17

Troy-Bilt 718-04261

BEARING CUP

$20.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 926-04012

PUSH ON NUT
(Superseded to 726-04012)

$

$

Not available

19

Troy-Bilt 727-05068

SNOW SOCK 13" x 4"

$55.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 731-10496

SNOW COVER HOUSING

$26.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 732-04460

EXTENSION SPRING .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 732-04826A

EXTENSION SPRING

$3.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 734-0973

PLASTIC WHEEL 5X1.38

$12.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0174

WAVE WASHER .660 ID X.88 OD x .010

$6.99

$

In Stock, Qty 12

0

25

Troy-Bilt 736-0188

FLAT WASHER .760ID X1.49OD x .06

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-04516

SHIM WASHER

$6.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 736-0505

FLAT WASHER

$6.49

$

In Stock, Qty 11

0

28

Troy-Bilt 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

29

N/A

ARCTIC GREASE (NOT SERVICEABLE)

$

$

Not available

30

Troy-Bilt 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 938-0281

SHOULDER SCREW .625
(Superseded to 738-0281)

$

$

Not available

32

Troy-Bilt 938-0373

SHOULDER SCREW

$9.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 738-04278

SHOULDER SCREW 1/4-20X.50 19"PSH

$6.99

$

In Stock, Qty 5

0

35

Troy-Bilt 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 738-04549A

TORX SHOULDER SCREW 1/4-20

$7.49

$

In Stock, only 2 left!

0

37

Troy-Bilt 738-05104A

DRIVE SPINDLE

$39.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 941-0600

BALL BEARING

$25.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 941-0309

FLANGE BEARING

$74.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 741-05041

FLANGE BEARING

$9.99

$

In Stock, Qty 7

0

41

Troy-Bilt 946-05200A

AUGER CLUTCH CABLE

$16.99

$

Usually ships in 3-6 days

0

42

$5.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 748-04053A

ADAPTER PULLEY .75 DIA W/DD

$22.99

$

In Stock, only 3 left!

0

44

Troy-Bilt 750-06280

SPACER-.670ID x 1.185

$9.49

$

Usually ships in 3-6 days

0

45

Troy-Bilt 954-05071

BELT 34.50

$32.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 756-0117

IDLER PULLEY

$23.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 756-04109

AUGER PULLEY

$54.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 756-04113

HALF PULLEY 4L V x 2.6 OD
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

49

Troy-Bilt 756-0625

CABLE GUIDE ROLLER

$9.49

$

In Stock, Qty 14

0

50

Troy-Bilt 787-03288-0637

IDLER BRACKET

$6.49

$

Usually ships in 3-6 days

0

51

Troy-Bilt 787-03293A

CABLE FLEX BRACKET

$11.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 787-03311-0637

CABLE BRACKET

$15.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 787-03446

CABLE GUIDE BRACKET

$7.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 790-00075A

BEARING HOUSIN 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 12

0

55

Troy-Bilt 790-00534-0637

HEX BREARING HOUSING

$13.99

$

In Stock, only 2 left!

0
