23AABA6X711 - Troy-Bilt FLEX Snow Thrower Attachment (2015) FLEX Snow Thrower Attachment-Auger & Housing Parts Diagram

FLEX Snow Thrower Attachment

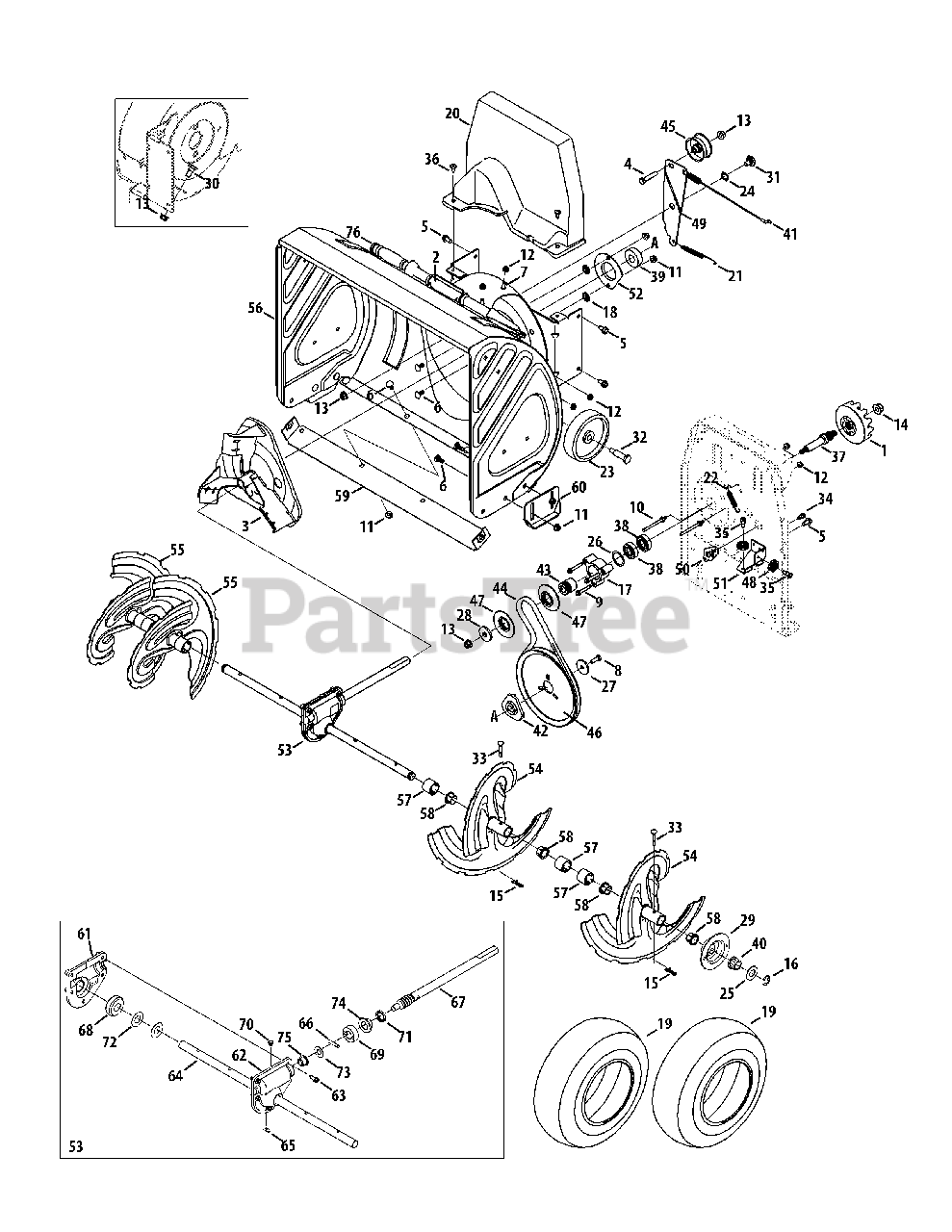

FLEX Snow Thrower Attachment-Auger & Housing Parts Diagram

  • Title
1

Troy-Bilt 931-05304

Clutch Assembly

$83.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 731-2635

Clean-Out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

3

Troy-Bilt 684-04057B-0637

Impeller Assembly, 12"
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 5

0

4

Troy-Bilt 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0703

Carriage Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 15

0

8

Troy-Bilt 710-1245B

Hex Cap Screw, 5/16-24 x .875

$8.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-1325

Self-tapping Screw, 1/4-20 x 1.625

$4.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 711-06425

Belt Keeper, .25 Dia. x 2.64

$8.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 916-0231

E-Ring, .750
(Superseded to 716-0231)

$

$

Not available

17

Troy-Bilt 718-04261

Bearing Cup

$20.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 926-04012

Nut, Push-on, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

19

Troy-Bilt 727-05068

Snow Sock, 13" x 4"

$55.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 731-10496

Snow Cover Housing

$26.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 732-04460

Extension Spring, .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 732-04826A

Extension Spring, 2.675

$3.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 734-0973

Deck Wheel, 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0174

Wave Washer, .625 x .885 x .015

$6.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-04516

Washer, 1.25 x 1.57 x .01

$6.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 736-0505

Flat Washer, .340 x 1.50 x .150

$6.49

$

In Stock, only 2 left!

0

28

Troy-Bilt 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

29

Troy-Bilt 790-00534-0637

Hex Bearing Housing

$13.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 738-0143

Shoulder Screw, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 938-0281

Screw, Shoulder, .625 x .17 x 3/8-16
(Superseded to 738-0281)

$

$

Not available

32

Troy-Bilt 938-0373

Shoulder Bolt, .496 x 1.525

$9.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 7

0

35

Troy-Bilt 738-04425

Shoulder Bolt, 1/4-28 x .342 x .335

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

37

Troy-Bilt 738-05104A

Drive Spindle Plate

$39.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 941-0600

Ball Bearing, 17 x 40 x 12

$25.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 941-0309

Bearing, Ball, .75 x 1.85

$74.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 741-05041

Hex Flange Bearing

$9.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 946-05200A

Auger Clutch Cable

$16.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 748-04053A

Pulley Adapter, .75 DIA

$22.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 750-06280

Spacer, .670 ID x 1.185 OD

$9.49

$

Usually ships in 3-6 days

0

44

Troy-Bilt 954-05071

Belt, 34.56

$32.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 756-0117

Idler Pulley, 2.46 OD

$23.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 756-04109

Auger Pulley, 8.1 x .5

$54.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 756-04113

Pulley, Half, 4L-V x 2.600
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

48

Troy-Bilt 756-0625

Roller Cable

$9.49

$

In Stock, Qty 16

0

48

Troy-Bilt 787-03446

Cable Guide Bracket

$7.49

$

Usually ships in 3-6 days

0

49

Troy-Bilt 787-03288-0637

Auger Idler Bracket

$6.49

$

Usually ships in 3-6 days

0

50

Troy-Bilt 787-03293

Snow Cable Bracket
(Superseded to 787-03293A)

$11.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 787-03311-0637

Cable Bracket

$15.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 790-00075

Bearing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

53

Troy-Bilt 918-04172C

Gearbox Ass'ly, 26", includes 38-52

$434.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 684-04107A-0638

Spiral Assembly, LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 7

0

55

Troy-Bilt 684-04108A-0638

Spiral Assembly, RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 14

0

56

Troy-Bilt 684-05102A-0638

Auger Housing Assembly, 26"

$293.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 731-04870

Spacer, 1.25 x .75 x 1.00

$4.99

$

In Stock, Qty 18

0

58

Troy-Bilt 741-0493A

Bushing, Flange, .800 x .910
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 790-00121-0638

Shave Plate, 26"
(Superseded to 790-00121-0637)

$36.99

$

In Stock, Qty 20+

0

60

Troy-Bilt 784-5580-0637

Skid Shoe, Standard

$23.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 918-0123A

Reducer, RH

$52.99

$

In Stock, Qty 10

0

62

Troy-Bilt 918-0124A

Reducer, LH

$52.99

$

In Stock, Qty 12

0

63

Troy-Bilt 710-0642

Screw, 1/4-20 x 0.750

$4.49

$

In Stock, Qty 20+

0

64

Troy-Bilt 711-06144

Auger Axle, 26"

$82.99

$

In Stock, only 1 left!

0

65

Troy-Bilt 914-0161

Key, Hi-Pro, 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 715-04021

Dowel Pin, .25 x 1.25

$4.49

$

In Stock, Qty 8

0

67

Troy-Bilt 917-04126

Worm Shaft, .75

$79.99

$

In Stock, only 4 left!

0

68

Troy-Bilt 917-04861

Gear Worm, 20T

$43.99

$

In Stock, Qty 20+

0

69

Troy-Bilt 718-04071

Collar Thrust, .756 x .600

$7.99

$

In Stock, Qty 10

0

70

Troy-Bilt 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

71

Troy-Bilt 721-0327

Oil Seal, .75 x 1.131 x .188

$6.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 936-0351

Washer, Flat, .760 x 1.50
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

73

Troy-Bilt 736-3084

Washer, Flat, .51 x 1.12

$4.99

$

In Stock, Qty 20+

0

74

Troy-Bilt 741-0662

Bearing, Flange, .75 x 1.00 x .59

$10.99

$

In Stock, Qty 20+

0

75

Troy-Bilt 741-0663

Bearing, Flange, .50 x .75 x .59

$9.99

$

In Stock, Qty 20+

0

76

Troy-Bilt 931-2643

Clean-Out Tool

$19.99

$

In Stock, only 1 left!

0
