23AAAA8X711 - Troy-Bilt FLEX Mower Attachment (2015) FLEX Mower Attachment-Mower Deck Parts Diagram

FLEX Mower Attachment

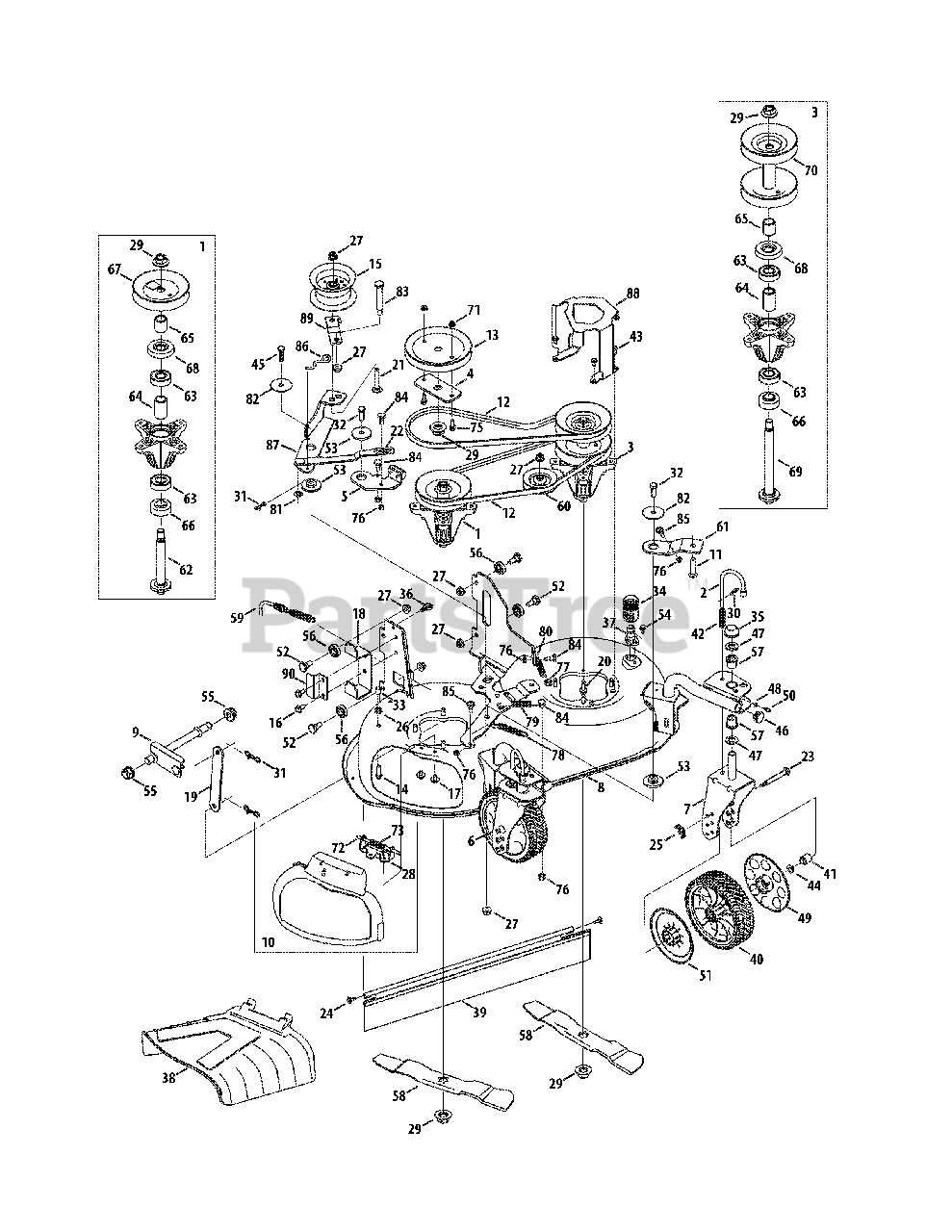

FLEX Mower Attachment-Mower Deck Parts Diagram

  • Title

1

Troy-Bilt 918-07028

Spindle Assembly, 5.08 Dia.

$97.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 747-0924

Lock Pin

$20.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-07088A

Spindle Assembly, 5.08 Dia.

$154.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 787-03431

Spacer, .79 x 1.25 x .175

$12.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 961-05007A

Deck Bracket Assembly

$39.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 682-9024-0638

Caster Bracket Assembly RH
(Superseded to 682-9024A-0638)

$81.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 682-9026-0638

Caster bracket Assembly LH
(Superseded to 682-9026A-0638)

$85.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 687-05091A-0638

Deck

$351.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 687-05111A

Deck Lift Assembly

$63.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 687-05133

Mulch Plug Assembly
(Superseded to 687-05133C)

$34.99

$

In Stock, Qty 6

0

11

Troy-Bilt 710-05376

Carriage Bolt, 3/8-16 x 1.75

$4.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 954-05103

Belt, A-Section, 43.10

$36.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 656-05005

Drive Pulley, 6.03 Dia.
(Superseded to 956-05005)

$

$

Not available

14

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 756-05117

Idler Pulley, 3.125 OD

$46.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 787-03232A-0637

Grassbag Bracket
(Superseded to 787-03232B-0637)

$34.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 787-03249A-0637

Lift Link Bracket

$6.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 710-0602

Self-Tapping Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-06072

Carriage Bolt, 3/8-16 x 2.25

$6.49

$

In Stock, only 1 left!

0

22

Troy-Bilt 687-05146

Brake weld Assembly

$25.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 911-1146

Caster Axle

$13.99

$

In Stock, Qty 11

0

24

Troy-Bilt 710-04669

Screw, #10-16 x .625"

$3.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 712-0397A

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt n/a

Chute Bracket

$

$

Currently unavailable

29

Troy-Bilt 712-05134

Hex Flange Nut, 5/8-18

$6.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 914-0104

Cotter Pin, .072 Dia. x 1.13 Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

34

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 726-0214

Push Cap, 5/8

$10.99

$

In Stock, Qty 5

0

36

Troy-Bilt 726-3055

Cable Retainer Clip

$6.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

38

Troy-Bilt 731-10510

Chute Deflector
(Superseded to 731-10510A)

$37.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 731-10534A

Trailshield

$16.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 634-04606

Front Wheel, 7 x 2

$33.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 750-06036

Caster Hub, Long
(Superseded to 750-06036A)

$4.49

$

In Stock, Qty 15

0

42

Troy-Bilt 932-0306A

Compression Spring, .531 x 1.75 Lg.

$8.49

$

In Stock, only 2 left!

0

43

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 750-06065

Caster Hub, Short

$4.49

$

In Stock, Qty 16

0

45

Troy-Bilt 710-0723

Hex Screw, 3/8-16, 1.25, Gr5

$4.99

$

In Stock, only 3 left!

0

46

Troy-Bilt 735-0246A

End Plug

$5.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 736-0366

Flat Washer, .640 x 1.12 x .125

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 736-04426

Flat Washer, .200 x .370 x .060

$5.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 931-05305A

Hubcap, 7"

$12.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 937-3000

Grease Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 731-09479

Dust Cover, 7"

$4.49

$

In Stock, only 4 left!

0

52

Troy-Bilt 738-0143

Shoulder Screw, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

55

Troy-Bilt 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 741-04430A

Ball Bearing, 50 x 1.125 x .312

$6.49

$

In Stock, only 2 left!

0

57

Troy-Bilt 741-0685

Flange Bearing, .631 ID

$4.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 942-05130

Blade
(Superseded to 742-05130-0637)

$20.99

$

In Stock, only 2 left!

0

59

Troy-Bilt 946-05176A

Clutch Cable

$42.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 756-04325

Idler Pulley, V-Type x 3.06

$24.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 787-03421

Idler Bracket

$18.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 738-1186A

Spindle Shaft, 6.11 Long

$49.99

$

In Stock, Qty 14

0

63

Troy-Bilt 941-0919B

Ball Bearing

$21.99

$

In Stock, Qty 20+

0

64

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 750-06414

Spacer, .795 x 1.062 x 1.015

$12.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 750-06365

Spacer, .79 x 1.82 x .79

$6.49

$

Usually ships in 3-6 days

0

67

Troy-Bilt 756-05086

Deck Pulley

$20.99

$

In Stock, only 1 left!

0

68

Troy-Bilt 783-08435

Bearing Shield

$7.49

$

Usually ships in 3-6 days

0

69

N/A

Spindle Shaft, 8.27 Long

$

$

Not available

70

Troy-Bilt 756-05165

Pulley Spindle Assembly, 5.08 Dia.

$51.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

73

Troy-Bilt 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

75

Troy-Bilt 710-04666

Hex Flange Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

76

Troy-Bilt 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

77

Troy-Bilt 712-0375

Hex Lock Nut, 3/8-16, Centerlock

$4.49

$

In Stock, Qty 6

0

78

Troy-Bilt 932-0429A

Extension Spring, .5 x 3.97

$8.99

$

In Stock, Qty 20+

0

79

Troy-Bilt 732-05322

Extension Spring, .500 Dia. x 4.233

$6.49

$

In Stock, only 1 left!

0

80

Troy-Bilt 732-05369

Extension Spring, .500 Dia. x 3.445

$6.49

$

In Stock, only 1 left!

0

81

Troy-Bilt 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

82

Troy-Bilt 736-3040

Flat Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 6

0

83

Troy-Bilt 938-0481A

Shoulder Screw, .5 x 2.62, 3/8-16

$6.99

$

In Stock, Qty 18

0

84

Troy-Bilt 938-0974

Shoulder Screw, .375 x .380, 1/4-20
(Superseded to 738-0974)

$

$

Not available

85

Troy-Bilt 738-1023A

Shoulder Screw, .375 x .280, 1/4-20

$4.49

$

In Stock, Qty 5

0

86

Troy-Bilt 747-06506

Spring Hook Rod

$6.49

$

In Stock, only 2 left!

0

87

Troy-Bilt 787-03422

Drive Bracket

$35.99

$

In Stock, only 1 left!

0

88

Troy-Bilt 787-03424

Keeper Bracket

Variations

Troy-Bilt 787-03424-0637

Belt Keeper Bracket - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 787-03428A

Keeper Bracket

Variations

Troy-Bilt 787-03428A-0637

BRACKET-KEEPER - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

90

Troy-Bilt 787-03467

Retainer Bracket

Variations

Troy-Bilt 787-03467-0637

BRACKET-RETAIN - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0
