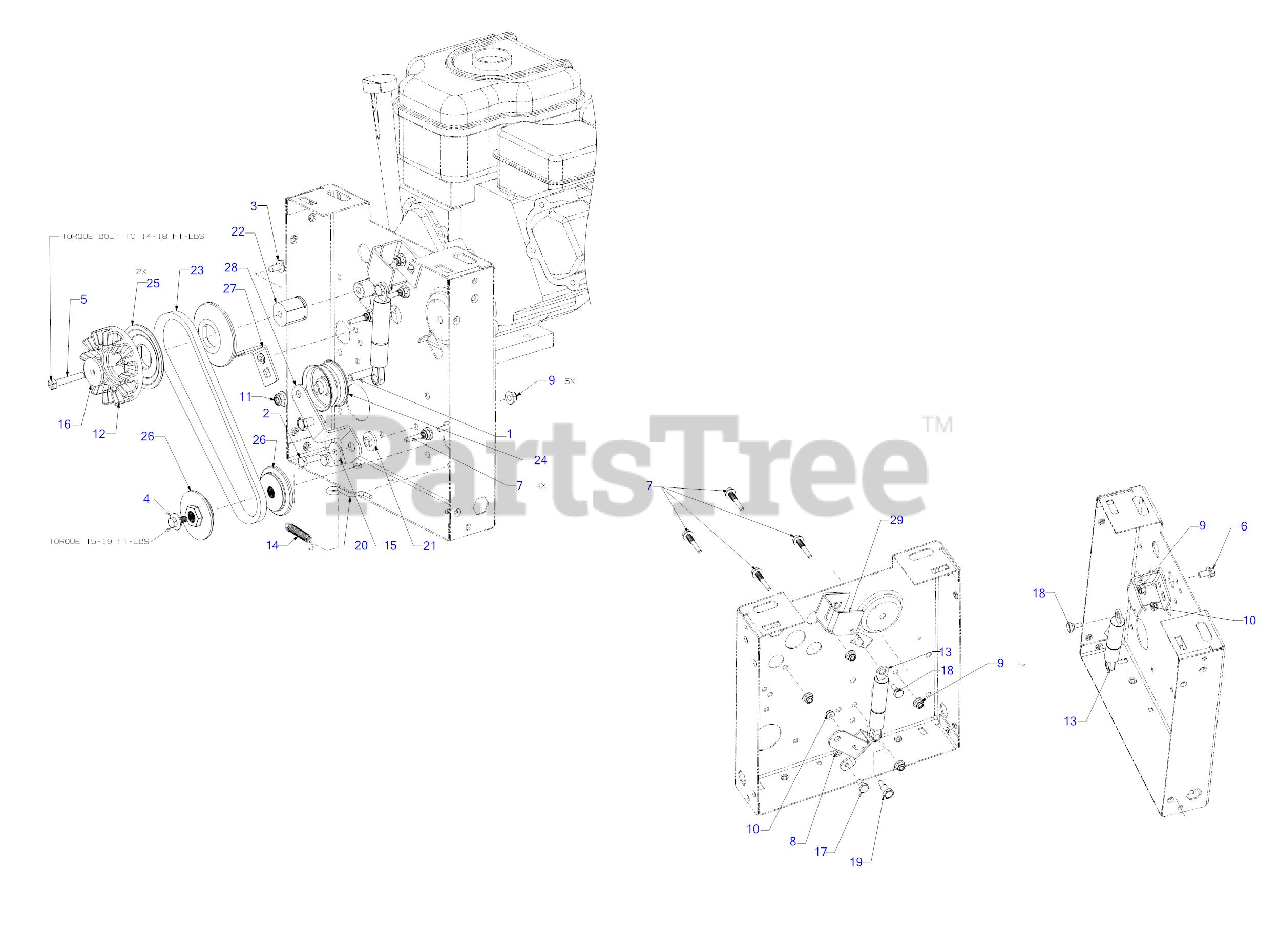

23A-1AXA766 - Troy-Bilt FLEX Power Unit (2018) Drive Assembly Parts Diagram

FLEX Power Unit

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

3

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-06303

SCREW 5/16-24 x 1.88 GR8

$6.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0759

SCREW 5/16-18 x .625 GR5

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 711-06112

BELT KEEPER ROD .25 x 1.585

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 912-0291

HEX NUT
(Superseded to 712-0291)

$

$

Not available

9

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 15

0

12

Troy-Bilt 717-05249

DOG CLUTCH

$52.99

$

Usually ships in 3-6 days

0

13

MTD 727-05021

DAMPER CYLINDER
(Superseded to 727-05134)

$73.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 732-05150A

EXTENSION SPRING 2.675"

$4.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 736-04117

FLAT WASHER 1.0 OD:.331 ID

$3.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 736-0505

FLAT WASHER

$6.49

$

In Stock, Qty 12

0

17

Troy-Bilt 938-0137A

SHOULDER SCREW .340
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

18

Troy-Bilt 738-04419A

SHOULDER SCREW

$4.49

$

In Stock, Qty 11

0

19

Troy-Bilt 738-05034

SHOULDER BOLT .395 DIA x .56 LG

$7.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 747-06506

ROD HOOK

$6.49

$

In Stock, only 2 left!

0

21

Troy-Bilt 748-0234

SHOULDER SPACER

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 750-06352

SPACER

$23.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 954-05070

V-BELT 4L x 27

$23.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 756-0117

IDLER PULLEY

$23.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 756-05103

HALF PULLEY 3.4 DIA

$17.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 756-05118

HALF PULLEY 2.6 DIA

$13.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 787-03297-0637

PTO CABLE BRACKET

$6.49

$

Usually ships in 3-6 days

0

28

MTD 787-03656

DRIVE ACTUATOR IDLER BRACKET

$16.99

$

Usually ships in 3-6 days

0

29

MTD 787-03658-0638

DAMPENER CABLE BRACKET

$20.99

$

Usually ships in 3-6 days

0
