23A-1AXA711 - Troy-Bilt FLEX Power Unit (2017) Transmission Parts Diagram

FLEX Power Unit

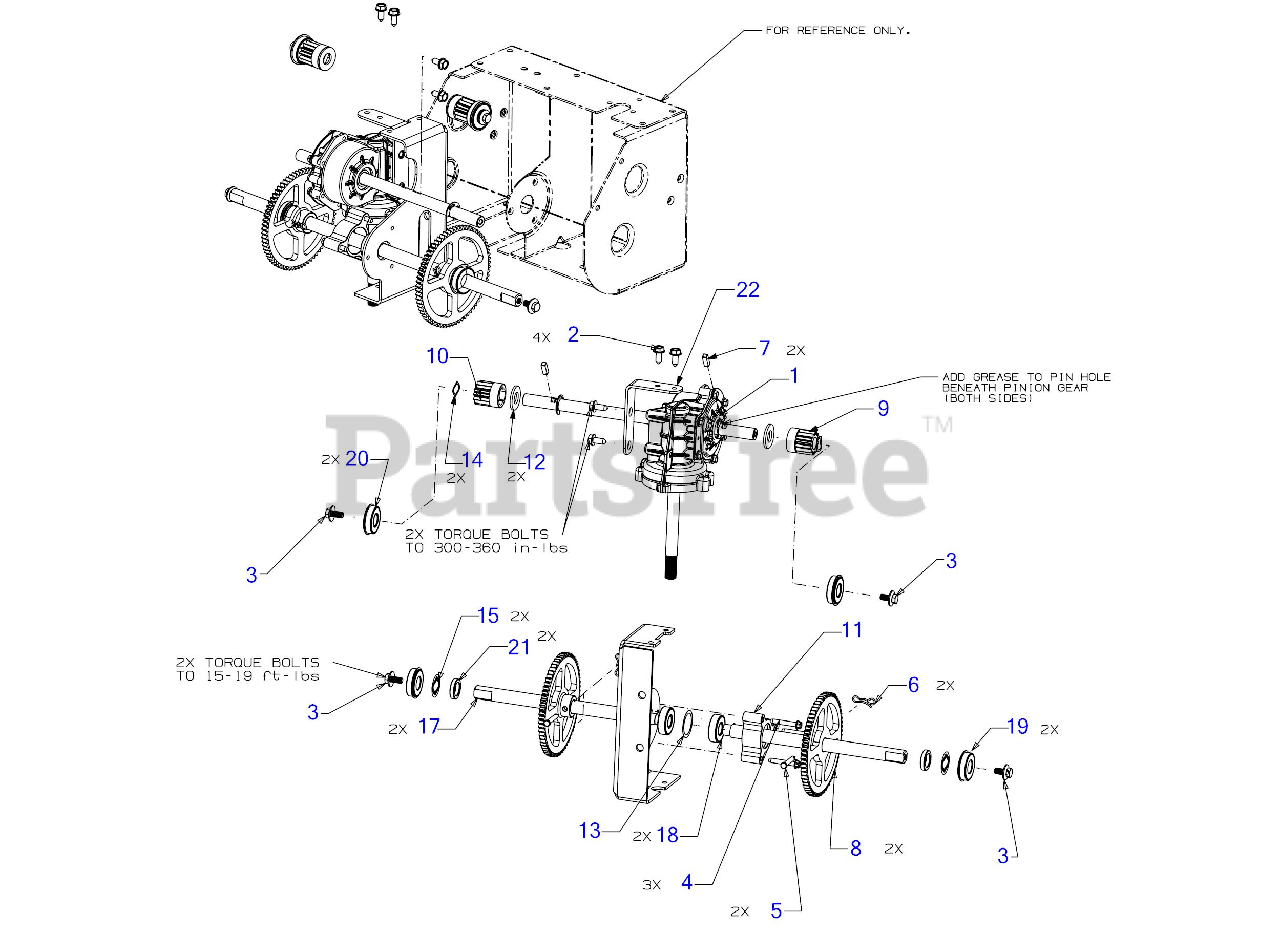

Transmission Parts Diagram

  • Title

1

Troy-Bilt 918-07074

TRANSMISSION ASSEMBLY

$385.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 941-0600

BALL BEARING

Note: (Not Shown)

$25.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 715-0108

SPRING PIN 1/4 x 1.00

Note: (Not Shown)

$4.99

$

In Stock, Qty 15

0

1

Troy-Bilt 941-0600

BALL BEARING

Note: (Not Shown)

$25.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 916-0231

E-RING
(Superseded to 716-0231)

Note: (Not Shown)

$

$

Not available

1

Troy-Bilt 710-1652

SCREW 1/4-20X.625

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 915-0221

DOWEL PIN

Note: (Not Shown)

$4.49

$

In Stock, Qty 13

0

1

Troy-Bilt 916-3020

INTERNAL SNAP RING

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 19

0

4

Troy-Bilt 710-1325

SCREW 1/4-20 X1.625

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 711-1364

PIN

$8.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 715-05041

SQUARE KEY

$6.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 917-04073A

GEAR 70T

$60.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 717-05276

SPUR GEAR 14T (LH)
(Superseded to 917-05276)

$19.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 917-05277

SPUR GEAR 14T (RH)

$19.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 718-04261

BEARING CUP

$20.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 736-04376

INPUT SHAFT WASHER

$6.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 736-04516

SHIM WASHER

$6.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 736-05127

WAVE WASHER

$5.49

$

Usually ships in 3-6 days

0

15

N/A

Not Serviced

$

$

Not available

17

Troy-Bilt 738-05120

AXLE

$30.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 741-04547

BALL BEARING

$9.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 741-05143A

BALL BEARING

$8.49

$

In Stock, Qty 11

0

20

Troy-Bilt 941-0563

BALL BEARING

$36.99

$

In Stock, Qty 11

0

21

Troy-Bilt 950-04191

SPACER

$6.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 787-03357B

ANTI-ROTATION BRACKET

$9.49

$

Usually ships in 3-6 days

0
