23A-1AXA711 - Troy-Bilt FLEX Power Unit (2015) 170-NU Crankcase Parts Diagram

FLEX Power Unit

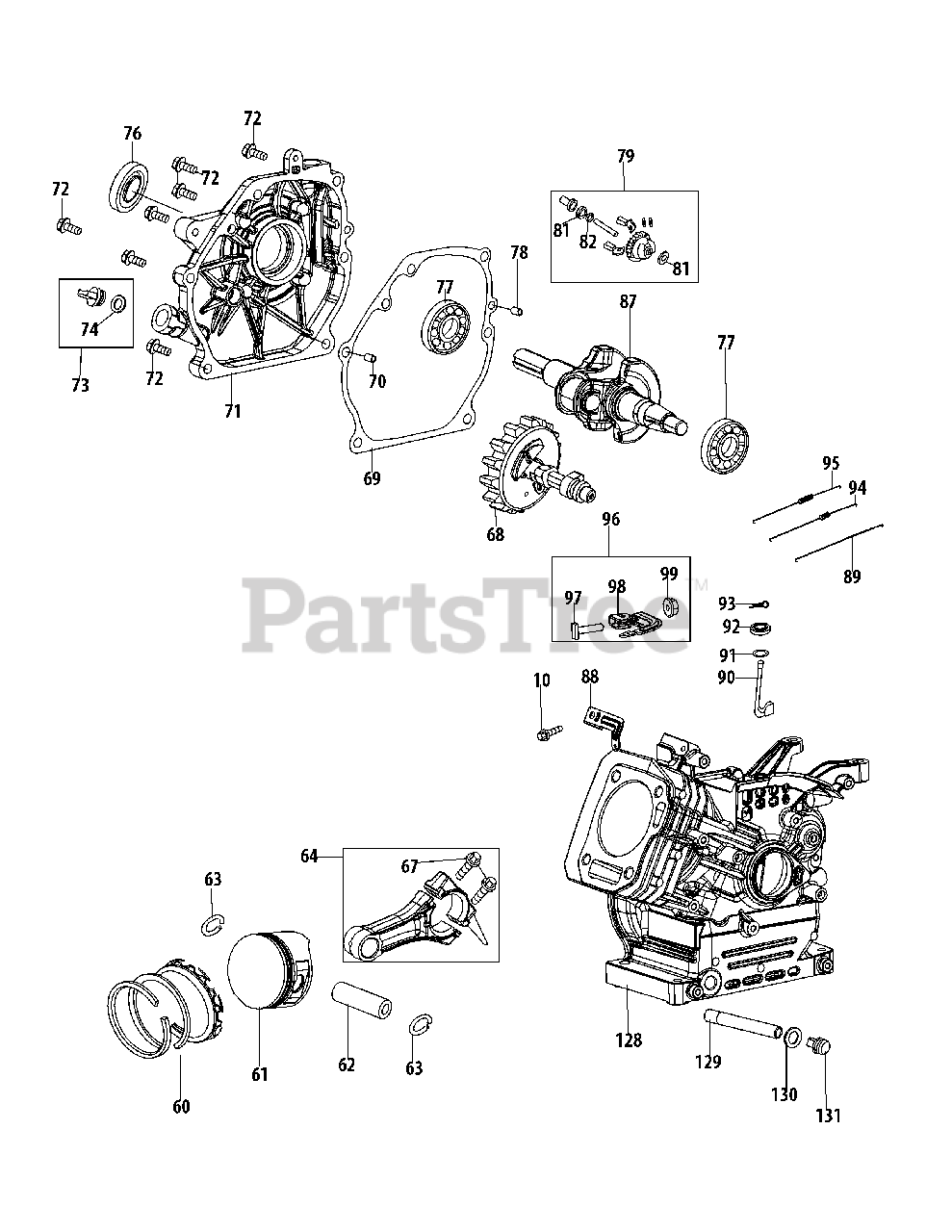

170-NU Crankcase Parts Diagram

  • Title

10

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

60

Troy-Bilt 951-14317

Piston Ring Set
(Superseded to 951-14317A)

$27.99

$

In Stock, only 4 left!

0

61

Troy-Bilt 751-15052

Piston
(Superseded to 951-15052)

$41.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 951-11633

Wrist Pin

$7.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 951-11632

Circlip

$4.49

$

Usually ships in 3-6 days

0

64

Troy-Bilt 951-11573

Connecting Rod
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

67

Troy-Bilt 710-05116

Connecting Rod Bolt

$4.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 751-15054

Camshaft
(Superseded to 951-15054)

$58.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 951-11371

Gasket, Crankcase Cover
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 715-04089

Dowel Pin 9×14

$3.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 751-15057

Crankcase Cover
(Superseded to 951-15057)

$89.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

73

Troy-Bilt 951-05020A

Oil Plug
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 951-11577

O-Ring 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

76

Troy-Bilt 951-11368

Oil Seal 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

77

Troy-Bilt 751-15055

Bearing Tm6205/P63
(Superseded to 951-15055)

$17.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 715-04096

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

79

Troy-Bilt 651-05292

Gear Governor
(Superseded to 951-05292)

$15.99

$

In Stock, only 1 left!

0

81

Troy-Bilt 936-05038

Washer 6.2×0.6×15

$4.99

$

In Stock, only 2 left!

0

82

Troy-Bilt 916-05003

Retaining Rings, Governor Shaft

$5.99

$

In Stock, only 1 left!

0

87

Troy-Bilt 751-15056

Crankshaft
(Superseded to 951-15056)

$143.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 951-11104

Spring Bracket

$3.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 951-10665

Rod Governor
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

90

Troy-Bilt 751-15053

Shaft,Governor Arm
(Superseded to 951-15053)

$9.49

$

Usually ships in 3-6 days

0

91

Troy-Bilt 736-04461

O-Ring 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 951-11902

Oil Seal 6×11×4
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

93

Troy-Bilt 714-04074

Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

94

Troy-Bilt 951-10954

Idle Spring

$6.49

$

In Stock, only 2 left!

0

95

Troy-Bilt 751-15035

Governor Spring
(Superseded to 951-15035)

$11.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 951-14089

Governor Lever

$7.99

$

Usually ships in 3-6 days

0

97

Troy-Bilt 710-04908

Bolt M6×21

$6.49

$

Usually ships in 3-6 days

0

98

Troy-Bilt 951-11106

Governor Lever

$7.99

$

Usually ships in 3-6 days

0

99

Troy-Bilt 712-05015

Flange Nut M6

$6.99

$

In Stock, Qty 6

0

128

Troy-Bilt 751-15058

Crankcase
(Superseded to 951-15058)

$164.99

$

Usually ships in 3-6 days

0

129

Troy-Bilt 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

130

Troy-Bilt 736-04440

Washer 10×1.5×16
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

131

Troy-Bilt 951-11499

Washer,Drain Bolt(M10×1.25×15)
(Superseded to 951-11499A)

$13.99

$

In Stock, only 2 left!

0

Troy-Bilt 952Z170-NU

Complete Engine

Note: (not shown)

$707.99

$

Usually ships in 3-6 days

0
