23A-1AXA711 - Troy-Bilt FLEX Power Unit (2015) 170-NU Carburetor Parts Diagram

FLEX Power Unit

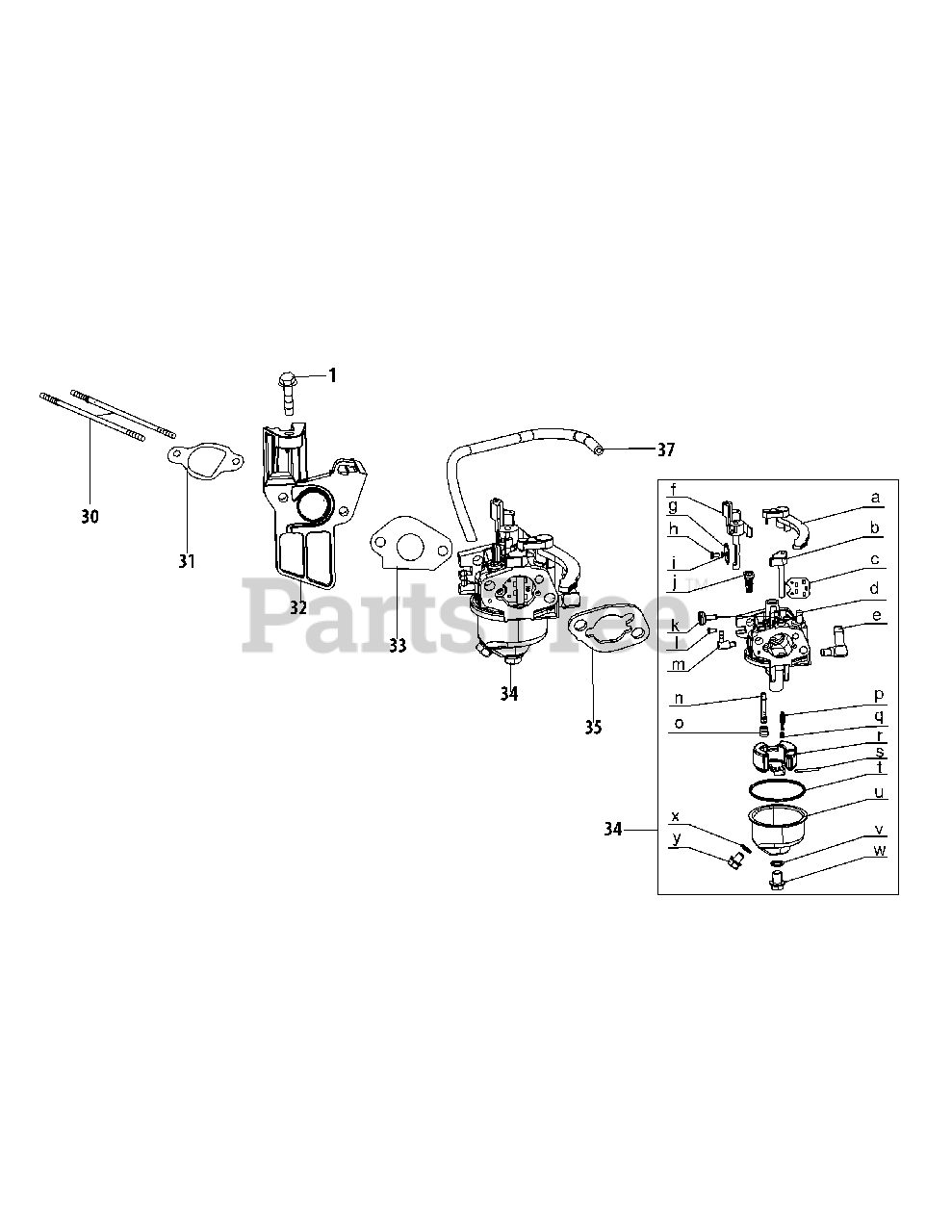

170-NU Carburetor Parts Diagram

  • Title
1

Troy-Bilt 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 710-05101

Stud M6×110

$4.49

$

In Stock, only 4 left!

0

31

Troy-Bilt 951-11567

Gasket, Carburetor Insulator
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 751-15032

Carburetor Insulator
(Superseded to 951-15032)

$6.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 651-05288

Carburetor
(Superseded to 951-05288)

$113.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 951-11571

Gasket,Air Cleaner

$5.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 951-14983

Fuel Hose 3.2×6.5×240

$8.49

$

Usually ships in 3-6 days

0

a

Troy-Bilt n/a

Choke Lever

$

$

Currently unavailable

b

Troy-Bilt n/a

Gasket

$

$

Currently unavailable

c

Troy-Bilt n/a

Choke Plate

$

$

Currently unavailable

d

Troy-Bilt n/a

Carburetor Body

$

$

Currently unavailable

e

Troy-Bilt n/a

Inlet Tube Assembly

$

$

Currently unavailable

f

Troy-Bilt n/a

Throttle Plate

$

$

Currently unavailable

g

Troy-Bilt n/a

Throttle Plate

$

$

Currently unavailable

h

Troy-Bilt n/a

Bolt M3×6

$

$

Currently unavailable

i

Troy-Bilt n/a

Washer 3

$

$

Currently unavailable

j

Troy-Bilt n/a

Idle Jet

$

$

Currently unavailable

k

Troy-Bilt n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

l

Troy-Bilt n/a

Mixture Screw

$

$

Currently unavailable

m

Troy-Bilt n/a

Primer Pipe

$

$

Currently unavailable

n

Troy-Bilt n/a

Nozzle Tube

$

$

Currently unavailable

o

Troy-Bilt n/a

Main Jet

$

$

Currently unavailable

p

Troy-Bilt n/a

Needle Valve

$

$

Currently unavailable

q

Troy-Bilt n/a

Needle Valve Spring

$

$

Currently unavailable

r

$

$

Currently unavailable

s

Troy-Bilt n/a

Float Pin

$

$

Currently unavailable

t

Troy-Bilt 751-11589

O-Ring, Float Bowl
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

u

Troy-Bilt 608-05000

Float Bowl
(Superseded to 908-05000)

$

$

Not available

v

Troy-Bilt 951-11348

O-Ring, Float Bowl
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

w

Troy-Bilt 710-04945

Bolt, Float Bowl

$4.49

$

In Stock, Qty 13

0

x

Troy-Bilt 951-11349

Gasket, Drain Bolt
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

y

Troy-Bilt 710-04938

Drain Bolt

$4.49

$

In Stock, Qty 10

0
