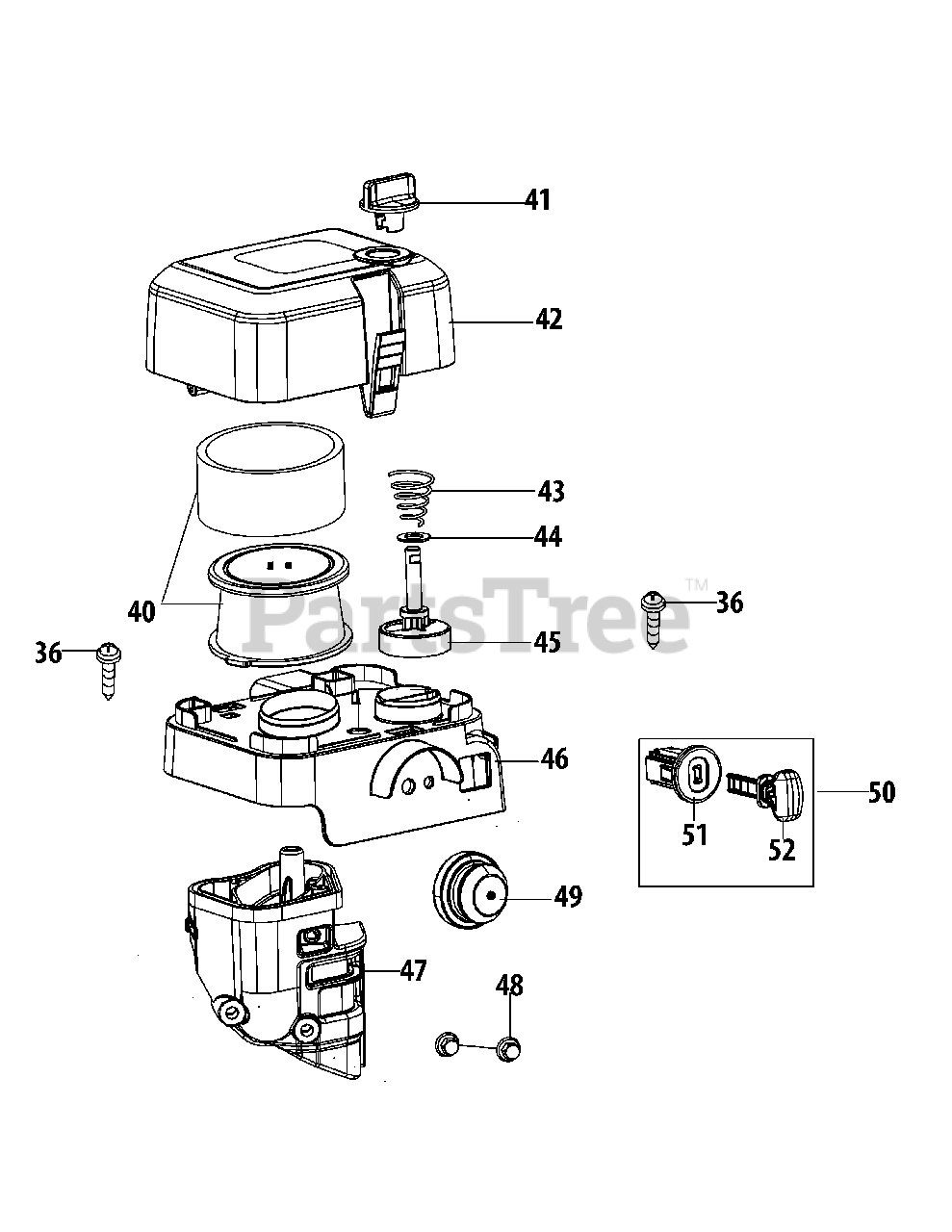

23A-1AXA711 - Troy-Bilt FLEX Power Unit (2015) 170-NU Air Cleaner Parts Diagram

FLEX Power Unit

170-NU Air Cleaner Parts Diagram

  • Title

36

Troy-Bilt 710-06179

Screw 4.2×20

$5.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 951-10794

Air Filter Element

$14.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 751-14741

Knob
(Superseded to 951-14741)

$4.49

$

Usually ships in 3-6 days

0

42

Troy-Bilt 751-14732

Air Filter Cover
(Superseded to 951-14732)

$14.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 751-15033

Taper Spring
(Superseded to 951-15033)

$3.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 751-15034

Washer 9×1×16
(Superseded to 951-15034)

$3.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 751-14731

The Air Filter Shaft
(Superseded to 951-14731)

$4.49

$

Usually ships in 3-6 days

0

46

Troy-Bilt 751-14730

Silencer Plate
(Superseded to 951-14730)

$12.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 751-14626

Air Filter Base
(Superseded to 951-14626)

$13.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 712-04213

Nut

$6.99

$

In Stock, only 3 left!

0

49

Troy-Bilt 951-10639A

Primer

$15.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 751-15022

Engine Switch
(Superseded to 951-15022A)

$10.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 951-10637

Engine Switch Base

$14.99

$

In Stock, Qty 8

0

52

Troy-Bilt 951-10630

Engine Switch Key

$6.99

$

In Stock, only 3 left!

0
