23899 (4050) - Toro Directional Drill with Cab (SN: 316000001 - 316999999) (2016) Rotary Box Assembly No. 133-6208-03 Parts Diagram

Directional Drill with Cab

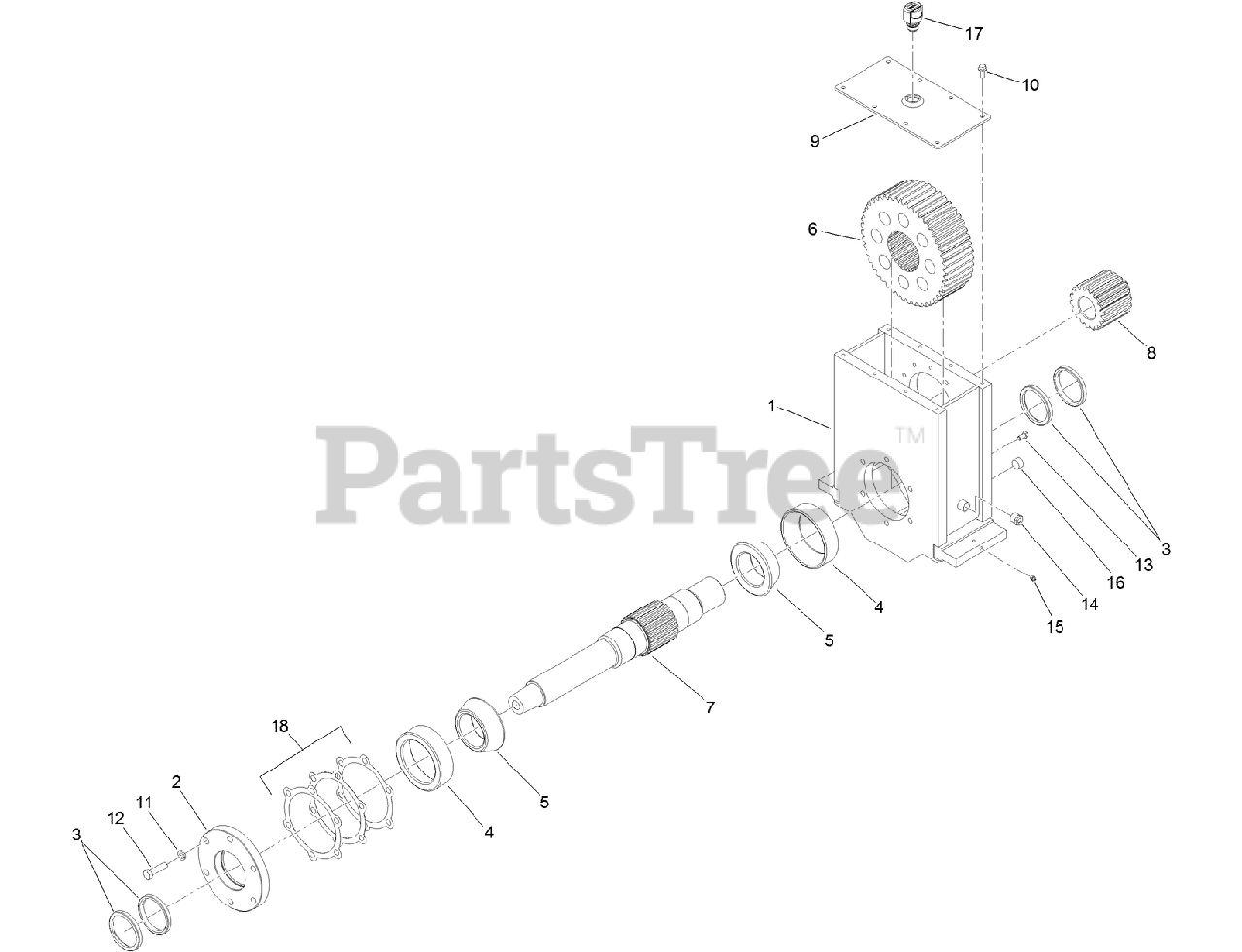

Rotary Box Assembly No. 133-6208-03 Parts Diagram

  • Title
1

Toro 125-6144

BOX-ROTARY

$

$

Currently unavailable

2

Toro AU32GB4412

CAP-BEARING, ROTARY

$

$

Currently unavailable

3

Toro AU8HS13033

SEAL-SHAFT

$

$

Currently unavailable

4

Toro AU8CF63007

CUP-BEARING

$

$

Currently unavailable

5

Toro AU8CF63008

CONE-BEARING

$

$

Currently unavailable

6

Toro AU32GB4465

GEAR-RING, ROTARY

$

$

Currently unavailable

7

Toro AU32GB4420

SPINDLE-ROTARY

$

$

Currently unavailable

8

Toro AU32GB4460

PINION-ROTARY

$

$

Currently unavailable

9

Toro 130-4512

ROTARY BOX COVER

$

$

Currently unavailable

10

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

11

Toro 3253-23

WASHER-LOCK

$5.49

$

In Stock, only 3 left!

0

12

Toro AU8HH51510

SCREW-HH

$

$

Currently unavailable

13

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

14

Toro AU8PP70008

PLUG-SITE, GLASS

$

$

Currently unavailable

15

Toro 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0

16

Toro AU8PP75012

PLUG-MAGNETIC, HEX

$

$

Currently unavailable

17

Toro 115-9793

BREATHER

$77.99

$

Usually ships in 3-6 days

0

18

Toro AU8SM00502

SHIM-BEARING ADJUST (.005)

$

$

Currently unavailable
