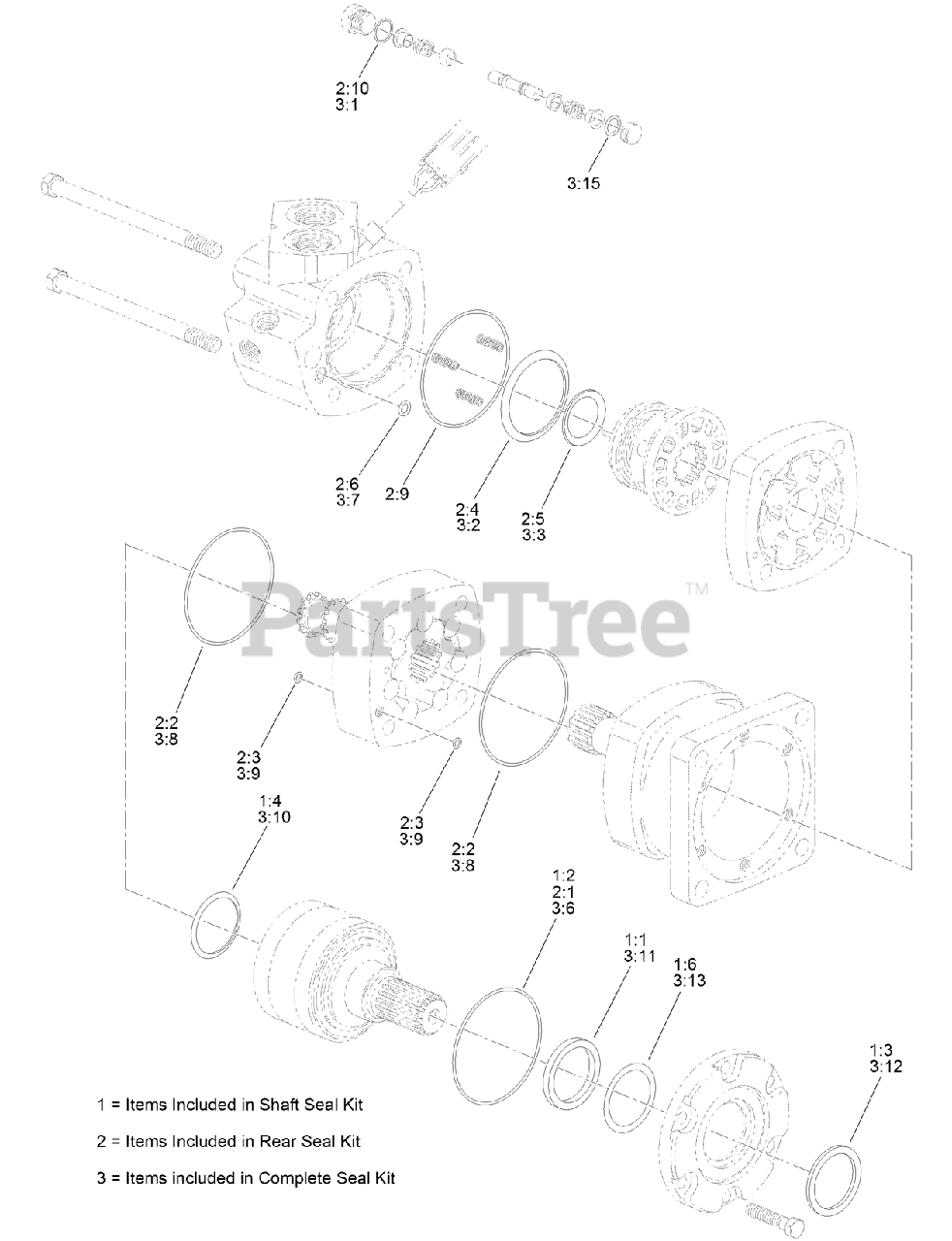

23898 (4050) - Toro Directional Drill (SN: 400000000 - 999999999) HYDRAULIC MOTOR ASSEMBLY NO. AU117459 Parts Diagram

Directional Drill

HYDRAULIC MOTOR ASSEMBLY NO. AU117459 Parts Diagram

  • Title

1

Toro 131-3439

SEAL KIT

$

$

Currently unavailable

1:1

SEAL

Note: Not serviced separately

$

$

Not available

1:2

O-RING

Note: Not serviced separately

$

$

Not available

1:3

SEAL-DUST

Note: Not serviced separately

$

$

Not available

1:4

Seal-Face, Shaft

Note: Not serviced separately

$

$

Not available

1:6

RING-BACKUP

Note: Not serviced separately

$

$

Not available

2

Toro 131-3440

SEAL KIT

$

$

Currently unavailable

2:1

O-RING

Note: Not serviced separately

$

$

Not available

2:2

O-RING

Note: Not serviced separately

$

$

Not available

2:3

O-RING

Note: Not serviced separately

$

$

Not available

2:4

Seal-Face, Outer

Note: Not serviced separately

$

$

Not available

2:5

Seal-Face, Inner

Note: Not serviced separately

$

$

Not available

2:6

O-RING

Note: Not serviced separately

$

$

Not available

2:9

SEAL

Note: Not serviced separately

$

$

Not available

2:10

O-RING

Note: Not serviced separately

$

$

Not available

3

Toro 131-3441

SEAL KIT

$

$

Currently unavailable

3:1

O-RING

Note: Not serviced separately

$

$

Not available

3:2

Seal-Face, Outer

Note: Not serviced separately

$

$

Not available

3:3

Seal-Face, Inner

Note: Not serviced separately

$

$

Not available

3:6

O-RING

Note: Not serviced separately

$

$

Not available

3:7

O-RING

Note: Not serviced separately

$

$

Not available

3:8

O-RING

Note: Not serviced separately

$

$

Not available

3:9

O-RING

Note: Not serviced separately

$

$

Not available

3:10

Seal-Shaft Face

Note: Not serviced separately

$

$

Not available

3:11

SEAL

Note: Not serviced separately

$

$

Not available

3:12

SEAL-DUST

Note: Not serviced separately

$

$

Not available

3:13

RING-BACKUP

Note: Not serviced separately

$

$

Not available

3:15

O-RING

Note: Not serviced separately

$

$

Not available
