23898 (4050) - Toro Directional Drill (SN: 400000000 - 999999999) HYDRAULIC FUEL TANK AND FITTING ASSEMBLY Parts Diagram

Directional Drill

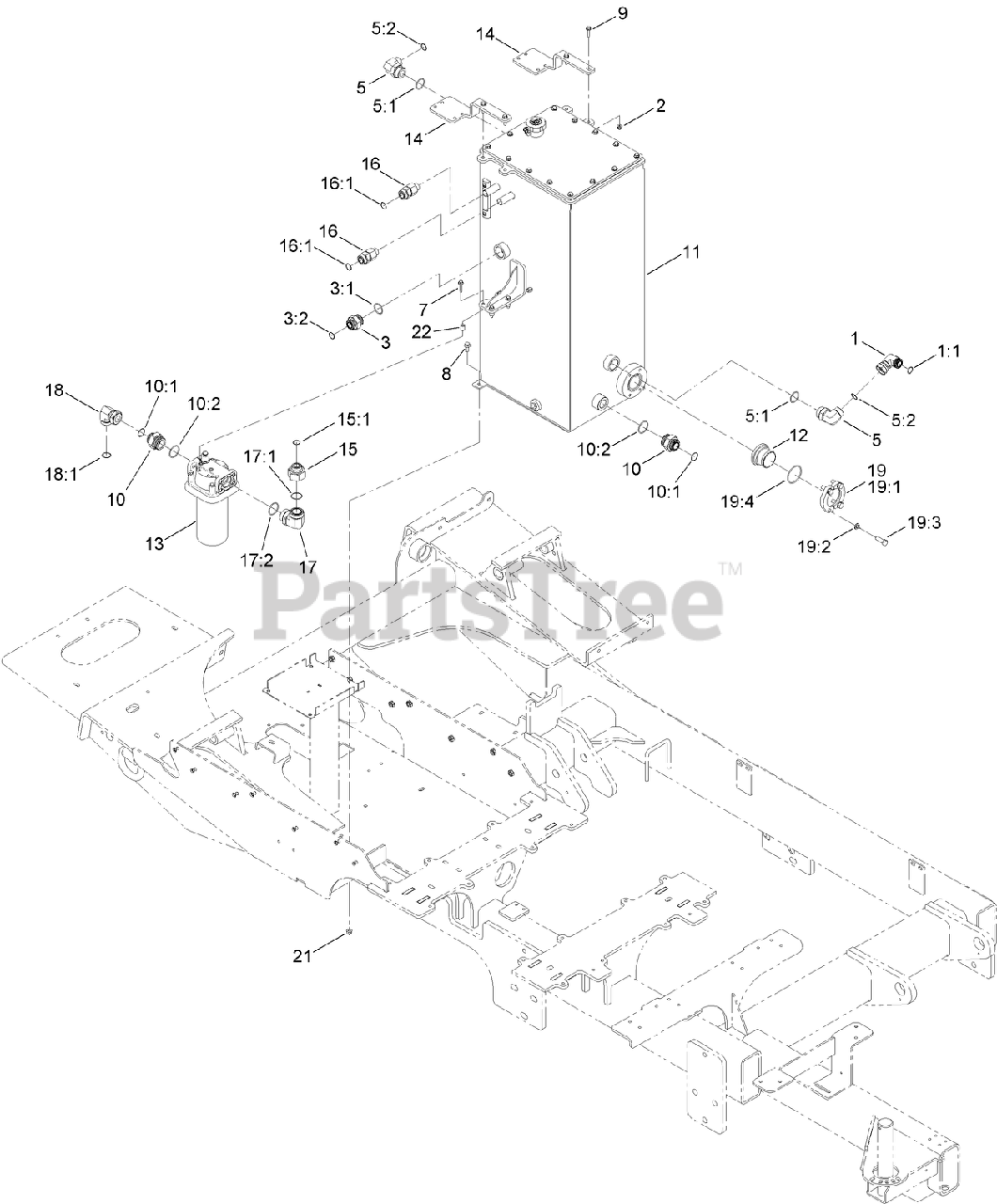

HYDRAULIC FUEL TANK AND FITTING ASSEMBLY Parts Diagram

  • Title
1

Toro 92-7645

FITTING-SWIVEL, 90 DEG

$55.99

$

Usually ships in 3-6 days

0

1:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

2

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

3

Toro 340-80

FITTING-STR

$77.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-101

O-RING

$4.49

$

In Stock, only 1 left!

0

3:2

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

5

Toro 340-79

FITTING-ELBOW 90

$239.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-101

O-RING

$4.49

$

In Stock, only 1 left!

0

5:2

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

7

Toro 112-9318

SCREW-HHF, LOCKING

$1.99

$

Usually ships in 3-6 days

0

8

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

9

Toro 33104-035

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Toro AU8OA32024

FITTING-STR

$

$

Currently unavailable

10:1

Toro 340-64

O-RING

$6.49

$

Usually ships in 3-6 days

0

10:2

Toro 340-136

O-RING

$7.49

$

Usually ships in 3-6 days

0

11

Toro AU116143

HYD TANK ASM

$

$

Currently unavailable

12

Toro AU117686

INSERT

$

$

Currently unavailable

13

Toro AU118533

FILTER-HYD, RETURN

$

$

Currently unavailable

13:1

Toro 133-6227

SEAL KIT

Note: Not illustrated

$

$

Currently unavailable

13:2

Toro 133-6228

INDICATOR

Note: Not illustrated

$

$

Currently unavailable

13:3

Toro 133-6229

FILTER ELEMENT

Note: Not illustrated

$

$

Currently unavailable

14

Toro AU123439-03

MOUNT-PLATE

$

$

Currently unavailable

15

Toro AU8OA81624

FITTING-REDUCER

$

$

Currently unavailable

15:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

16

Toro AU8OAB1616

FITTING-STRAIGHT

$

$

Currently unavailable

16:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

17

Toro AU8OL32424

FITTING-ELBOW 90

$

$

Currently unavailable

17:1

Toro 340-63

O RING

$4.99

$

Usually ships in 3-6 days

0

17:2

Toro 340-136

O-RING

$7.49

$

Usually ships in 3-6 days

0

18

Toro AU8OL82020

FITTING-ELBOW, 90

$

$

Currently unavailable

18:1

Toro 340-64

O-RING

$6.49

$

Usually ships in 3-6 days

0

19

Toro AU91-FF593-40

SPLIT FLANGE KIT

$

$

Currently unavailable

19:1

Flange

Note: Not serviced separately

$

$

Not available

19:2

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

19:3

Toro 121-1524

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

19:4

Toro 127-0980

O-RING

$

$

Currently unavailable

21

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

22

Toro 115-1451

SPACER-WHEEL

$13.99

$

Usually ships in 3-6 days

0
