23897 (FM 330) - Toro Diesel-Powered Fluid Mixer (SN: 400000000 - 999999999) PISTON AND CONNECTING ROD ASSEMBLY Parts Diagram

Diesel-Powered Fluid Mixer

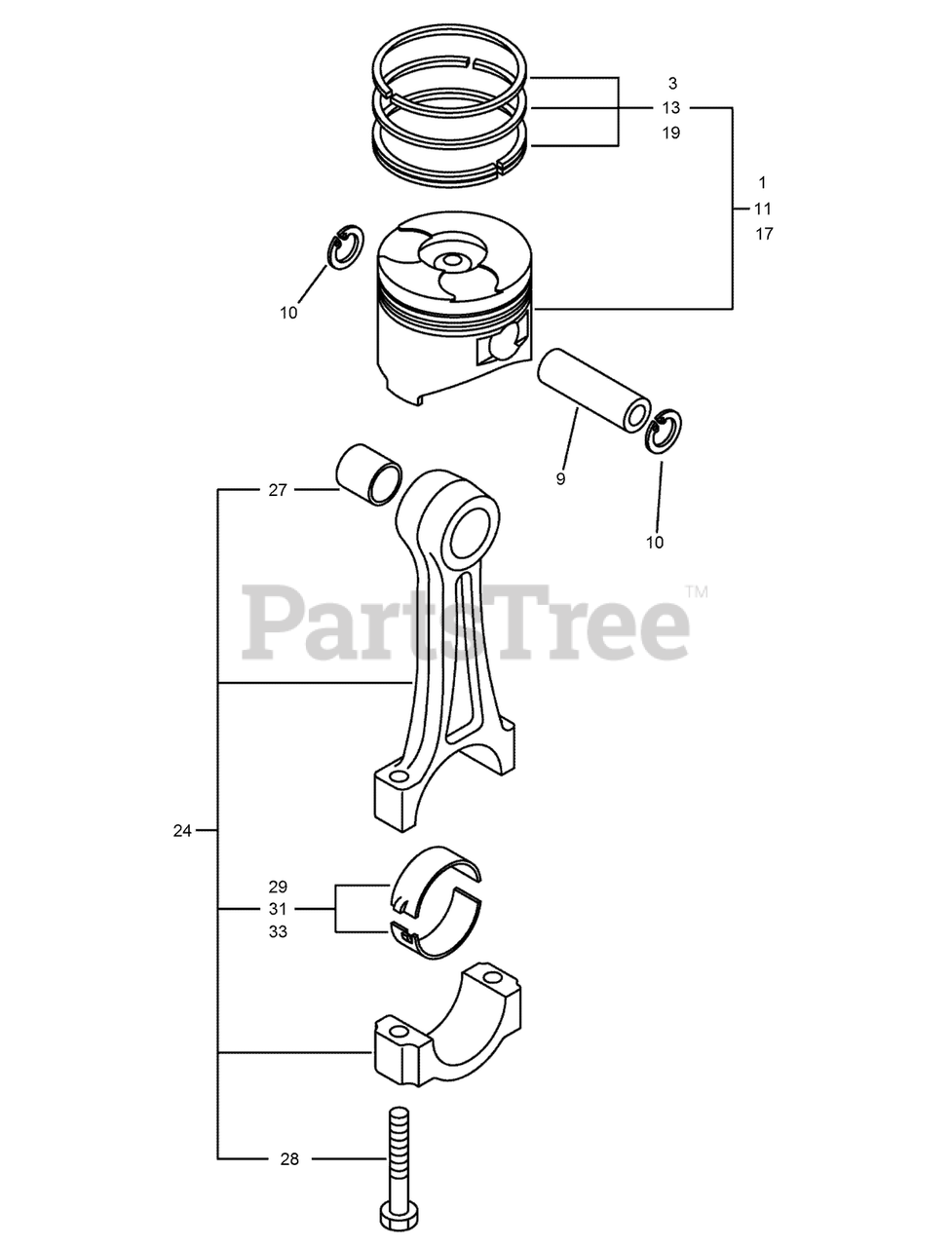

PISTON AND CONNECTING ROD ASSEMBLY Parts Diagram

  • Title

1

Toro 136-8278

PISTON W/RINGS

$497.99

$

Usually ships in 3-6 days

0

3

Toro 136-8270

PISTON RING SET

$158.99

$

Usually ships in 3-6 days

0

9

Toro 136-8202

PIN-PISTON

$86.99

$

Usually ships in 3-6 days

0

10

Toro 136-8130

RING-SEEGER

$3.99

$

Usually ships in 3-6 days

0

11

Toro 136-8277

PISTON W/RING (.25 O S)

$587.99

$

Usually ships in 3-6 days

0

13

Toro 136-8271

RING SET (O S=0.25)

$189.99

$

Usually ships in 3-6 days

0

17

Toro 136-8276

PISTON W/RING (.50 O S)

$587.99

$

Usually ships in 3-6 days

0

19

Toro 136-8272

RING SET (O S=0.50)

$189.99

$

Usually ships in 3-6 days

0

24

Toro 136-8274

CONNECTING ROD ASM

$480.99

$

Usually ships in 3-6 days

0

27

Toro 136-8224

BUSHING-PIN, PISTON

$18.99

$

Usually ships in 3-6 days

0

28

Toro 136-8131

BOLT-ROD, CONNECTING

$14.99

$

Usually ships in 3-6 days

0

29

Toro 136-8281

BEARING-PIN, CRANK

$42.99

$

Usually ships in 3-6 days

0

31

Toro 136-8282

BEARING ASM (0.25)

$47.99

$

Usually ships in 3-6 days

0

33

Toro 136-8283

BEARING (0.50 U S)

$47.99

$

Usually ships in 3-6 days

0
