23897 (FM 330) - Toro Diesel-Powered Fluid Mixer (SN: 400000000 - 999999999) ENGINE AND FRAME ASSEMBLY Parts Diagram

Diesel-Powered Fluid Mixer

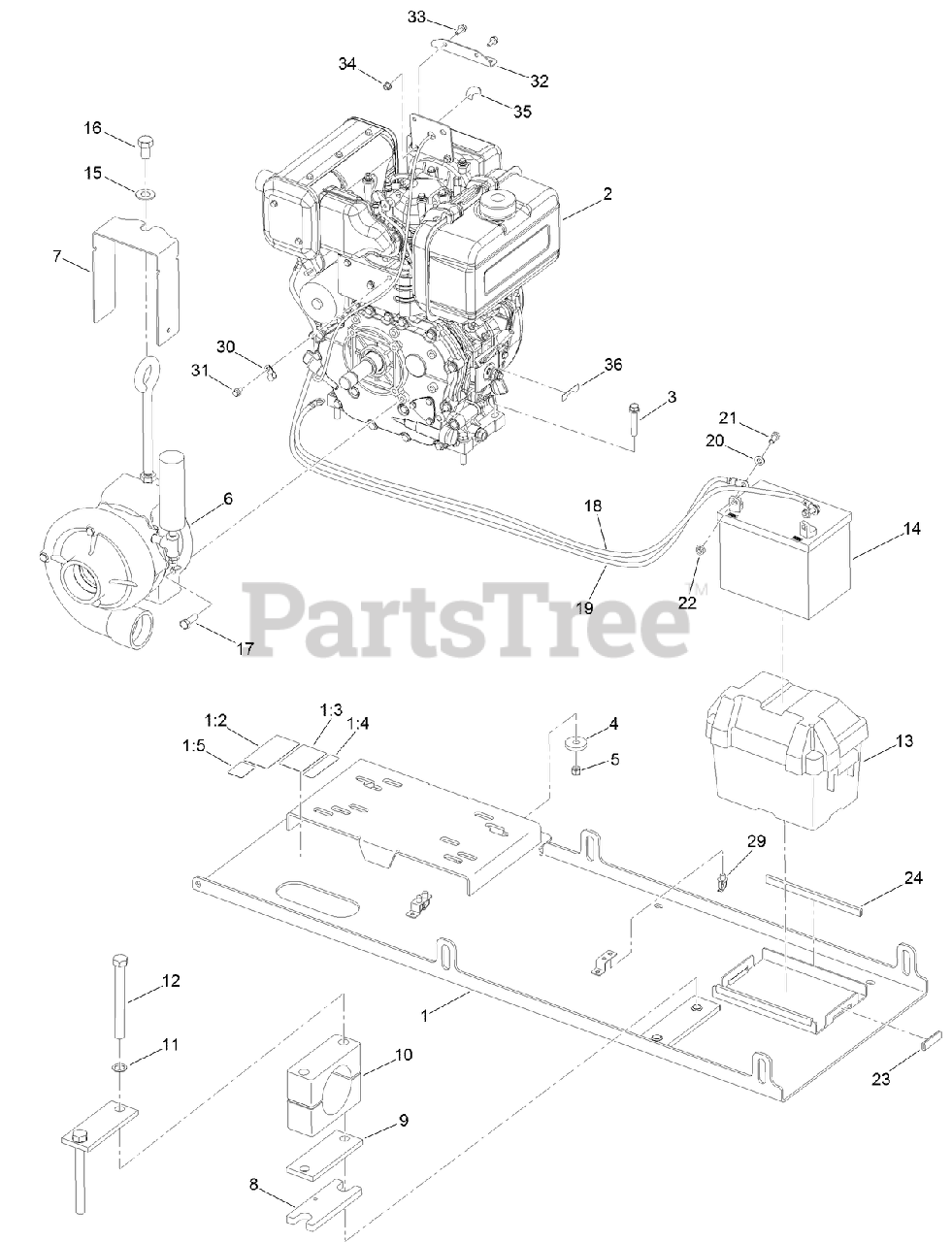

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 132-5653

BASE FRAME ASM

$

$

Currently unavailable

1:2

Toro 125-6155

DECAL-WARNING, MIXER

$

$

Currently unavailable

1:3

Toro 125-6156

DECAL-DRAIN

$

$

Currently unavailable

1:4

Toro 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

1:5

Toro 130-2845

DECAL-ULTRA LOW SULFUR DIESEL

$1.99

$

Usually ships in 3-6 days

0

3

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

2

Toro 132-5654

ENGINE-YANMAR, L100W

$

$

Currently unavailable

4

Toro 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 16

0

5

Toro 112-0236

NUT-LOCK

$5.99

$

Usually ships in 3-6 days

0

6

Toro AU10MM3304

PUMP ASM

$

$

Currently unavailable

7

Toro AU10MM3204-01

GUARD-COUPLER, ROTATING

$

$

Currently unavailable

$

$

Currently unavailable

9

Toro 125-4503-03

PLATE-CLAMP

$

$

Currently unavailable

10

Toro 125-4502

CLAMP-PIPE

$

$

Currently unavailable

11

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

12

$15.99

$

In Stock, only 1 left!

0

13

Toro 116-6673

BATTERY BOX ASM

$47.99

$

Usually ships in 3-6 days

0

14

Toro 99-7421

BATTERY
(Superseded to 104-8162)

$

$

Not available

15

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

16

Toro 327-2

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

17

Toro 120-9635

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

18

Toro 122-0215

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

19

Toro 122-0214

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

23

Toro 127-0997

TRIM-STRAP, BATTERY

$

$

Currently unavailable

24

Toro 127-5315

TRIM-TANK

$

$

Currently unavailable

29

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

30

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

31

Toro 33103-012

SCREW-HHF

$5.49

$

In Stock, only 2 left!

0

32

Toro 131-9020

BRACKET-SWITCH, KEY

$

$

Currently unavailable

33

Toro 33103-016

SCREW-HHF

$6.49

$

In Stock, Qty 12

0

34

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

35

Toro 125-6185

DECAL-IGNITION

$

$

Currently unavailable

36

Toro 125-6186

DECAL-THROTTLE

$

$

Currently unavailable
