23897 (FM 330) - Toro Diesel-Powered Fluid Mixer (SN: 400000000 - 999999999) CONTROL DEVICE ASSEMBLY Parts Diagram

Diesel-Powered Fluid Mixer

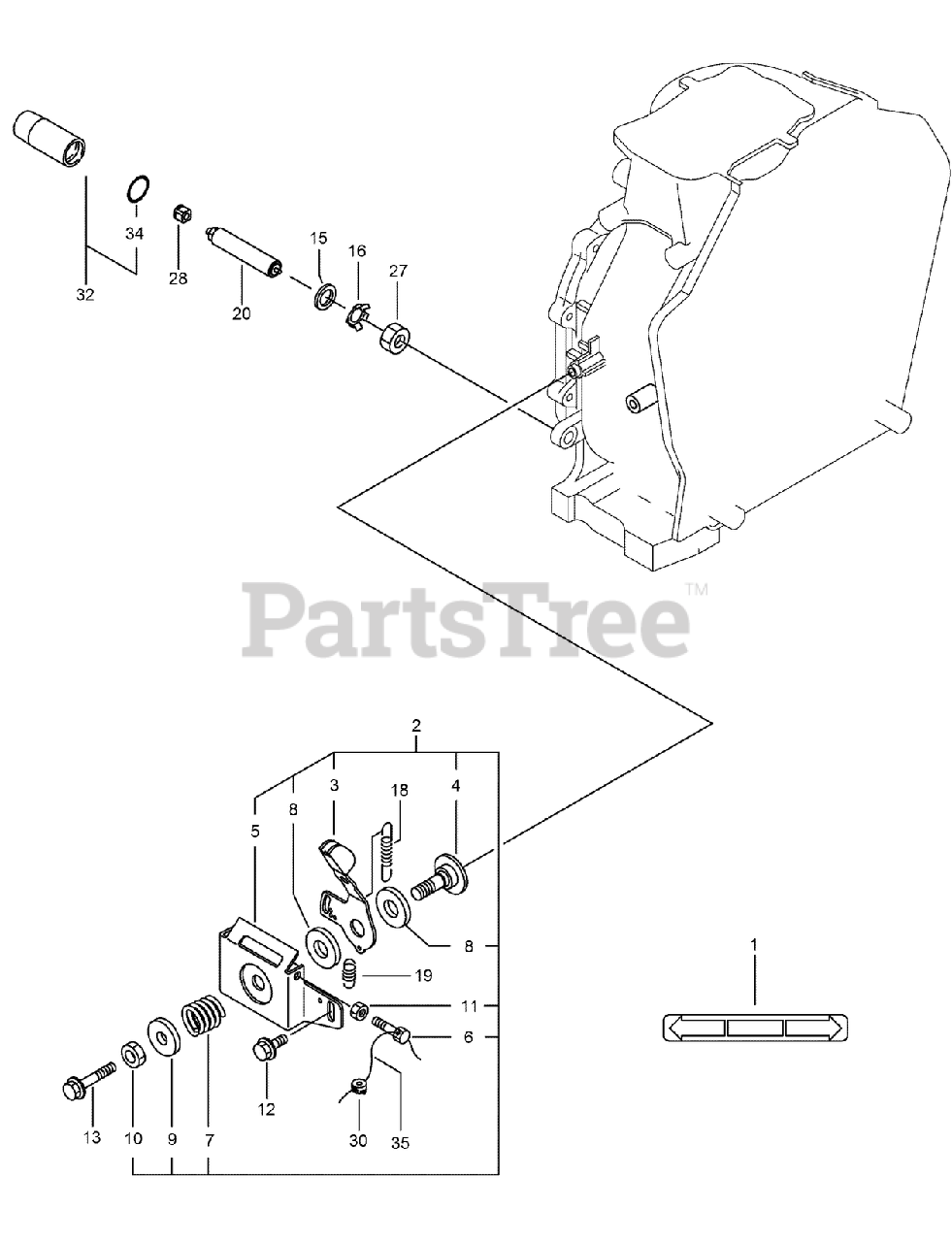

CONTROL DEVICE ASSEMBLY Parts Diagram

  • Title

1

Toro 136-8232

LABEL-OPERATION

$4.49

$

Usually ships in 3-6 days

0

2

Toro 136-8072

BRACKET ASM

$91.99

$

Usually ships in 3-6 days

0

3

Toro 137-8302

BRACKET ASM

$86.99

$

Usually ships in 3-6 days

0

4

Toro 136-8233

SHAFT-HANDLE

$23.99

$

Usually ships in 3-6 days

0

5

Toro 136-8071

BRACKET-HANDLE

$167.99

$

Usually ships in 3-6 days

0

6

Toro 136-8082

BOLT-ADJUSTING

$6.49

$

Usually ships in 3-6 days

0

7

Toro 136-8050

SPRING-HANDLE

$91.99

$

Usually ships in 3-6 days

0

8

Toro 136-8051

PLATE-FRICTION

$15.99

$

Usually ships in 3-6 days

0

9

Toro 136-8052

WASHER

$4.49

$

Usually ships in 3-6 days

0

10

Toro 136-8264

NUT

$3.49

$

Usually ships in 3-6 days

0

11

Toro 136-8266

NUT

$2.49

$

Usually ships in 3-6 days

0

12

Toro 125-7207

BOLT

$3.99

$

Usually ships in 3-6 days

0

13

Toro 136-8256

BOLT

$3.49

$

Usually ships in 3-6 days

0

15

Toro 136-8084

WASHER-PLAIN

$2.49

$

Usually ships in 3-6 days

0

16

Toro 136-8220

PLATE

$6.99

$

Usually ships in 3-6 days

0

18

Toro 136-8138

SPRING-REGULATOR

$10.99

$

Usually ships in 3-6 days

0

19

Toro 136-8111

SPRING-RETURN

$6.49

$

Usually ships in 3-6 days

0

20

Toro 136-8185

LIMITER ASM

$340.99

$

Usually ships in 3-6 days

0

27

Toro 136-8086

NUT

$6.99

$

Usually ships in 3-6 days

0

28

Toro 136-8113

CAP-LIMITER

$13.99

$

Usually ships in 3-6 days

0

30

Toro 136-8223

TIN

$17.99

$

Usually ships in 3-6 days

0

32

Toro 136-8085

PROTECTOR ASM

$52.99

$

Usually ships in 3-6 days

0

34

Toro 136-8249

O-RING

$3.99

$

Usually ships in 3-6 days

0

35

Toro 136-8243

WIRE

$9.49

$

Usually ships in 3-6 days

0
