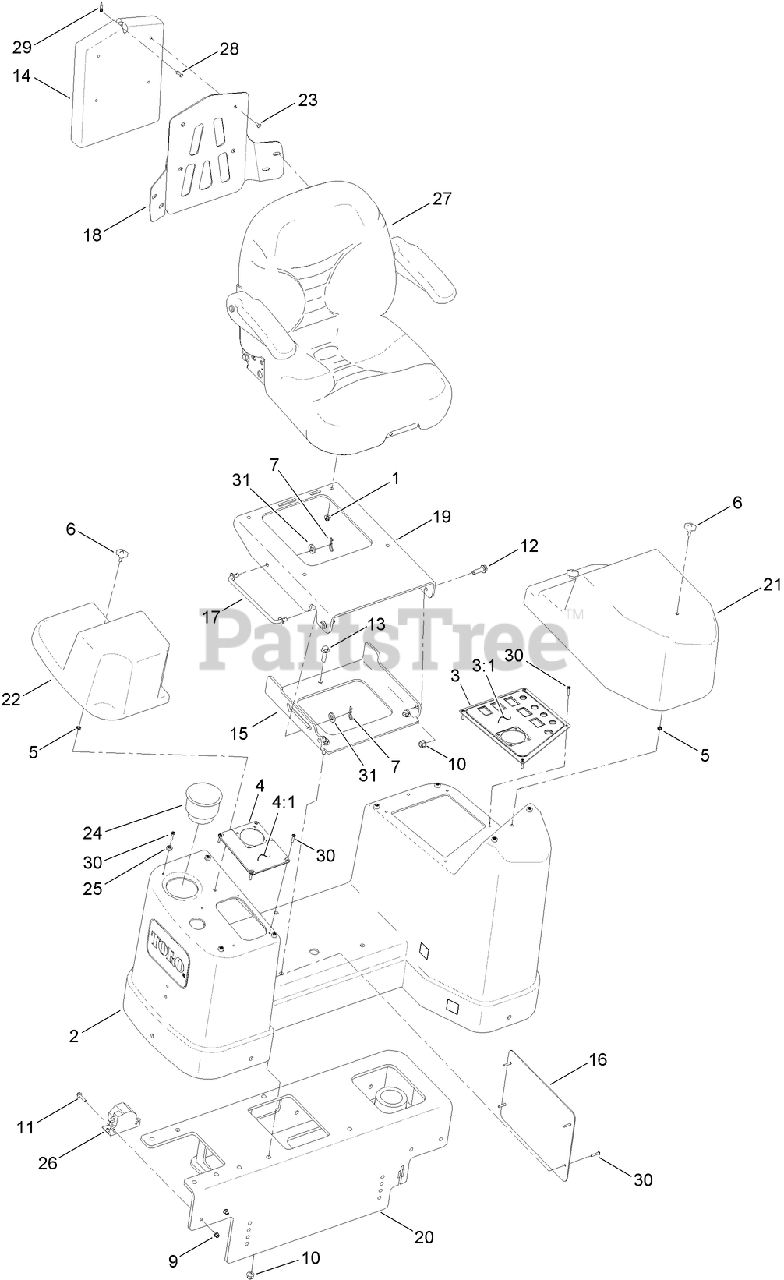

23825 (4045) - Toro Directional Drill (SN: 314000501 - 314999999) (2014) SEAT AND OPERATOR CONSOLE ASSEMBLY Parts Diagram

Directional Drill

SEAT AND OPERATOR CONSOLE ASSEMBLY Parts Diagram

  • Title
1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

2

Toro 127-0900

OPERATOR CONSOLE ASM

$

$

Currently unavailable

3

Toro 127-0901

SWITCH PLATE ASM

$

$

Currently unavailable

3:1

Toro 125-6112

DECAL-JOYSTICK, LEFT

$

$

Currently unavailable

4

Toro 127-0902

JOYSTICK MOUNTING PLATE ASM

$

$

Currently unavailable

4:1

Toro 125-6125

DECAL-JOYSTICK, RIGHT

$

$

Currently unavailable

5

Toro 104-8310

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

6

$5.49

$

In Stock, Qty 16

0

7

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

9

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

10

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

11

Toro 33103-030

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

12

Toro 33105-035

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

13

Toro 33105-040

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

14

Toro AU103216

HOLDER-MANUAL, OPERATOR

$71.99

$

Usually ships in 3-6 days

0

15

Toro AU108632-03

PLATE-SEAT MOUNT, BOTTOM

$

$

Not available

16

Toro AU108634-03

PLATE-SEAT, INSIDE PANEL

$

$

Not available

17

Toro AU109357

ROD-PROP, SEAT

$

$

Currently unavailable

18

Toro AU111717-03

PLATE-MOUNT, MANUAL

$

$

Not available

19

Toro AU117641-03

PLATE-SEAT MOUNT, TOP

$

$

Not available

20

Toro AU125016-03

CONSOLE-OPERATORS

$

$

Currently unavailable

21

Toro 130-4494

COVER-CONSOLE, LH

$

$

Not available

22

Toro 130-4495

COVER-CONSOLE, RH

$

$

Not available

23

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

24

Toro AU8EO24121

CUP-HOLDER

$3.49

$

Usually ships in 3-6 days

0

25

Toro AU8EO24122

GROMMET-RUBBER

$

$

Currently unavailable

26

Toro AU8EP29105

ALARM-BACKUP

$

$

Currently unavailable

27

Toro AU8EP47010

OPERATOR SEAT ASM (STATIC)

$

$

Currently unavailable

28

Toro AUR46463

POST-MANUAL

$1.99

$

Usually ships in 3-6 days

0

29

Toro AUR46465

LANYARD

$22.99

$

Usually ships in 3-6 days

0

30

Toro ST80070

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

31

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0
