23825 (4045) - Toro Directional Drill (SN: 314000501 - 314999999) (2014) LOWER OPERATOR PLATFORM ASSEMBLY Parts Diagram

Directional Drill

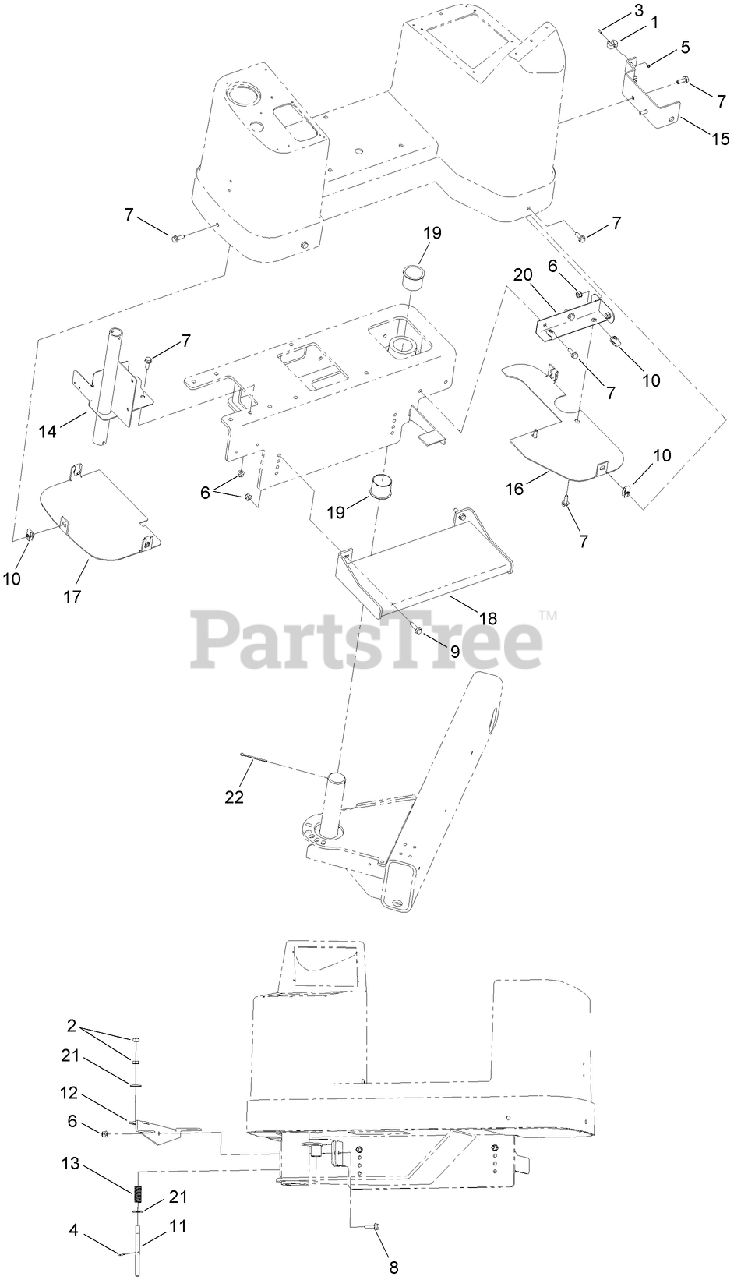

LOWER OPERATOR PLATFORM ASSEMBLY Parts Diagram

  • Title

1

Toro 110-5677

CLIP-SPRING

$9.99

$

Usually ships in 3-6 days

0

2

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

3

Toro 3249-3

SCREW-PRH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

5

Toro 32149-6

NUT-KEPS

$0.99

$

Usually ships in 3-6 days

0

6

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

7

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

8

Toro 33105-035

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

9

Toro 33105-040

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

10

Toro AU100863

NUT-U

$

$

Currently unavailable

11

Toro AU108909

ROD-SWING, SEAT

$

$

Currently unavailable

12

Toro AU108997-03

ARM-ADJUSTMENT, SEAT

$

$

Not available

13

Toro AU109011

SPRING-PIVOT LOCK, SEAT

$

$

Currently unavailable

14

Toro AU114805-03

MOUNT-UMBRELLA

$

$

Not available

15

Toro AU115236-03

PLATE-RETAINING, CORD

$

$

Not available

16

Toro AU125024-03

PLATE-GUARD, SPLASH

$

$

Currently unavailable

17

Toro AU125042-03

PLATE-GUARD, SPLASH

$

$

Currently unavailable

18

Toro AU12GB9202-03

STEP

$

$

Currently unavailable

19

Toro AU12GB9215

BEARING-FLANGED

$

$

Not available

20

Toro AU12GB9228-03

SUPPORT-SHROUD, LEFT

$

$

Not available

21

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU432-1248

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0
