23823 W (4045) - Toro Directional Drill with Cab (SN: 315000001 - 315999999) (2015) ROTARY ASSEMBLY NO. AU117215-03 Parts Diagram

Directional Drill with Cab

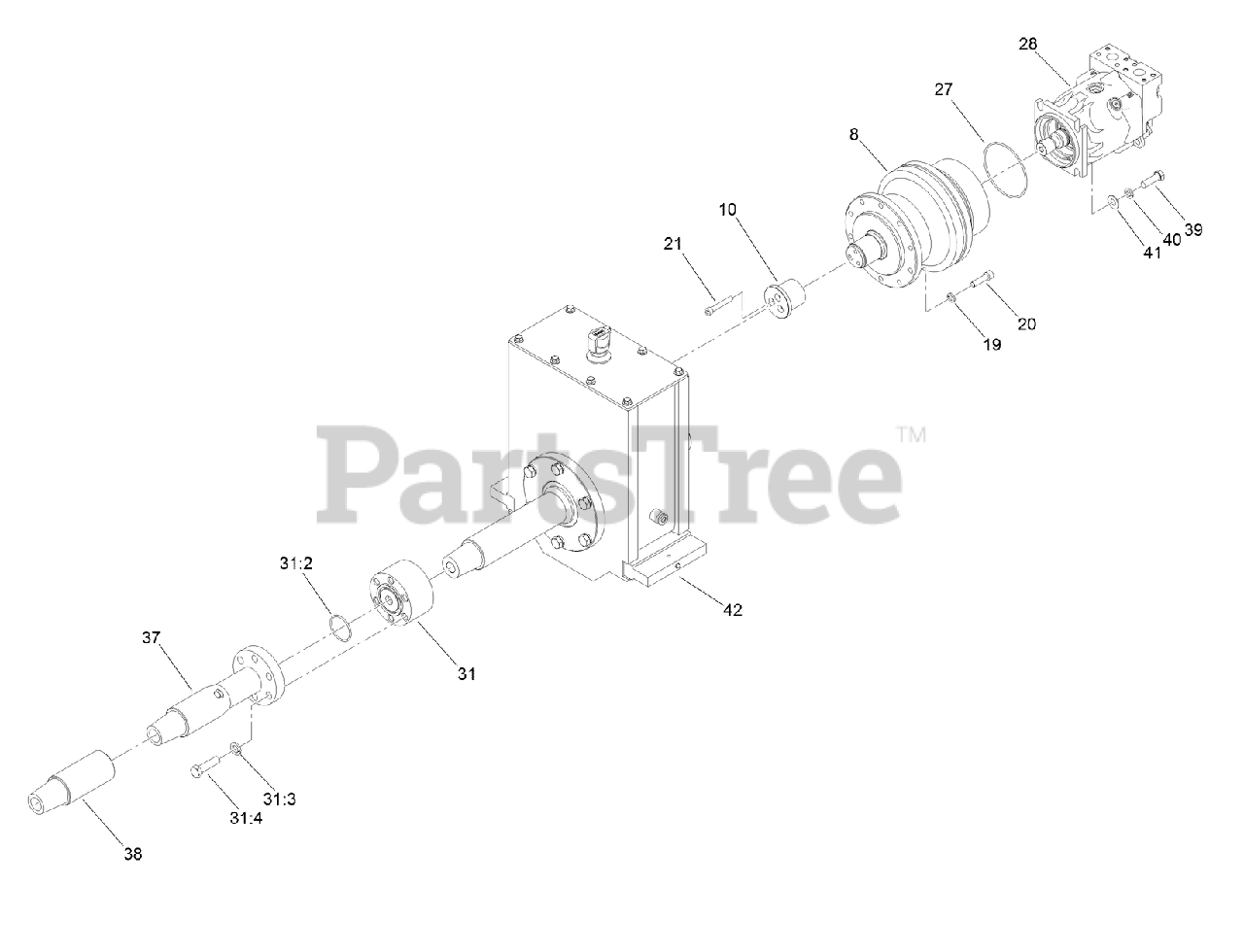

ROTARY ASSEMBLY NO. AU117215-03 Parts Diagram

  • Title
8

Toro AU8GB80064

PLANETARY GEARBOX ASM

$

$

Currently unavailable

10

Toro AU32GB4461

CAP-PINION, ROTARY

$

$

Currently unavailable

19

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro AU864-12045

SCREW-HSFH

$2.49

$

Usually ships in 3-6 days

0

21

Toro AU8SH95365

SCREW-HSH

$

$

Currently unavailable

27

Toro 104-1920

O-RING

$13.99

$

Usually ships in 3-6 days

0

28

Toro AU8HM50016

HYD MOTOR ASM

$

$

Currently unavailable

31

Toro AU114322

SPINDLE ASM

$

$

Not available

31:2

Toro AU114286

O-RING

$

$

Currently unavailable

31:3

Toro 69-8420

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

31:4

Toro AU120624

SCREW-HH

$

$

Currently unavailable

37

Toro AU119350

ADAPTER-FLANGE

$

$

Currently unavailable

38

Toro AU119351

SAVER ASM

$

$

Currently unavailable

39

Toro AU814-14045

SCREW-HH

$

$

Not available

40

$2.49

$

Usually ships in 3-6 days

0

41

Toro 69-8980

WASHER

$0.99

$

Usually ships in 3-6 days

0

42

Toro 136-8816

ROTARY BOX ASM

$

$

Currently unavailable
