23823 TE (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) TRAVEL PENDANT AND LIFE JACKET ASSEMBLY Parts Diagram

Directional Drill with Cab

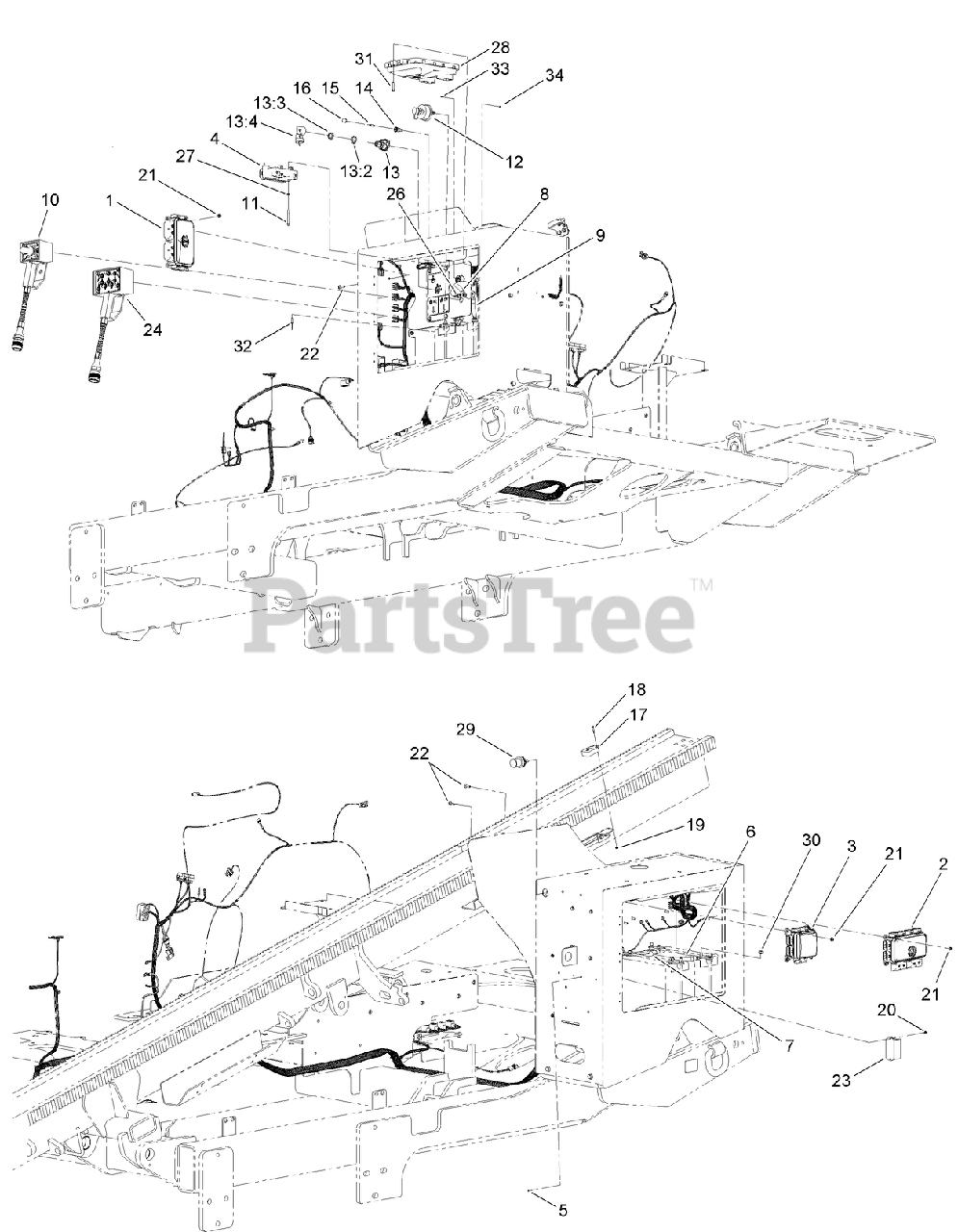

TRAVEL PENDANT AND LIFE JACKET ASSEMBLY Parts Diagram

  • Title

1

Toro AU119073

BOX-VEC, MAIN (A)

$

$

Currently unavailable

2

Toro AU119074

BOX-VEC, MAIN (B)

$

$

Currently unavailable

3

Toro AU119075

BOX-VEC, MAIN (C)

$

$

Currently unavailable

4

Toro AU117892

COMPUTER-EXPANDER, OUTPUT

$

$

Not available

5

Toro 3250-17

SCREW-PPH

$2.99

$

Usually ships in 3-6 days

0

6

Toro 122-0105

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

7

Toro 122-0106

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

8

Toro 122-0091

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

9

Toro 122-0092

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

10

Toro 125-1629

TRAVEL PENDANT ASM

$

$

Not available

11

Toro AU100315

SCREW-FLANGE, METRIC

$1.99

$

Usually ships in 3-6 days

0

12

Toro AUR52278

SWITCH-DISCONNECT, MASTER

$169.99

$

Usually ships in 3-6 days

0

13

Toro 121-5159

IGNITION SWITCH ASM

$129.99

$

In Stock, only 2 left!

0

13:2

Toro 121-5160

NUT-HEX

$121.99

$

Usually ships in 3-6 days

0

13:3

Toro 121-5161

NUT-FACE
(Superseded to 122-2704)

$2.49

$

Usually ships in 0 days

0

13:4

Toro 121-5162

IGNITION KEY SET

$36.99

$

Usually ships in 3-6 days

0

14

Toro AU8EO21401

TYPE T-2 SOCKET ASM

$

$

Currently unavailable

15

Toro 122-0224

LAMP-LED

$

$

Currently unavailable

16

Toro AU8EO21406

LENS-DOME, FLUTED AMBER (TYPE T2)

$

$

Currently unavailable

17

Toro AU8EP65159

SWITCH-PROXIMITY

$

$

Currently unavailable

18

Toro 9107964

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

21

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

22

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

23

Toro AU115133

CONNECTOR-PACK, RESISTOR

$

$

Currently unavailable

24

Toro 125-1628

LIFE JACKET ASM

$

$

Not available

26

Toro 122-0084

HARNESS-WIRE, FUSIBLE LINK

$588.99

$

Usually ships in 3-6 days

0

27

Toro 33093-00

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

28

Toro AU117890

CONTROLLER ASM (88 PIN, UNPROGRAMMED)

$

$

Currently unavailable

29

Toro AU105186

POST-BATTERY, REMOTE

$89.99

$

Usually ships in 3-6 days

0

30

Toro 32149-10

NUT-KEPS

$3.49

$

Usually ships in 3-6 days

0

31

Toro 33103-030

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

32

Toro 3269-28

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

33

Toro 1-3153

SCREW-PRH, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

34

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0
