23823 TE (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) ROTARY ASSEMBLY NO. AU117215 Parts Diagram

Directional Drill with Cab

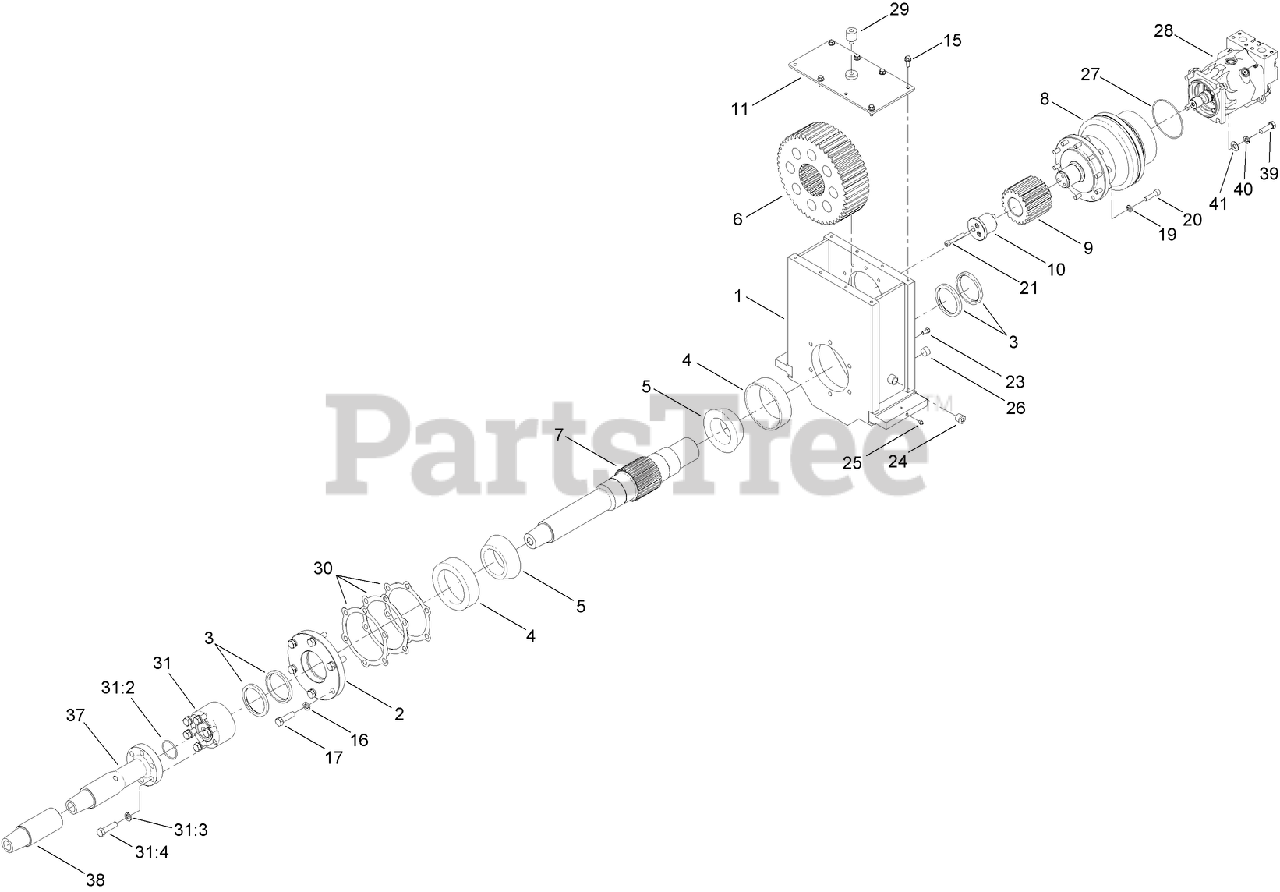

ROTARY ASSEMBLY NO. AU117215 Parts Diagram

  • Title
1

Toro 125-6144

BOX-ROTARY

$

$

Currently unavailable

2

Toro AU32GB4412

CAP-BEARING, ROTARY

$

$

Currently unavailable

3

Toro AU8HS13033

SEAL-SHAFT

$

$

Currently unavailable

4

Toro AU8CF63007

CUP-BEARING

$

$

Currently unavailable

5

Toro AU8CF63008

CONE-BEARING

$

$

Currently unavailable

6

Toro AU32GB4465

GEAR-RING, ROTARY

$

$

Currently unavailable

7

Toro AU32GB4420

SPINDLE-ROTARY

$

$

Currently unavailable

8

Toro AU8GB80064

PLANETARY GEARBOX ASM

$

$

Currently unavailable

9

Toro AU32GB4460

PINION-ROTARY

$

$

Currently unavailable

10

Toro AU32GB4461

CAP-PINION, ROTARY

$

$

Currently unavailable

11

Toro 130-4512-03

COVER-BOX, ROTARY

$

$

Currently unavailable

15

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

16

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

17

Toro AU8HH51510

SCREW-HH

$

$

Currently unavailable

19

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro AU864-12045

SCREW-HSFH

$2.49

$

Usually ships in 3-6 days

0

21

Toro AU8SH95365

SCREW-HSH

$

$

Currently unavailable

23

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

24

Toro AU8PP70008

PLUG-SITE, GLASS

$

$

Currently unavailable

25

Toro 302-52

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

0

26

Toro AU8PP75012

PLUG-MAGNETIC, HEX

$

$

Currently unavailable

27

Toro 104-1920

O-RING

$13.99

$

Usually ships in 3-6 days

0

28

Toro AU8HM50016

HYD MOTOR ASM

$

$

Currently unavailable

28:1

Toro AU434335A1

SHAFT SEAL KIT

Note: Not illustrated

$

$

Not available

29

Toro 115-9793

BREATHER

$77.99

$

In Stock, only 1 left!

0

30

Toro AU8SM02002

SHIM-BEARING ADJUST (.020)

$

$

Currently unavailable

30

Toro AU8SM00702

SHIM-BEARING ADJUST (.007)

$

$

Currently unavailable

30

Toro AU8SM00502

SHIM-BEARING ADJUST (.005)

$

$

Currently unavailable

31

Toro AU114322

SPINDLE ASM

$

$

Not available

31:2

Toro AU114286

O-RING

$

$

Currently unavailable

31:3

Toro 69-8420

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

31:4

Toro AU120624

SCREW-HH

$

$

Currently unavailable

37

Toro AU119350

ADAPTER-FLANGE

$

$

Currently unavailable

38

Toro AU119351

SAVER ASM

$

$

Currently unavailable

39

Toro AU814-14045

SCREW-HH

$

$

Not available

40

$2.49

$

Usually ships in 3-6 days

0

41

Toro 69-8980

WASHER

$0.99

$

Usually ships in 3-6 days

0
