23823 TE (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) CAB ELECTRICAL ASSEMBLY Parts Diagram

Directional Drill with Cab

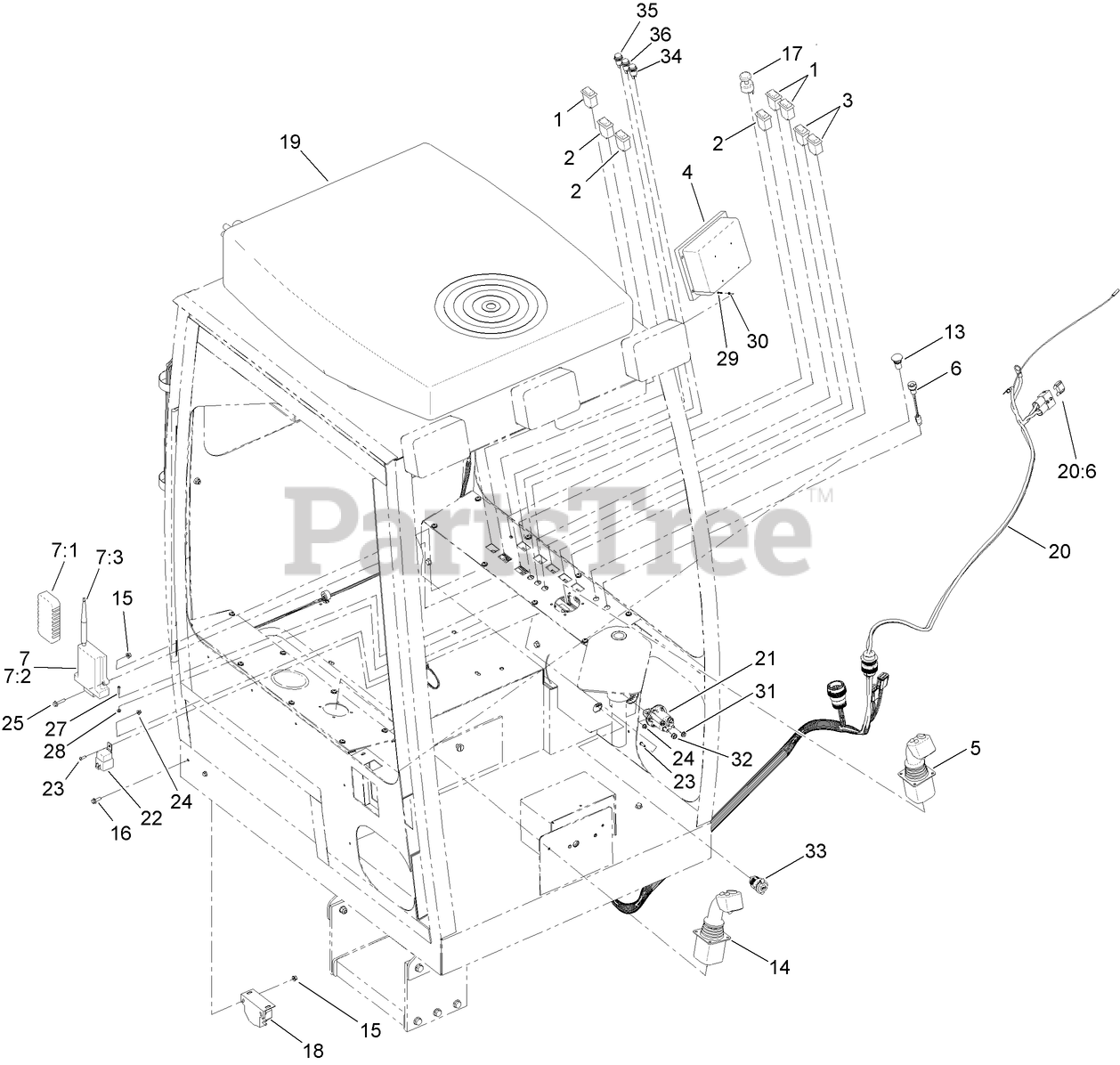

CAB ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro AU113662

SWITCH-ROCKER, 2 POLE (ON/OFF)

$

$

Currently unavailable

2

Toro AU113664

SWITCH-ROCKER, 2 POLE

$36.99

$

In Stock, only 1 left!

0

3

Toro AU113665

SWITCH-ROCKER, 1 POLE (ON)OFF/ON(OFF)

$

$

Currently unavailable

4

Toro AU103384

DISPLAY-DP600, UNPROGRAMMED
(Superseded to 132-4181)

$11128.99

$

Usually ships in 3-6 days

0

5

Toro AU117962

JOYSTICK-MODIFIED (LEFT HAND)

$

$

Currently unavailable

6

Toro 121-6592

SWITCH-START, GREEN BUTTON

$

$

Currently unavailable

7

Toro 130-4454

LONG RANGE EXIT SIDE LOCKOUT KIT

$

$

Not available

7:1

Toro 130-4455

HANDHELD-LOCKOUT

$

$

Not available

7:2

Toro 130-4456

BASE UNIT-LOCKOUT

$

$

Not available

7:3

Toro 130-4462

ANTENNA-LOCKOUT

$

$

Currently unavailable

13

Toro AU8EP46103

BUTTON-PUSH, RED MUSHROOM

$

$

Currently unavailable

14

Toro AU8EP47613

JOYSTICK-CARRIAGE

$

$

Currently unavailable

15

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

16

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

17

Toro AU30-1260-5588

SWITCH-WIPER

$

$

Currently unavailable

18

Toro AU8EP29105

ALARM-BACKUP

$

$

Currently unavailable

19

Toro 122-0074

HARNESS-WIRE, CAB

$

$

Currently unavailable

20

Toro 122-0287

HARNESS-WIRE, CAB POWER

$

$

Currently unavailable

20:6

Toro 114-3342

FUSE-MAXI, 60 AMP

$9.49

$

Usually ships in 3-6 days

0

21

Toro 114-3315

SOLENOID

$127.99

$

Usually ships in 3-6 days

0

22

Toro 99-7430

RELAY

$23.99

$

Usually ships in 3-6 days

0

23

Toro 119-7568

SCREW-HSBH

$2.49

$

Usually ships in 3-6 days

0

24

Toro 120-4580

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

25

Toro 33103-030

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

27

Toro 119-7444

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

28

Toro 127-2018

NUT-HHF

$13.99

$

Usually ships in 3-6 days

0

29

Toro 1-3153

SCREW-PRH, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

30

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

31

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

32

Toro 121-4698

NUT-KEPS

$1.99

$

Usually ships in 3-6 days

0

33

Toro 109-9376

RECEPTACLE-12V

$47.99

$

Usually ships in 3-6 days

0

34

Toro 131-0038

LAMP-INDICATOR, LED

$

$

Currently unavailable

35

Toro 131-0039

LAMP-INDICATOR, LED

$

$

Not available

36

Toro 131-0040

LAMP-INDICATOR, LED

$

$

Not available
