23823 C (4045) - Toro Directional Drill with Cab (SN: 315000001 - 315999999) (2015) HYDRAULIC CYLINDER ASSEMBLY NO. AU8HC10007 Parts Diagram

Directional Drill with Cab

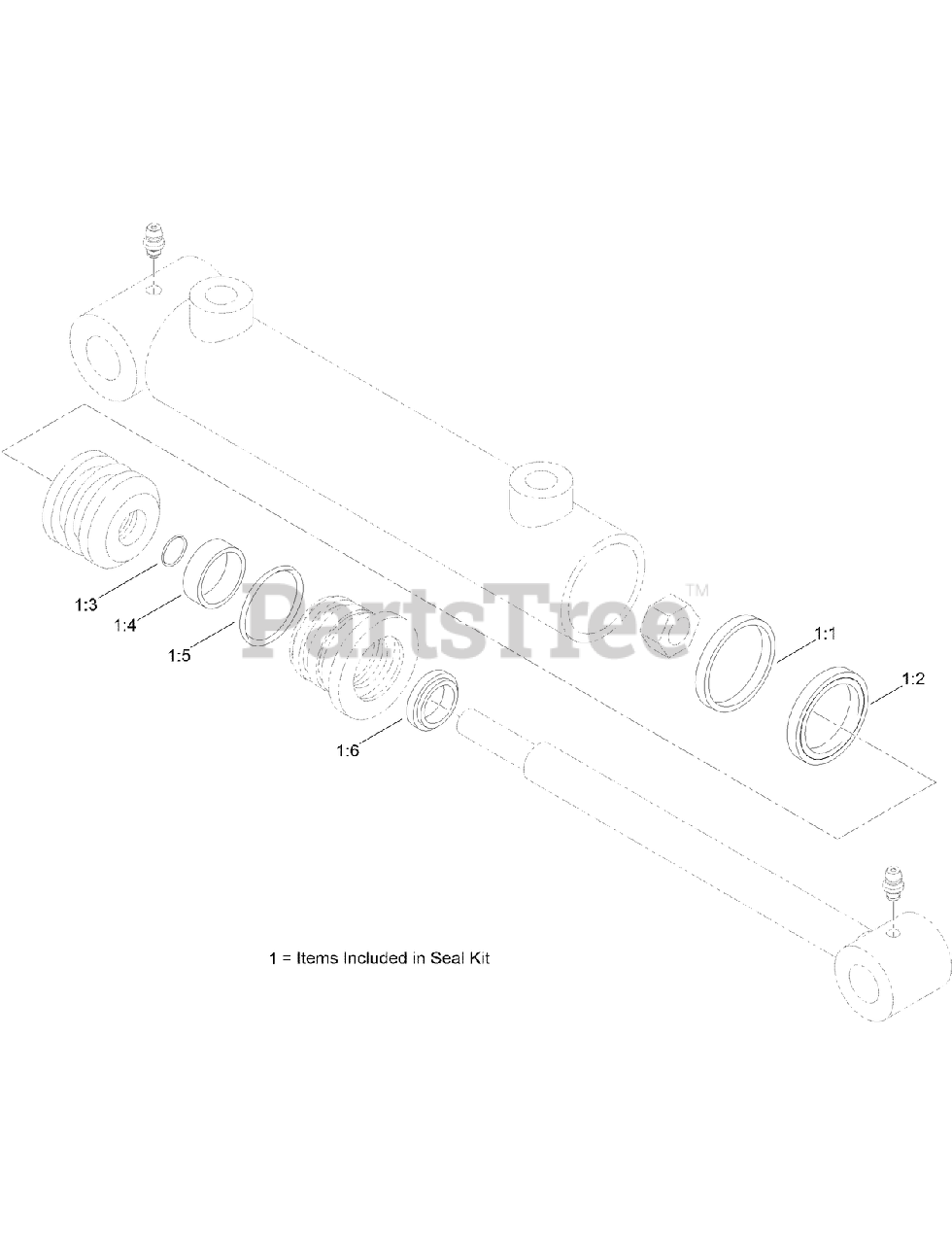

HYDRAULIC CYLINDER ASSEMBLY NO. AU8HC10007 Parts Diagram

  • Title
1

$

$

Currently unavailable

1:1

RING-WEAR

Note: Not serviced separately

$

$

Not available

1:2

Seal-Psp

Note: Not serviced separately

$

$

Not available

1:3

O-RING

Note: Not serviced separately

$

$

Not available

1:4

O-RING

Note: Not serviced separately

$

$

Not available

1:5

Seal-Polypak

Note: Not serviced separately

$

$

Not available

1:6

Wiper-Rod

Note: Not serviced separately

$

$

Not available
