23823 (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) THRUST FRAME HOSE CARRIER ASSEMBLY Parts Diagram

Directional Drill with Cab

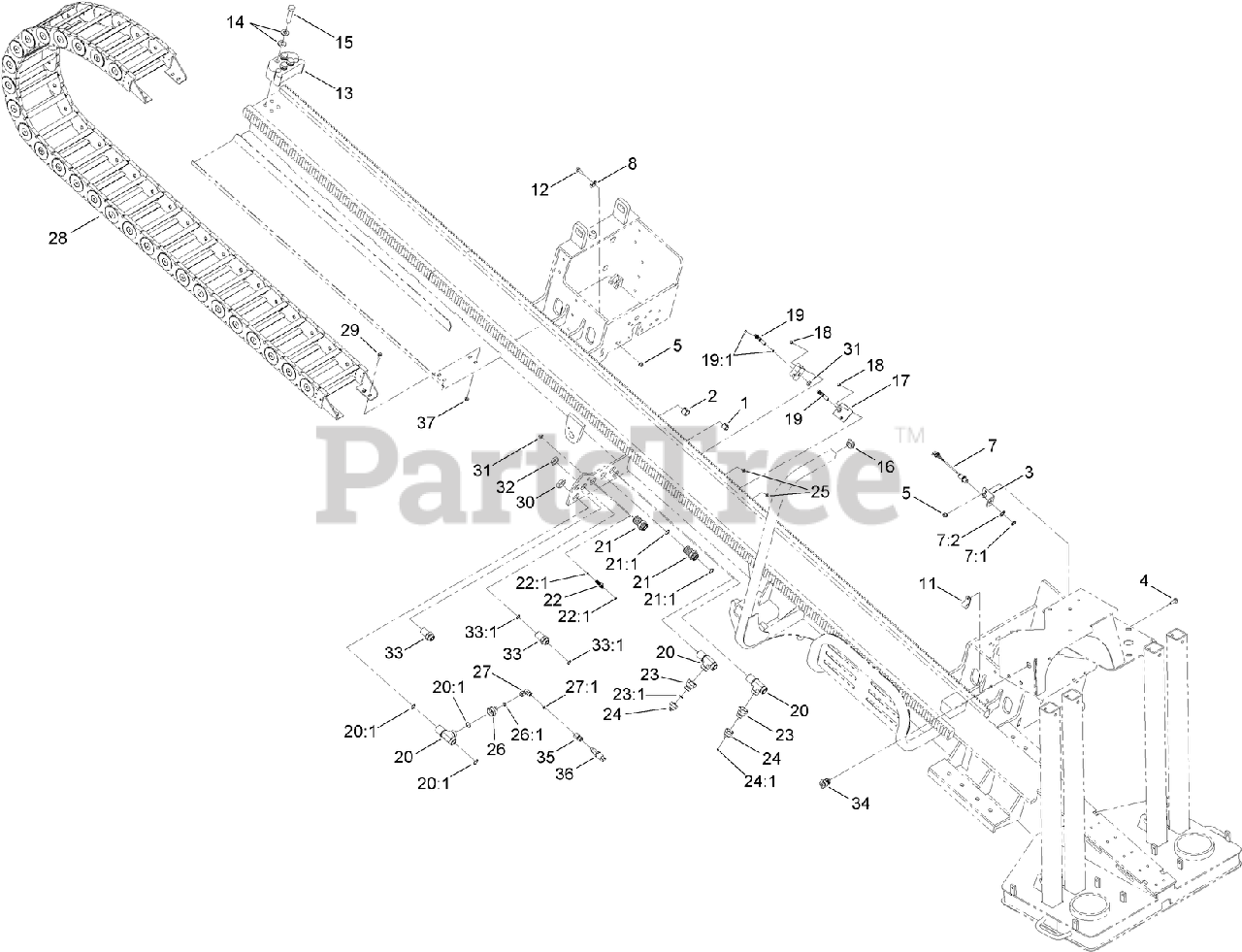

THRUST FRAME HOSE CARRIER ASSEMBLY Parts Diagram

  • Title

1

Toro AU109676

BUSHING-SPRING

$

$

Currently unavailable

2

Toro AU125808

BUSHING-SPRING

$

$

Currently unavailable

3

Toro 121-7532

BRACKET-SWITCH

$

$

Currently unavailable

4

Toro 33105-035

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

5

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

7

Toro 115-5300

PROXIMITY SWITCH ASM

$148.99

$

In Stock, only 1 left!

0

7:1

Toro 117-3207

NUT-HEX

$17.99

$

Usually ships in 3-6 days

0

7:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

Usually ships in 3-6 days

0

8

Toro 2412-138

R-CLAMP

$1.99

$

Usually ships in 3-6 days

0

11

Toro 2412-71

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

12

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

13

Toro AU32GB2011-03

STOP-CARRIAGE, REAR FRAME

$

$

Currently unavailable

14

Toro AU496-11081

WASHER

$0.99

$

Usually ships in 3-6 days

0

15

Toro AU426-1256

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

16

Toro AU8PP92001

CAP-SQUARE, PLASTIC

$

$

Currently unavailable

17

Toro AU124863-03

PLATE-MOUNT

$

$

Currently unavailable

18

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

19

Toro AU8OR90404

FITTING-TEE

$

$

Not available

19:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

20

Toro AU8OR91616

FITTING-TEE, BULKHEAD

$

$

Currently unavailable

20:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

21

Toro 106-0060

ADAPTER-HYD

$117.99

$

Usually ships in 3-6 days

0

21:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

22

Toro 94-1444

UNION-BULKHEAD

$48.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

23

Toro AU8OA81216

FITTING-REDUCER

$

$

Currently unavailable

23:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

24

Toro AU8OA80412

FITTING-REDUCER

$

$

Not available

24:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

25

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

26

Toro AU8OA80816

FITTING-REDUCER

$

$

Not available

26:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

27

Toro 94-6031

FITTING-HYD

$81.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

28

Toro AU119010

CARRIER-HOSE, 36 LINKS

$

$

Currently unavailable

29

Toro 33104-025

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

30

Toro 340-128

NUT-BULKHEAD

$8.49

$

Usually ships in 3-6 days

0

31

Toro 340-78

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

32

Toro 340-126

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

33

Toro 94-2637

FITTING-HYD

$92.99

$

Usually ships in 3-6 days

0

33:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

34

Toro 109-9376

RECEPTACLE-12V

$47.99

$

Usually ships in 3-6 days

0

35

Toro 127-0887

FITTING-STRAIGHT

$

$

Currently unavailable

36

Toro 125-6578

TRANSDUCER (W/ISOLATOR)

$1813.99

$

Usually ships in 3-6 days

0

37

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0
