23823 (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) OPERATOR CAB ASSEMBLY NO. 1 Parts Diagram

Directional Drill with Cab

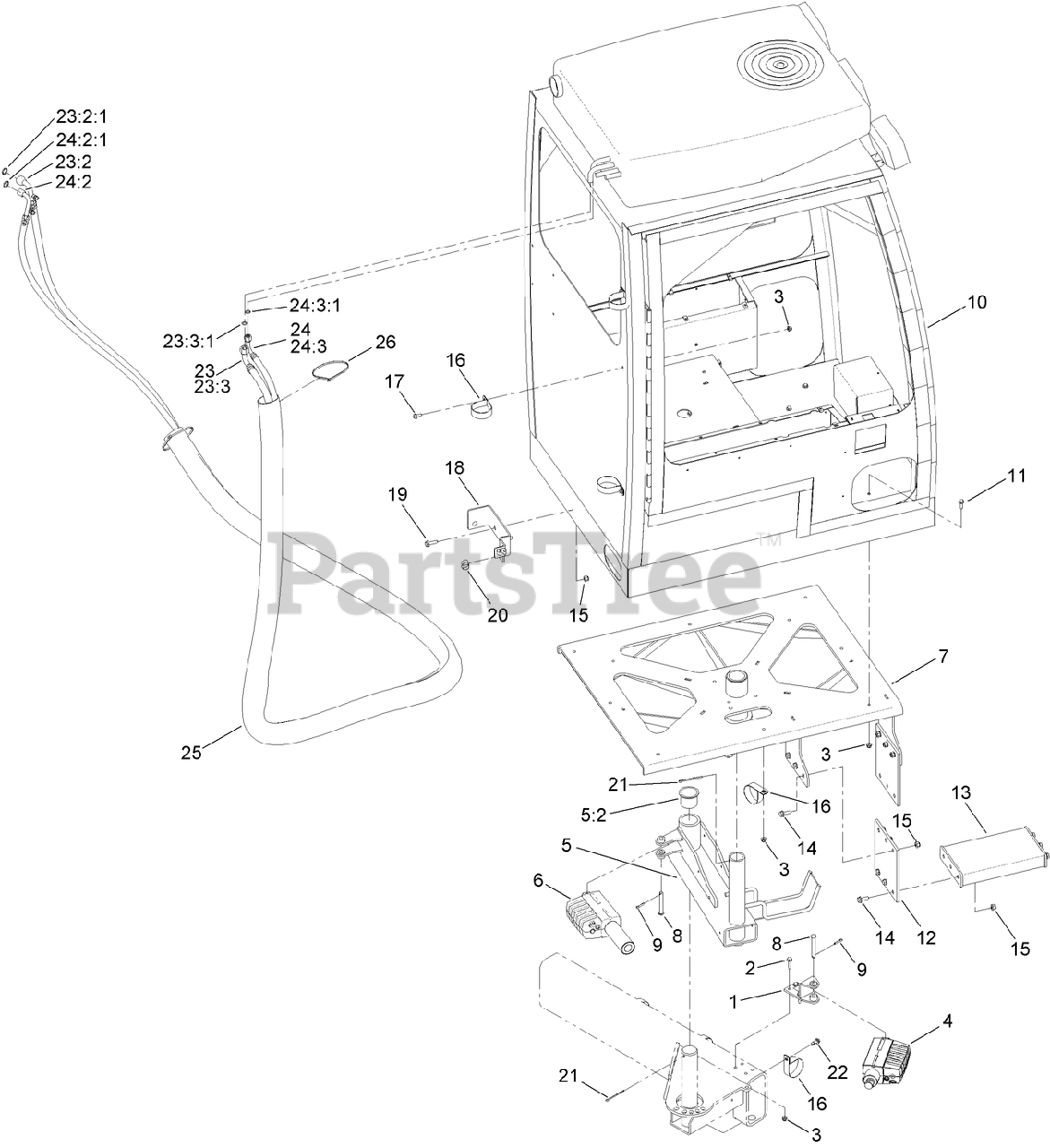

OPERATOR CAB ASSEMBLY NO. 1 Parts Diagram

  • Title

1

Toro AU124541-03

BRACKET-CAB

$

$

Currently unavailable

2

Toro 33104-035

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

3

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro AU124529

12V ELECTRIC CYLINDER ASM

$

$

Not available

5

Toro AU124550

CAB PIVOT ASM

$

$

Currently unavailable

5:2

Toro AU12GB9215

BEARING-FLANGED

$

$

Not available

6

Toro AU125653

12V ELECTRIC CYLINDER ASM (8IN)

$

$

Not available

7

Toro 125-6524

CAB MOUNT ASM

$

$

Currently unavailable

8

Toro AU439-1856

PIN-SPRING

$

$

Currently unavailable

9

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

10

Toro AU124581

OPERATOR CAB ASM

$

$

Currently unavailable

10:10

Toro 133-9616

GASKET-DOOR

Note: Not illustrated

$

$

Currently unavailable

10:11

Toro 133-9617

TRIM-EDGE, VINYL

Note: Not illustrated

$

$

Currently unavailable

10:12

Toro 133-9618

GASKET-WINDOW

Note: Not illustrated

$

$

Currently unavailable

10:13

Toro 133-9619

STUD-BALL

Note: Not illustrated

$

$

Currently unavailable

10:14

Toro 133-9620

SPRING-GAS

Note: Not illustrated

$

$

Currently unavailable

10:15

Toro 133-9621

SOCKET-SPRING, GAS

Note: Not illustrated

$

$

Currently unavailable

10:16

Toro 133-9622

DOOR WINDOW ASM

Note: Not illustrated

$

$

Currently unavailable

10:17

Toro 133-9623

RH LATCH KIT

Note: Not illustrated

$

$

Currently unavailable

10:18

Toro 133-9624

TRIM-EDGE, VINYL

Note: Not illustrated

$

$

Currently unavailable

10:19

Toro 136-6949

KEY-REPLACEMENT

Note: Not illustrated

$

$

Currently unavailable

10:1

Toro 133-9607

LEFT SIDE WINDOW ASM

Note: Not illustrated

$

$

Currently unavailable

10:2

Toro 133-9608

WINDOW-SLIDING, REAR

Note: Not illustrated

$

$

Currently unavailable

10:3

Toro 133-9609

FRONT WINDOW ASM

Note: Not illustrated

$

$

Currently unavailable

10:4

Toro 133-9610

GASKET-HEADLAMP

Note: Not illustrated

$

$

Currently unavailable

10:5

Toro 133-9611

BLADE-WIPER

Note: Not illustrated

$

$

Currently unavailable

10:6

Toro 133-9612

ARM-WIPER

Note: Not illustrated

$

$

Currently unavailable

10:7

Toro 133-9613

HEADLAMP-HALOGEN

Note: Not illustrated

$

$

Currently unavailable

10:8

Toro 133-9614

MOTOR-WIPER, WJ

Note: Not illustrated

$

$

Currently unavailable

10:9

Toro 133-9615

ARM-DRIVE

Note: Not illustrated

$

$

Currently unavailable

11

Toro 33104-025

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

12

Toro AU101442

STRAP-SUPPORT, STEP

$

$

Currently unavailable

13

Toro AU125595-03

STEP

$

$

Currently unavailable

14

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

15

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

16

Toro AU91-900729-15

CLAMP-SUPPORT

$

$

Currently unavailable

17

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

18

Toro AU115236-03

PLATE-RETAINING, CORD

$

$

Not available

19

Toro 33105-035

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

20

Toro 110-5677

CLIP-SPRING

$9.99

$

Usually ships in 3-6 days

0

21

Toro AU432-1248

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 105-6245

Screw-Tapping

$5.99

$

Usually ships in 3-6 days

0

23

Toro 130-4491

HOSE ASM

$

$

Currently unavailable

23:2

FITTING-90 DEG, FEMALE

Note: Not serviced separately

$

$

Not available

23:2:1

Toro 117-2780

O-RING

$5.49

$

Usually ships in 3-6 days

0

23:3

FITTING-90 DEG, FEMALE

Note: Not serviced separately

$

$

Not available

23:3:1

Toro 117-2780

O-RING

$5.49

$

Usually ships in 3-6 days

0

24

Toro 130-4492

HOSE ASM-AC

$

$

Currently unavailable

24:2

FITTING-90 DEG, FEMALE

Note: Not serviced separately

$

$

Not available

24:2:1

Toro 117-2779

O-RING

$6.49

$

Usually ships in 3-6 days

0

24:3

FITTING-90 DEG, FEMALE

Note: Not serviced separately

$

$

Not available

24:3:1

Toro 117-2779

O-RING

$6.49

$

Usually ships in 3-6 days

0

25

Toro 130-4515

SLEEVE-PROTECTIVE

$

$

Currently unavailable

26

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
