23823 (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) MAIN FRAME AND STABLIZER ASSEMBLY Parts Diagram

Directional Drill with Cab

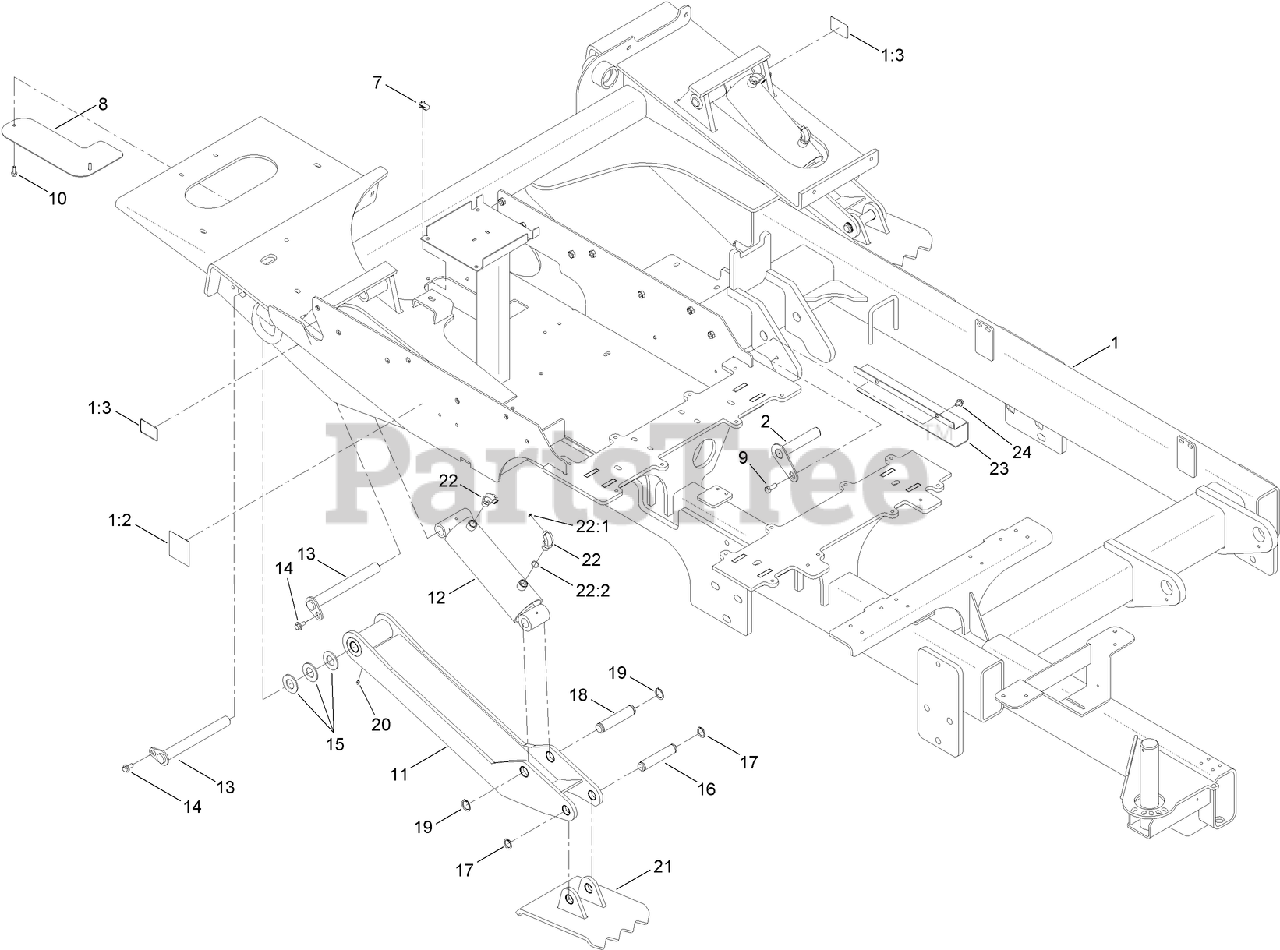

MAIN FRAME AND STABLIZER ASSEMBLY Parts Diagram

  • Title

1

Toro 127-0923

FRAME ASM

$

$

Currently unavailable

1:2

Toro 125-6107

DECAL-WARNING, CRUSHING

$

$

Currently unavailable

1:3

Toro 125-6139

DECAL-LIFT/TIE DOWN

$

$

Currently unavailable

2

Toro AU111271

PIN-DIPPER CYLINDER TO BOOM

$

$

Not available

7

Toro AU100862

NUT-U

$4.99

$

Usually ships in 3-6 days

0

8

Toro AU122040-03

COVER-VALVE, 5 SECTION

$

$

Currently unavailable

9

Toro 106-0378

SCREW-HH

$4.99

$

In Stock, Qty 5

0

10

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

11

Toro AU116295-03

STABILIZER

$

$

Currently unavailable

12

Toro AU116285

HYD CYLINDER ASM

$

$

Currently unavailable

13

Toro AU116290

PIN-W/FLAG

$

$

Currently unavailable

14

Toro 33106-025

SCREW-HHF

$

$

Not available

15

Toro AU496-11131

WASHER-HARDENED

$

$

Currently unavailable

16

Toro AUH434379

PIN (STABILIZER PAD END)

$

$

Currently unavailable

17

Toro AU103-16112

RING-RETAINING
(Superseded to 100-6785)

$4.99

$

Usually ships in 3-6 days

0

18

Toro AUH434380

PIN-STABILIZER (CYLINDER ROD END)

$

$

Currently unavailable

19

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

Usually ships in 3-6 days

0

20

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

21

Toro AU120109-03

FOOT-STABILIZER

$

$

Currently unavailable

22

Toro 340-130

FITTING-ELBOW 90

$135.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

22:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

23

Toro AU130072-03

PLATE-GUARD, WIRE HARNESS

$

$

Currently unavailable

24

Toro 33105-016

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0
