23823 (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) FUEL TANK AND HOSE ASSEMBLY Parts Diagram

Directional Drill with Cab

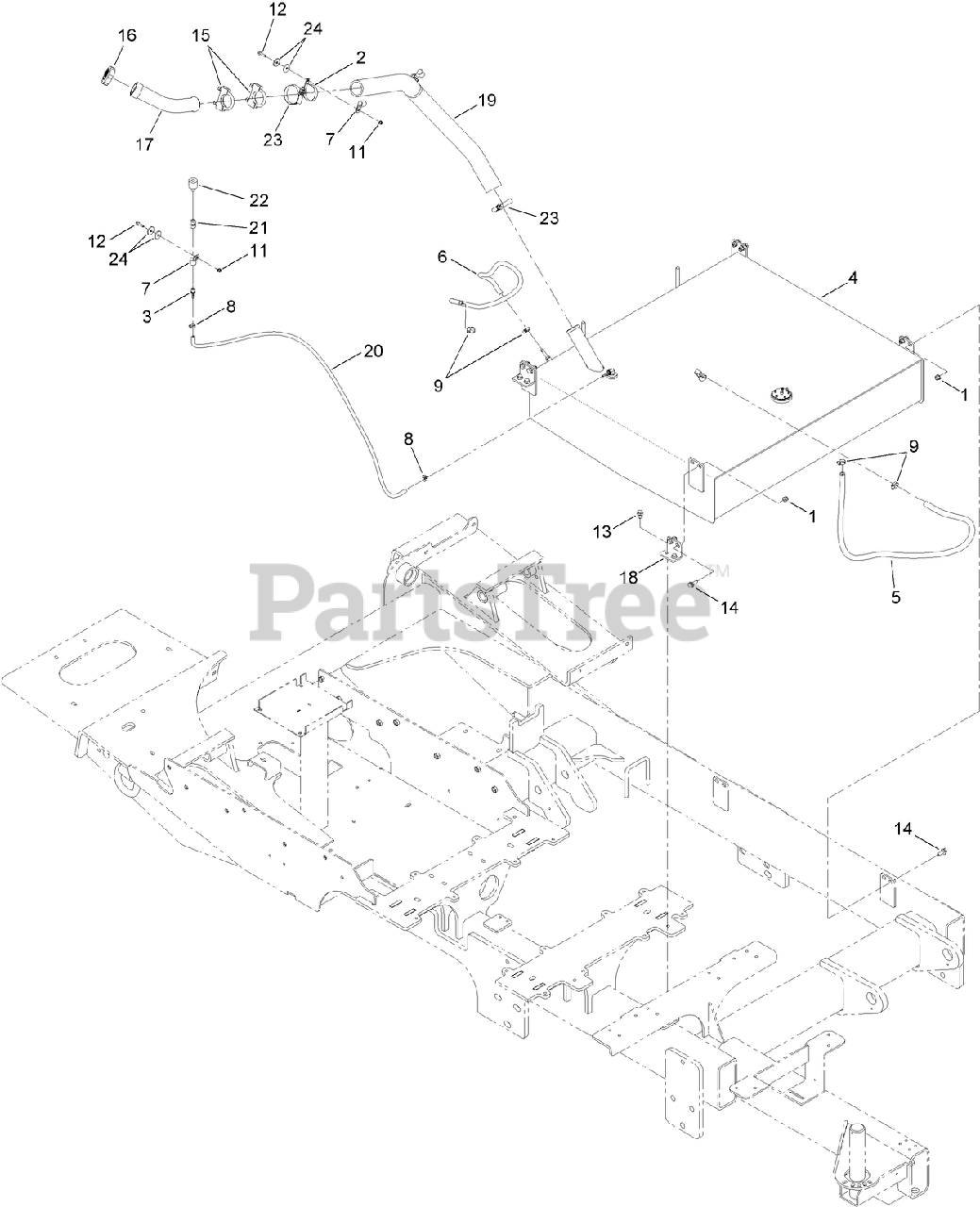

FUEL TANK AND HOSE ASSEMBLY Parts Diagram

  • Title

1

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

2

Toro 107-1865

R-Clamp

$11.99

$

Usually ships in 3-6 days

0

3

Toro 115-1447

FITTING-STRAIGHT

$10.99

$

Usually ships in 3-6 days

0

4

Toro 121-7535

FUEL TANK ASM

$

$

Currently unavailable

5

Toro 127-0945

HOSE-FUEL

$

$

Currently unavailable

6

Toro 127-0946

HOSE-FUEL

$48.99

$

Usually ships in 3-6 days

0

7

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

8

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

9

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

11

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

12

Toro 33103-030

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

13

Toro 33105-020

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

14

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

15

Toro AU111838

BOLT-U, CLAMP

$

$

Currently unavailable

16

Toro AU117630

CAP-FUEL (W/LOCK)

$

$

Currently unavailable

17

Toro AU118832

NECK-FILLER, FUEL

$

$

Currently unavailable

18

Toro AU119508-03

PLATE-MOUNTING, TANK

$

$

Currently unavailable

19

Toro AU124968

HOSE-FUEL, TANK FILL

$

$

Currently unavailable

20

Toro 107-9298

HOSE-FUEL

$51.99

$

Usually ships in 3-6 days

0

21

Toro AU217-1101

COUPLING-PIPE (NPTF)

$5.99

$

Usually ships in 3-6 days

0

22

Toro AU31543

BREATHER

$453.99

$

Usually ships in 3-6 days

0

23

Toro 104-9240

Clamp-Hose

$49.99

$

Usually ships in 3-6 days

0

24

Toro 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 20+

0
